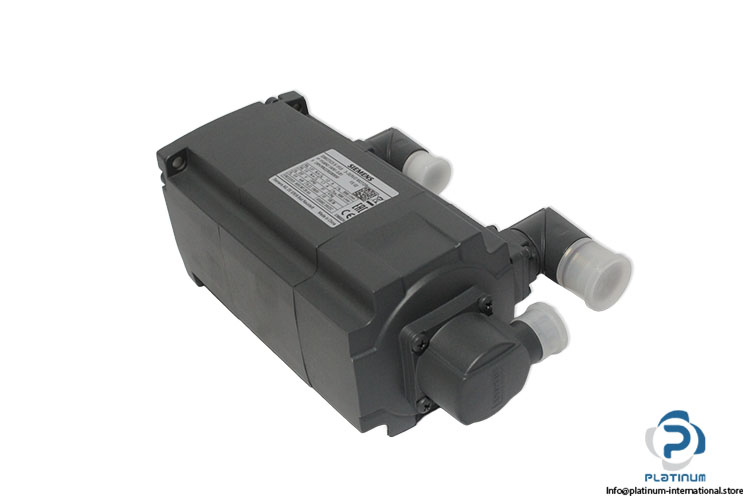

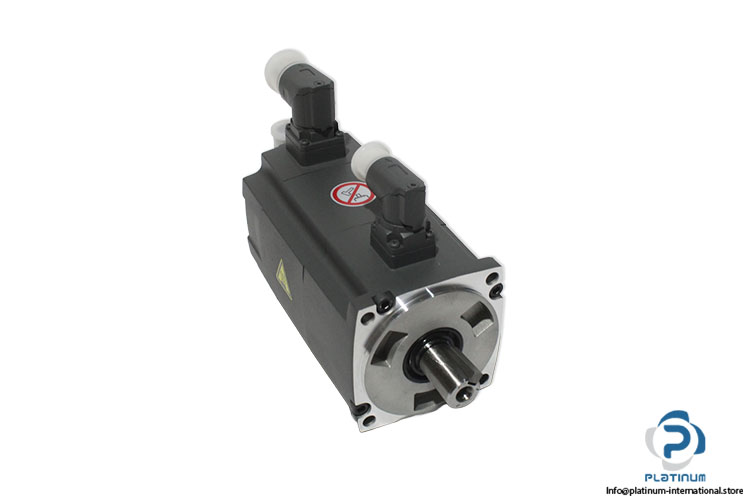

Siemens 1FL6042-1AF61-2LB1 Servo Motor
New
In stock1 unitReady to ship
Servo Motor Industrial SIEMENS servo motor with 3000 rpm rated speed, integrated encoder, and IP65 protection for high-precision motion control and automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

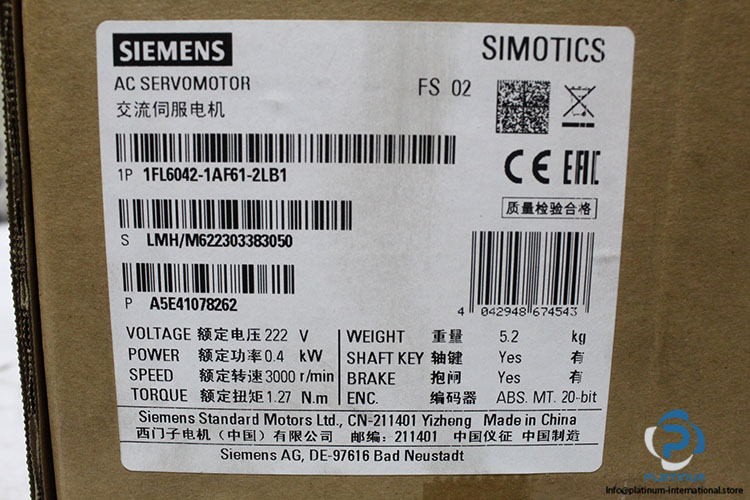

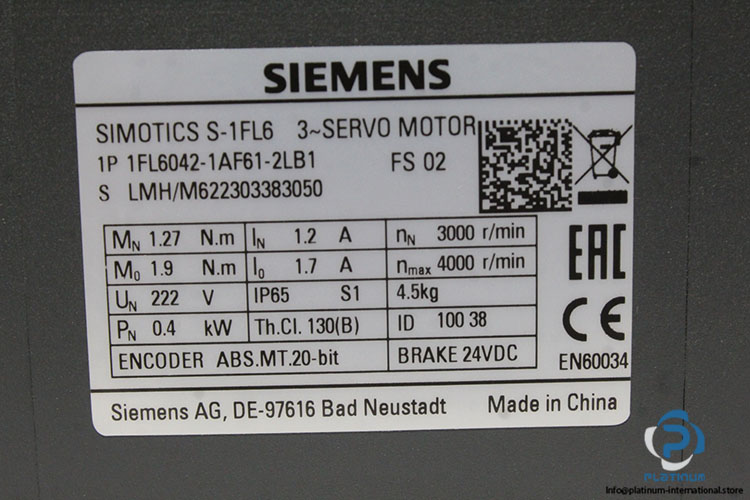

| MNR | 1FL6042-1AF61-2LB1 |
| Family | SIMOTICS |
| SN. | LMH/M622303383050 |
| FS | 02 |
| Ref no | A5E41078262 |
| Rated Voltage | 222 v |
| Rated speed | 3,000 rpm |
| Rated torque (100 K) | 1.27 Nm |
| Rated current | 1.2 A |
| Rated power | 0.40 kW / 0.54 hp |
| Max. speed | 4,000 rpm |
| Max. current | 3.6 A |
| Static torque | 1.90 Nm |
| Moment of inertia | 3.200 kgcm² |
| Torque constant | 1.10 Nm/A |
| Thermal class | B (130 °C) |
| Ambient temperature, Operation | 0 … 40 °C |
| Compliance with standards | CE, EAC |
| Shaft height | 45 |
| Encoder system | Absolute encoder 20 bit + 12 bit multiturn Cooling : Natural cooling |
| Shaft end | Feather key |
| Radial runout tolerance | Class N |
| Vibration severity grade | Grade A |
| Degree of protection | IP65 |
| Design acc. to Code I | IM B5 (IM V1, IM V3) |

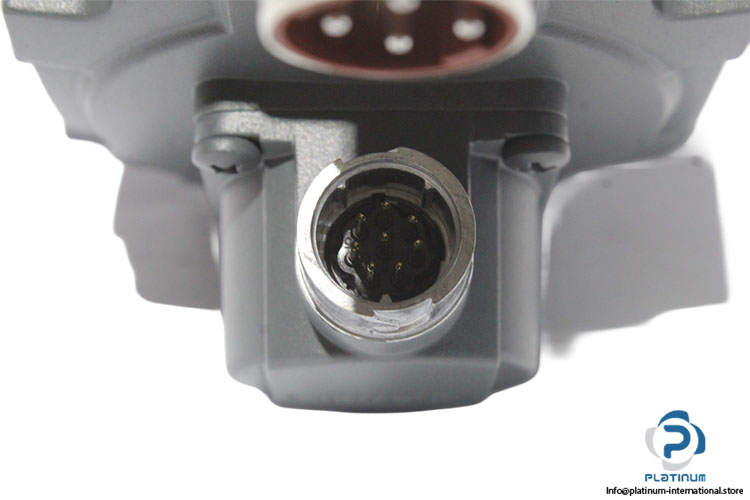

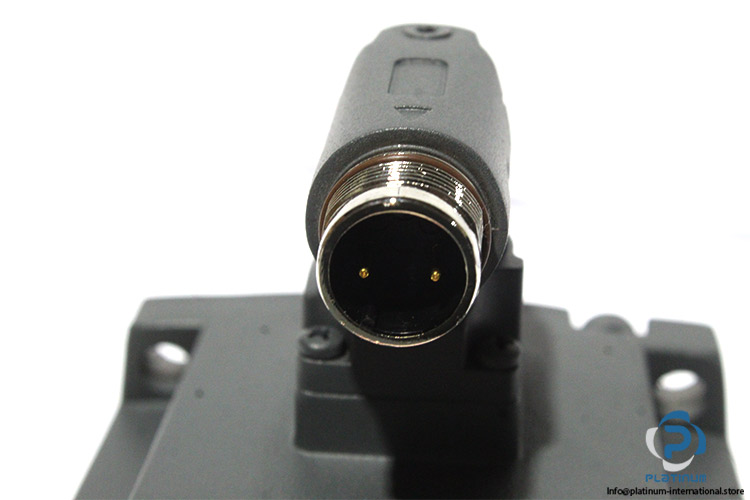

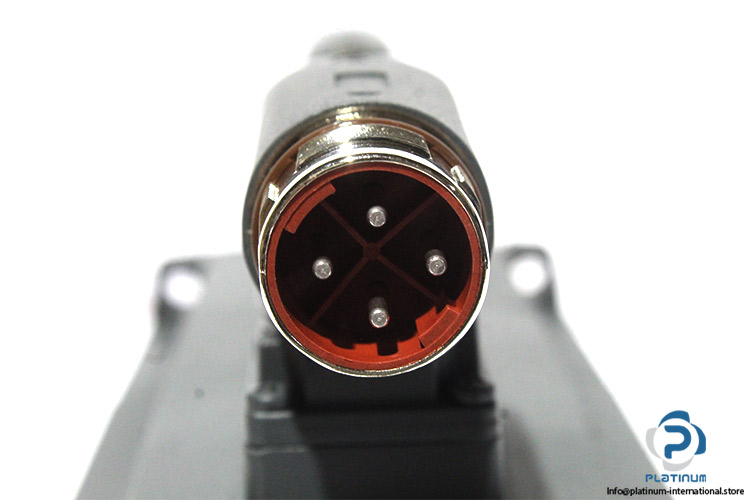

| Connection type | Angular connector (rotatable) |
| Max. operation | 90 % RH maximum (no condensation at 30 °C) |
| Holding torque M4Br | 3.50 Nm |
| Rated voltage,Brake | 24 V DC 10 % |
| Opening time | 60 ms |
| Closing time | 45 ms |
| Duty | S1 |
| Attached ENCODER | ABS.MT.20-bit |
| Connection | Circular connector |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1100395 |
| Weight | 5,8 |
