Siemens 1FT5042-1AF71-3EA0 AC Servo Motor
New
Available on request
700,00$
AC SERVO MOTOR
High-efficiency Siemens AC servo motor offering up to 10 Nm torque, 345 V input, and 5500 rpm speed, built for precision automation with IP64 protection and IM B5 mounting.ACAutomationB5ControlDriveDynamicHighIMIndustrialIP64MagnetMotionmotormountPermanentProtectionServoSiemensSpeed
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

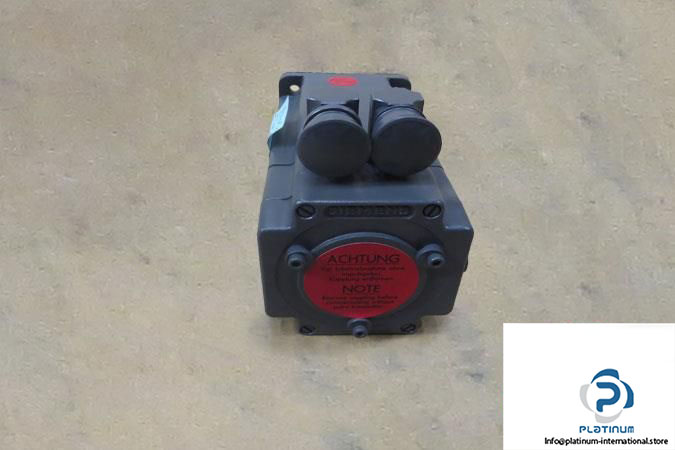

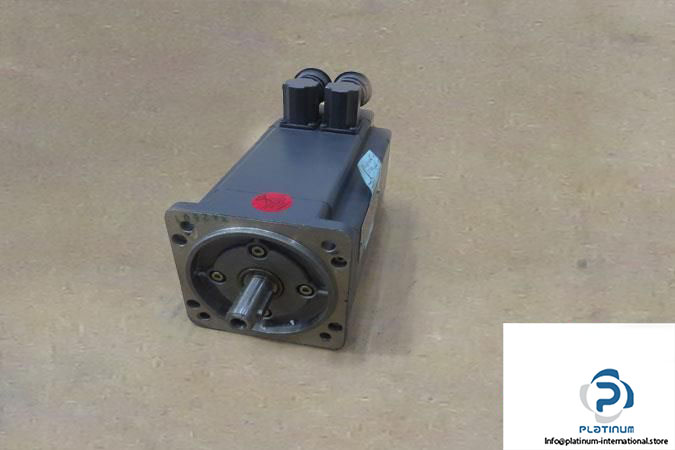

SIEMENS 1FT5042-1AF71-3EA0 AC SERVO MOTOR
The Siemens 1FT5042-1AF71-3EA0 is a high-performance AC permanent magnet servo motor designed for dynamic motion control in demanding industrial applications. Built for precision, speed, and reliability, this servo motor ensures optimal performance in automated systems and machinery.

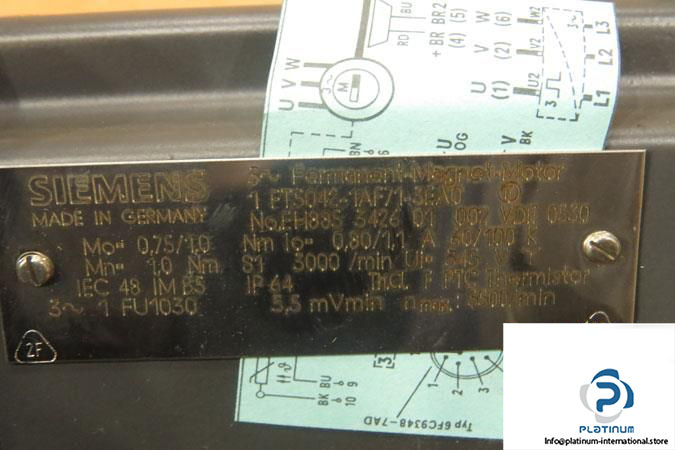

Manufacturer: Siemens
Type: AC Permanent Magnet Servo Motor
Model: 1FT5042-1AF71-3EA0
Part No.: H885 3426 01 002
| Voltage | 345 V |
| Torque | 0.75/10 Nm Standstill; 1.0 Nm Rated |
| Current | 0.8/1.1 A Standstill |
| Rotational Speed | 3000 rpm Rated; 5500 rpm Max |
| Protection Class | IP64 |
| Mounting Position | IM B5 |
| Positive Temperature Coefficient | Thermistor |
| Ambient Temperature | 40 °C |
| Insulation Class | Class F |
| Motor Frame Size | IEC 48 |
| Tacho Generator | 1FU1030 |
| Constant Voltage | 5.5 mV/min |
