Siemens 1FT5044-0AF01-1-Z AC Servo Motor
1 000,00$
AC BRUSHLESS SERVOMOTOR

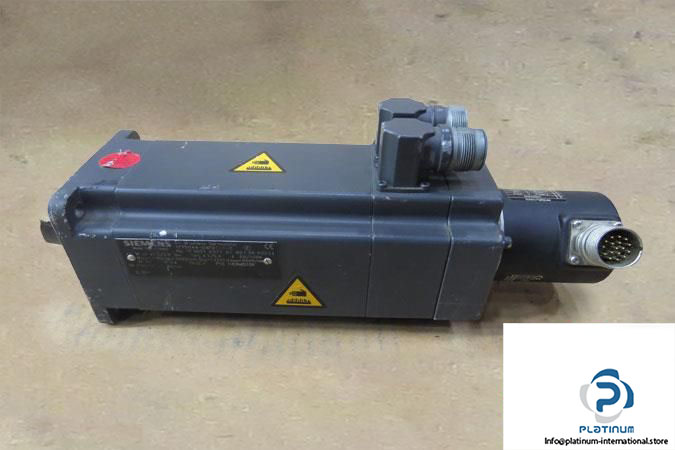

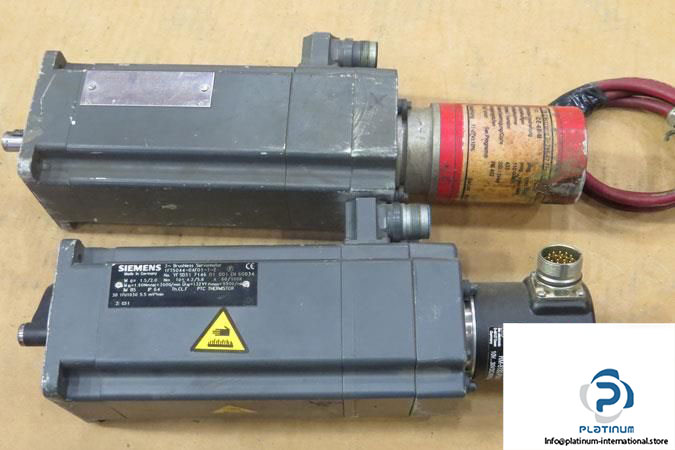

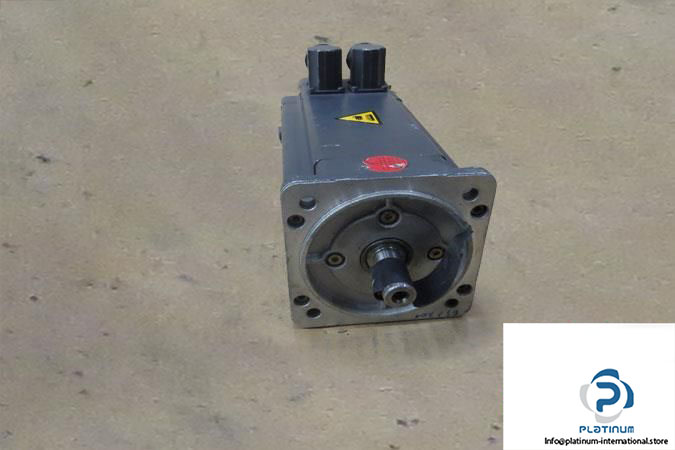

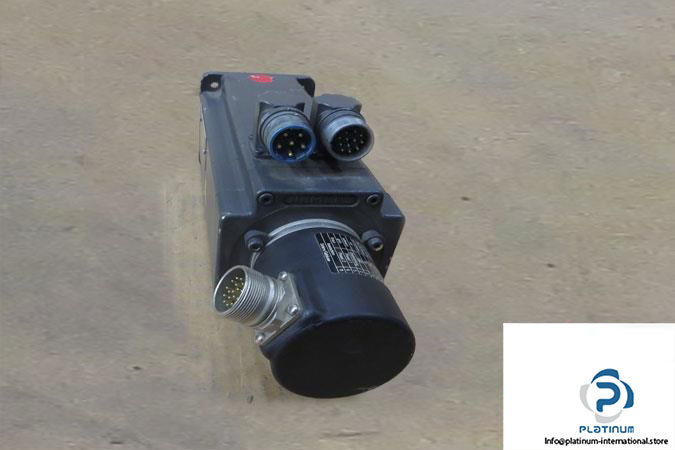

SIEMENS 1FT5044-0AF01-1-Z AC brushless servomotor with 1.9 Nm rated torque, 3000 rpm speed, and IP64 protection. Includes IFM and TR Electronic absolute encoders for enhanced performance and control.SIEMENS 1FT5044-0AF01-1-Z AC BRUSHLESS SERVOMOTOR
The Siemens 1FT5044-0AF01-1-Z is a robust AC brushless servomotor engineered for high-performance industrial automation systems. It offers precision torque and speed control, and comes equipped with two high-resolution encoders for enhanced feedback and system integration.
Manufacturer: SIEMENS
Type: AC Brushless Servomotor
Model: 1FT5044-0AF01-1-Z
No yf: SD31 7146 01 001

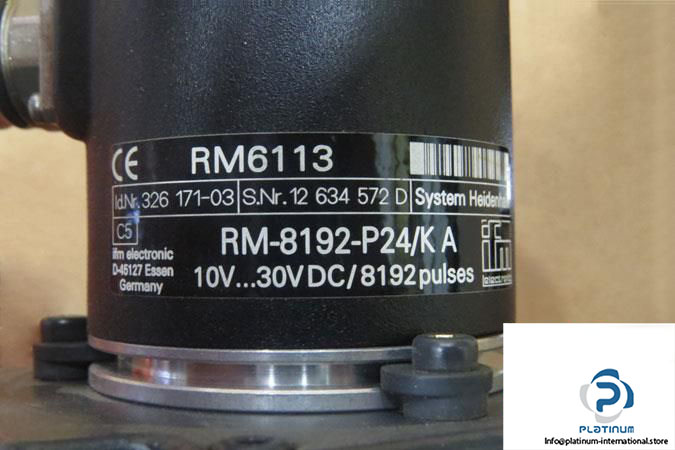

Attached Encoder 1 – IFM RM6113 Absolute Multiturn Encoder

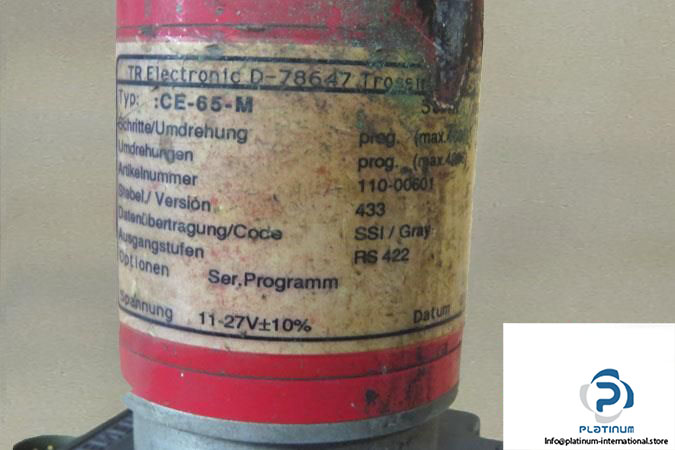

Attached Encoder 2 – TR Electronic CE 65 M Absolute Encoder
This product is ideal for integration into advanced control systems, and is compatible with servo motor systems and sensor-based applications.

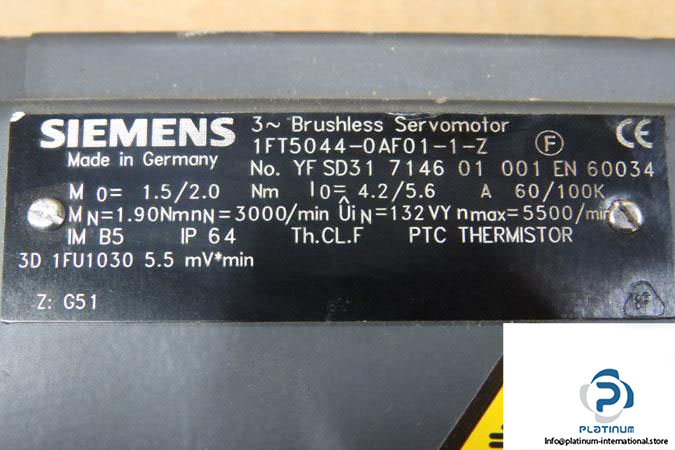

| Voltage | 132 V |
| Standstill Torque | 1.5/2.0 Nm |
| Rated Torque | 1.9 Nm |
| Standstill Current | 4.2/5.6 A |
| Rated Speed | 3000 rpm |
| Max Speed | 5500 rpm |
| Protection Class | IP64 |
| Mounting Position | IM B5 |
| Temperature Sensor | Positive Temperature Coefficient Thermistor |
| Ambient Temperature | 40 °C |
| Insulation Class | Class F |
| Tachometer | Siemens 1FU1030, 5.5 mV/min |
| MRN | RM6113 |
| Part No. | 326 171-03 |
| Shaft Diameter | 6 mm |
| Operating Voltage | 10…30 VDC |
| Current Consumption | <300 mA |
| Max Revolution (Electrical) | 6000 U/min |
| Ambient Temperature | -20…70 °C |
| Protection Class | IP64 |
| Pulses | 8192 |
| Material | Aluminum |
| Art. No | 110-00601 |
| Version | 433 |
| Shaft Diameter | 10 mm |
| Resolution | 4096 steps/rev (12-bit) |
| Voltage Supply | 11 … 27 VDC |
| Output Code | Programmable (binary, Gray) |
| Baud Rate | 300 kbps net |
| Encoder Interface | Two-wire remote bus for INTERBUS-S, RS422 |
| Data Refresh | 0.5 ms |
| Temperature | 0 … 60 °C |
