Siemens 1FT5044-0AH01-1-Z Permanent Magnet Motor

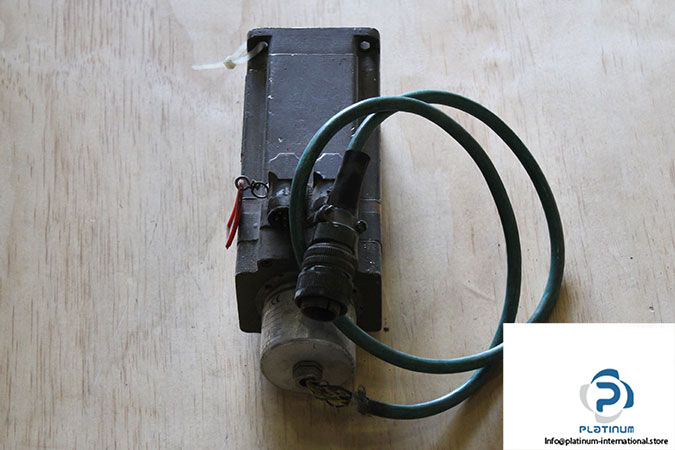

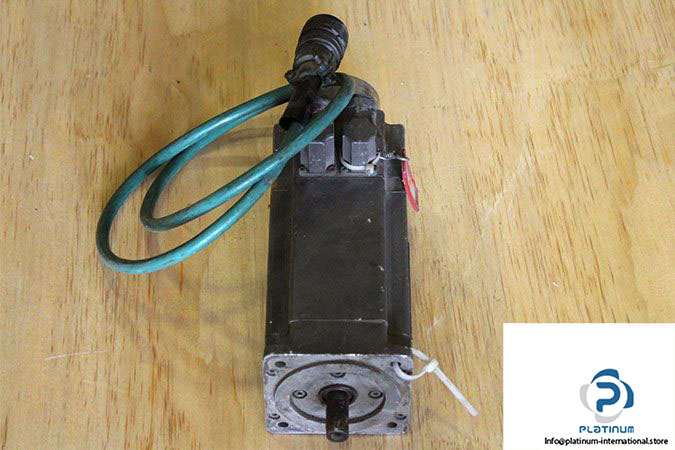

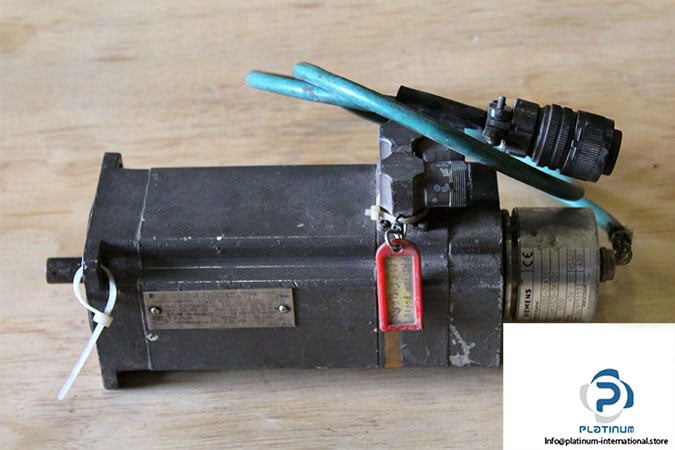

SIEMENS 1FT5044-0AH01-1-Z PERMANENT MAGNET MOTOR WITH INCREMENTAL ENCODER

This high-performance permanent magnet motor from Siemens offers consistent power and reliability, making it suitable for automation systems requiring precise motion control. It includes a factory-attached incremental encoder for accurate feedback in dynamic operations.

Manufacturer: Siemens
Type: Permanent Magnet Motor
Product ID: 1FT5044-0AH01-1-Z
No. YF: 9D95 5351 02 001

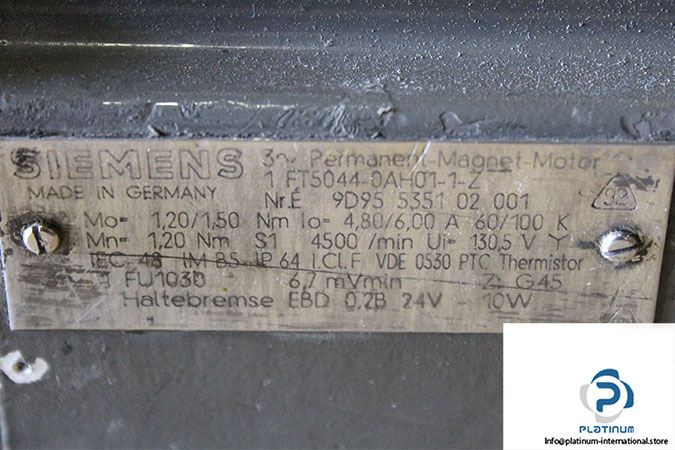

Motor Technical Specifications

• Rated Voltage: 130.5 V Y
• Stall Current: 4.80 / 6.00 A
• Rated Speed: 4500 min^-1
• Rated Torque: 1.20 Nm
• Stall Torque: 1.20 / 1.50 Nm
• Duty: S1
• Insulation Class: F
• Protection Class: IP64

Brake Unit

• Type: EBD 0.2B
• Brake Voltage: 24 V
• Brake Power: 10 W

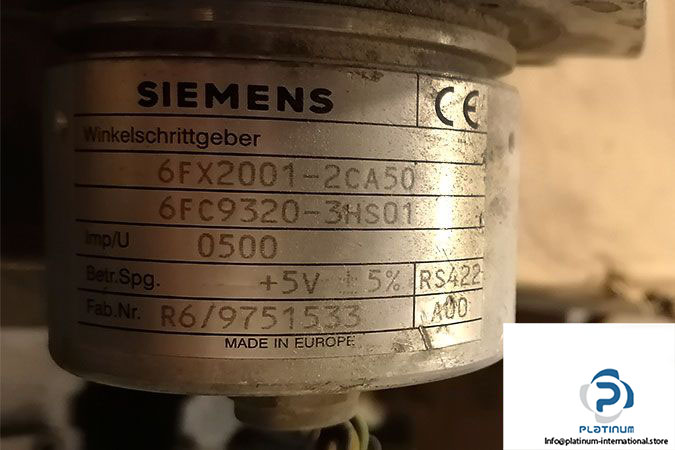

Incremental Encoder Specifications

• Manufacturer: Siemens
• Type: Incremental Encoder
• Model: 6FX2001-2CA50 / 6FC9320-3HS01
• Ref No.: R6/9751533
• Operating Voltage: 5 VDC
• Consumed Current: 150 mA
• Incremental Resolution: 500
• Max Speed: 12000 1/min
• Shaft Length: 10 mm
• Ambient Temperature: -40 / 100 °C
• Protection Class: IP64
