Siemens 1FT50661AF713EB0 Permanent Magnet Motor With Encoder
Used
In stock1 unitReady to ship
790,00$
SIEMENS SERVO MOTOR WITH STEGMANN ENCODER
Powerful 3-phase permanent magnet servo motor with 6.5“8 Nm torque, 369 V input, and 4900 RPM max speed. Includes Stegmann T21104002110 high-resolution encoder with IP64 protection, perfect for precision motion applications.1FT50661AF713EB034096ControlDriveEncoderHighIndustrialIP64MagnetMotionmotorPermanentPhaseServoSiemensStegmannStepT21104002110Torque
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

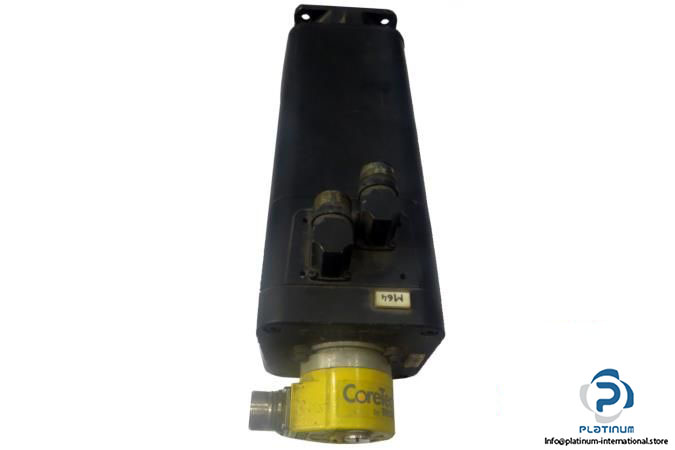

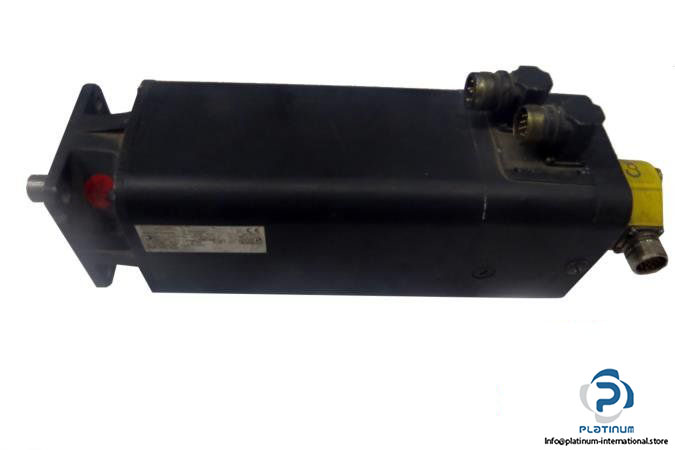

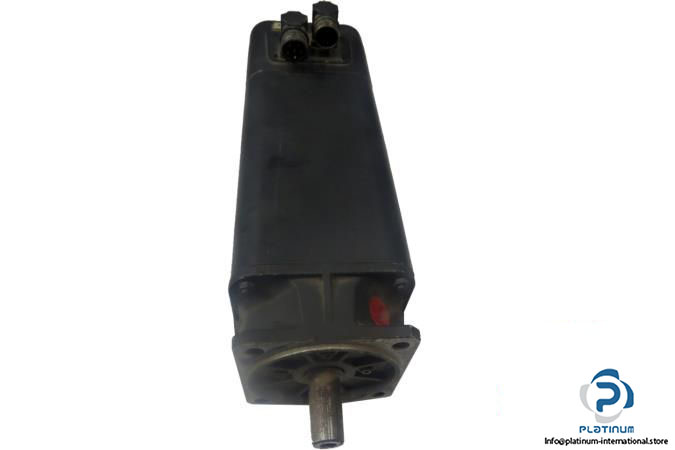

SIEMENS 1FT50661AF713EB0 SERVO MOTOR WITH STEGMANN ENCODER
The Siemens 3 Phase Permanent Magnet Servo Motor is engineered for dynamic performance in industrial automation. This motor is integrated with a high-precision Stegmann T21104002110 Encoder for accurate motion control. Built for reliability and efficiency, it™s ideal for applications requiring high-speed response, excellent torque stability, and robust environmental protection.

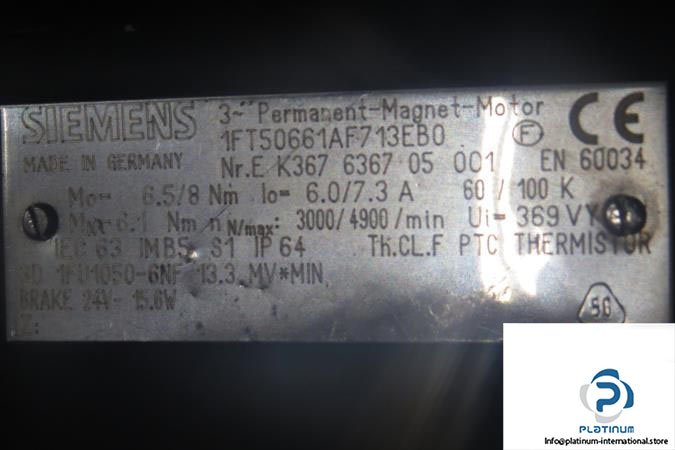

Motor Details
- Manufacturer: Siemens
- Type: 3 Phase Permanent Magnet Motor “ Servo Motor
- Model: 1FT50661AF713EB0
- Nr E: K367 6367 05 001
- Stall Torque Range: 6.5 “ 8 Nm
- Stall Current Range: 6.0 “ 7.3 A
- Speed (Rated / Max): 3000 “ 4900 / min
- Voltage: 369 V
- Protection Class: IP64
- Brake Voltage: 24 V
- Brake Power: 15.6 W
- Tach Generator: 1FU1050-6NF, 13.3 mV/min

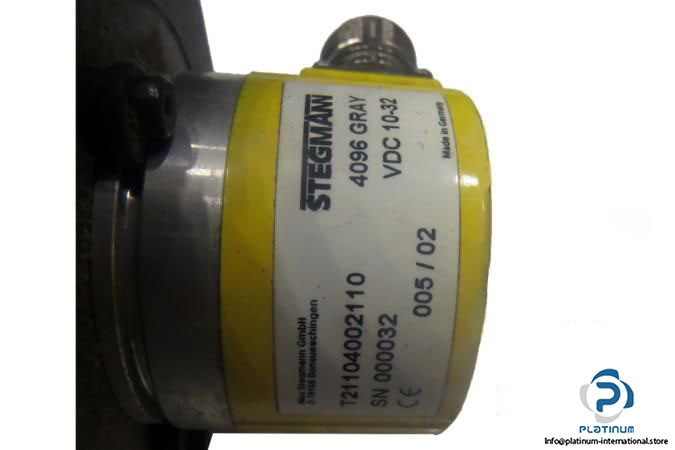

Encoder Details
- Manufacturer: Stegmann
- Model: T21104002110
- Ref No.: 005/02
- Voltage: 10“32 VDC
- Resolution: 4096 steps per revolution (GRAY)
- Flange Design: Synchro Flange
- Shaft Design: Solid Shaft
- Shaft Diameter: 6 mm
- Protection Class: IP64
