Siemens 1FT5074-0AF71-2-Z Synchronous Servo Motor
Used
In stock3 unitsReady to ship
1 500,00$
SYNCHRONOUS SERVO MOTOR
Siemens 1FT5074-0AF71-2-Z delivers 14 Nm rated torque at 3000 rpm with a 366 V rating. Designed for continuous S1 duty, featuring a 24 VDC brake, IP64 protection, and thermal class F. Ideal for dynamic motion control.1FT5074-0AF71-2-Z2MU3000366VBrakeControlEBDHighIndustrialIP64MotionmotorMotorsRatedrpmServoSiemensSynchronousTorque
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SIEMENS 1FT5074-0AF71-2-Z SYNCHRONOUS SERVO MOTOR
The Siemens 1FT5074-0AF71-2-Z is a high-performance synchronous servo motor engineered for continuous duty in industrial automation systems. Built to deliver excellent torque and speed characteristics, it is ideal for dynamic motion control applications.

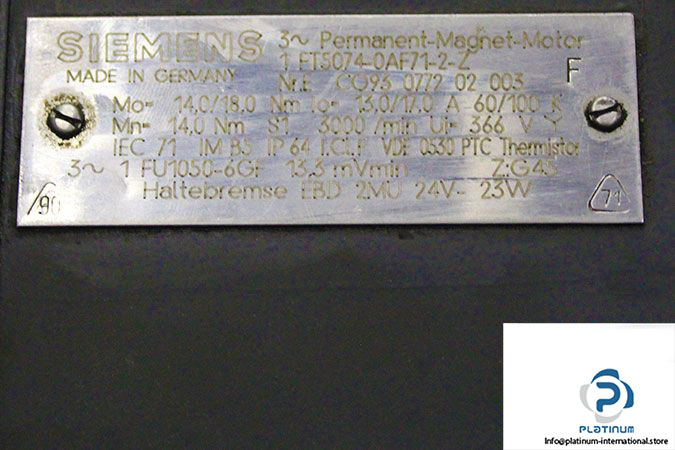

Manufacturer: Siemens
Type: Synchronous Servo Motors
Model: 1FT5074-0AF71-2-Z
Part No.: CO93 0772 02 003
Series: 5
Frame Size: 07
Length: 4
Technical Specifications
- Rated Voltage: 366 V
- Rated Torque: 14 Nm
- Rated Speed: 3000 rpm
- Standstill Current: 13/17 A
- Standstill Torque: 14/18 Nm
- Constant Voltage: 13.3 mVmin
- Brake Voltage: 24 VDC
- Brake Power: 23 W
- Brake Model: EBD 2MU
- Tacho Generator: 1FU1050-6GF
- Duty: S1 Continuous
- Mounting Position: IM B5
- Protection Class: IP64
- Thermal Class: F
