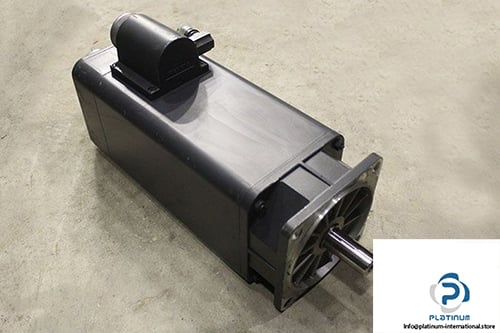

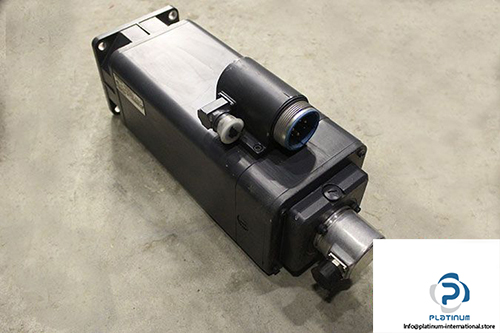

Siemens 1FT5076-0AF71-1-Z Synchronous Servo Motor
Used
In stock2 unitsReady to ship
1 750,00$
SYNCHRONOUS SERVO MOTOR
Siemens 1FT5076-0AF71-1-Z synchronous servo motor delivers 16.5 Nm rated torque and 3000 rpm speed, equipped with an incremental encoder and 24 VDC brake. Designed for precision motion control in continuous-duty applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SIEMENS 1FT5076-0AF71-1-Z SYNCHRONOUS SERVO MOTOR
This Siemens synchronous servo motor from Series 5 offers exceptional performance and reliability in industrial automation. Designed for continuous operation (Duty S1), it features a robust build, integrated brake system, and high-precision encoder for demanding applications in motion control and robotics.

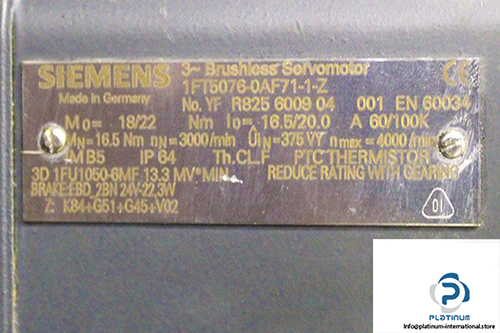

Manufacturer: Siemens
Type: Synchronous Servo Motor
Model: 1FT5076-0AF71-1-Z
No yf: R825 6009 04 001
Encoder Details
Mechanical & Protection
Ideal for integration in high-performance industrial automation systems, and fully compatible with Platinum International™s range of servo motors and sensors.
| Series | 5 |
| Frame Size | 07 |
| Length | 6 |
| Rated Voltage | 375 V |
| Rated Torque | 16.5 Nm |
| Rated Speed | 3000 rpm |
| Max. Speed | 4000 rpm |
| Standstill Current | 16.5/20 A |
| Standstill Torque | 18/22 Nm |
| Constant Voltage | 13.3 mV/min |
| Brake Voltage | 24 VDC |
| Brake Power | 22.3 W |
| Siemens Tachometer | 1FU1050-6MF, 13.3 mV/min |
| Options | K84+G51+G45+V02 |

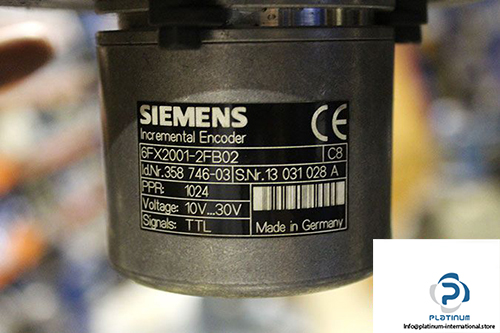

| Attached Encoder | Siemens 6FX2001-2FB02 Incremental Encoder |
| Part No. | 358 746-03 |
| Serial No | 13 031 028 A |
| Encoder Voltage | 10 / 30 V |
| Signals | TTL |
| Pulses Per Revolution (PPR) | 1024 |
| Duty | S1 Continuous |
| Mounting Position | IM B5 |
| Protection Class | IP64 |
| Thermal Class | F |
