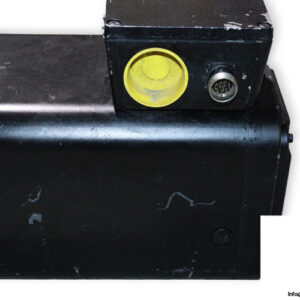

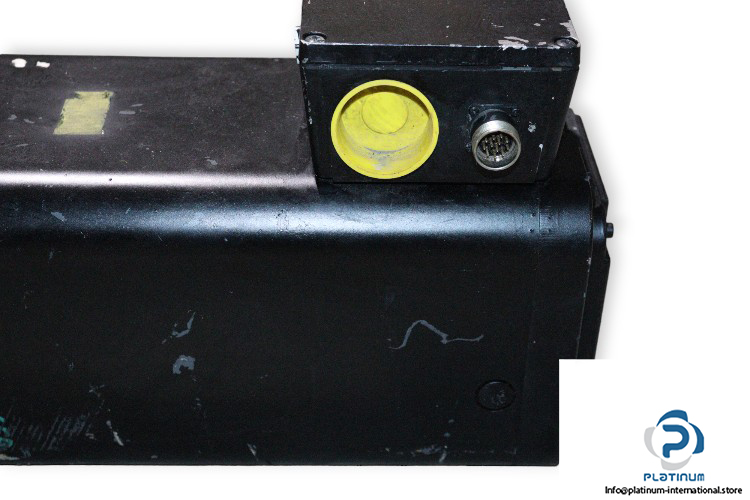

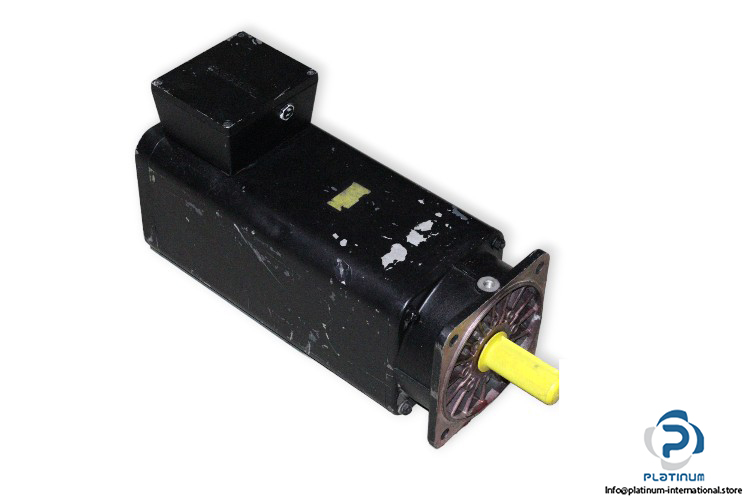

Siemens 1FT5108-0AC01-2-Z Permanent Magnet Motor

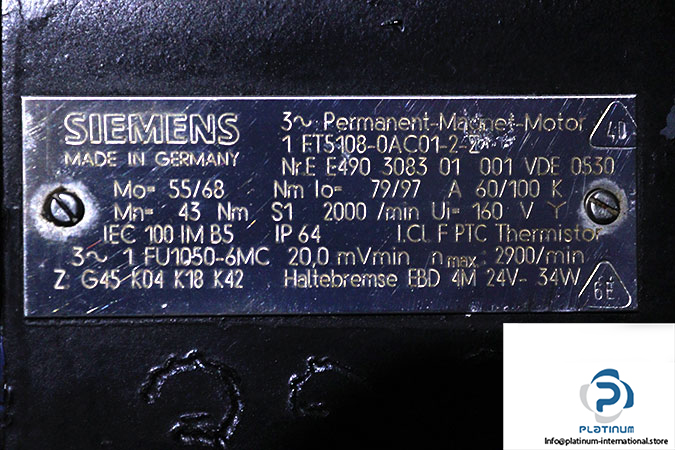

Manufacturer: SIEMENS
Type: Permanent Magnet Motor
Model: 1FT 5108 0AC01 2 Z

Nr.E: E490 3083 01 001 VDE 0530
Power supply: 3 phase AC
Frame Size: 10
Length: 8
Rated Voltage: 160 V star
Rated torque: 43 Nm
Stall Torque: 55/68 Nm
Stall Current: 79/97 A
Rated Speed: 2000 rpm
Resistor: 60/100 K
Maximum Speed: 2900 rpm
Voltage constant: 20 mVmin
Mounting Position: B5
standard: 1EC 100
Duty: S1
Protection Class: IP 64
Thermistor sensor: PTC
Thermal Class: F
Brake Voltage: 24 V
Brake Torque: 4 Nm
Brake Power: 34 W
