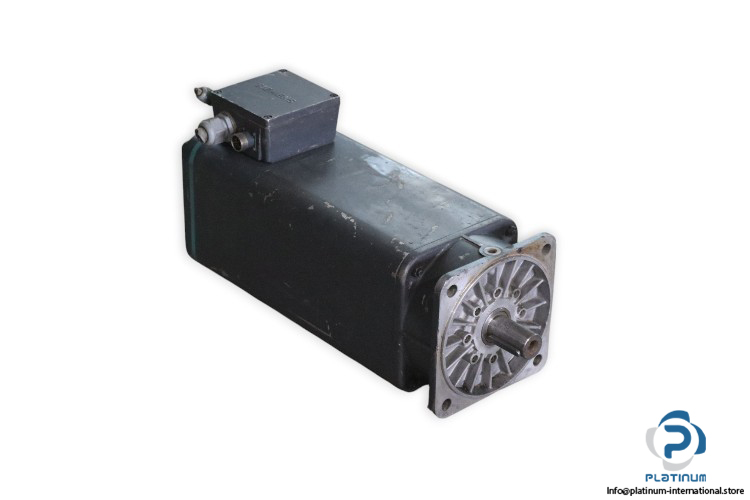

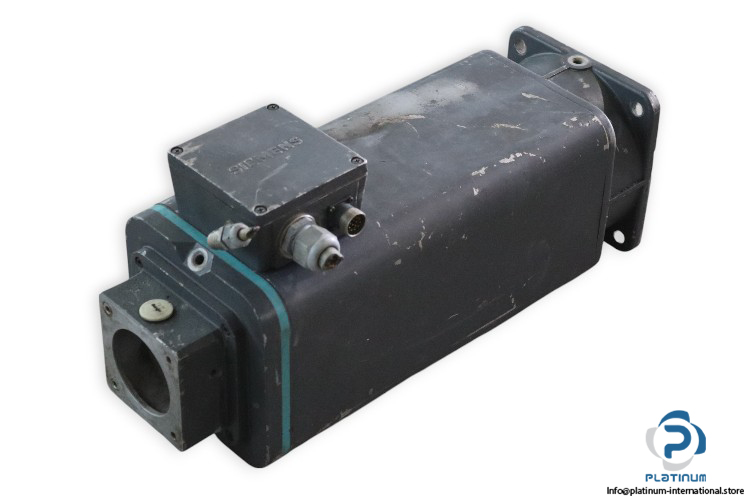

Siemens 1FT5108-0AC71-2-Z Permanent Magnet Servo Motor
Servo Motor
High-performance 3-phase permanent magnet servo motor, 384 V rated voltage, 42.5 Nm torque, and 2000 rpm speed. Robust IP64 construction with integrated brake and resolver feedback for precision automation and CNC applications.Siemens 1FT5108-0AC71-2-Z 3-Phase Permanent Magnet Servo Motor
The Siemens 1FT5108-0AC71-2-Z is a high-performance 3-phase permanent magnet servo motor from the SIMODRIVE 611 family, designed for applications requiring precision, power, and long-term reliability. It delivers excellent torque characteristics, superior dynamic response, and maintenance-free operation”ideal for demanding industrial automation systems and CNC machinery.
Manufacturer: Siemens
Type: 3-Phase Permanent Magnet Servo Motor
Model: 1FT5108-0AC71-2-Z
Series: 1FT5
Code: C88/5033 02 001
Family: SIMODRIVE 611
This Siemens servo motor ensures exceptional performance, precision control, and high energy efficiency. Its compact yet durable construction makes it perfect for high-demand environments. With integrated feedback and brake systems, it provides reliability and smooth operation for continuous industrial use.

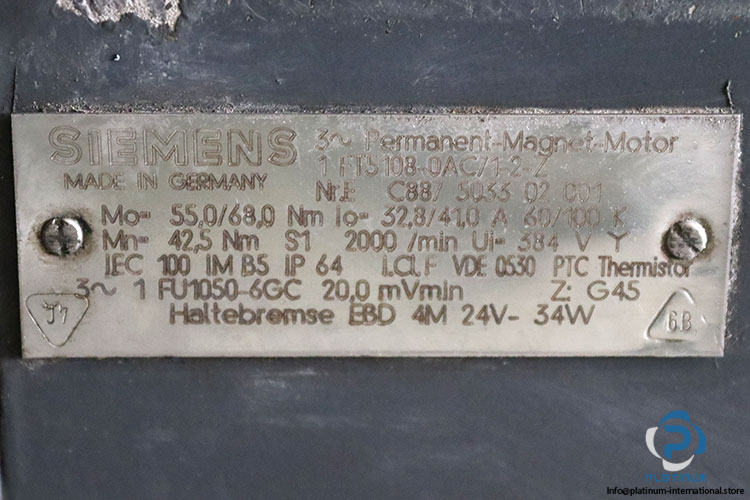

| Frame Size | 10 |
| Rated Torque (Mn) | 42.5 Nm |
| Peak Torque (Mo) | 55.0 / 68.0 Nm |
| Rated Current (In) | 32.8 / 41.0 A |
| Rated Speed (nN) | 2000 rpm |
| Rated Voltage (Ui) | 384 V |
| Link Voltage | 600 V DC |
| Thermal Class | 60 / 100 K (Class F) |
| Protection Class | IP64 |
| Mounting Type | IEC 100 IM B5 |
| Brake | Holding Brake EBD 4M 24V “ 34W |
| Cooling Type A | Non-ventilated |
| Insulation System | ICLF VDE 0530 |
| Thermal Protection Sensor | PTC Thermistor |
| Position Feedback | Resolver encoder interface |
| Applicable Drive | Siemens 1FU150-6GC (20.0 mV/min) |

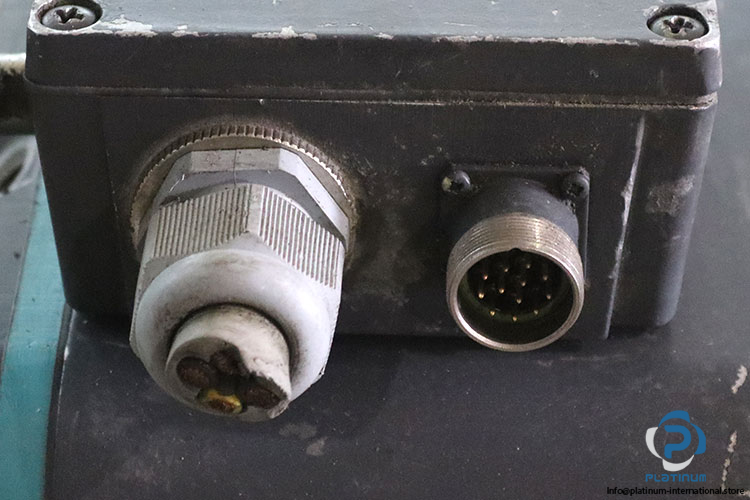

| Connector Type | Power and signal connectors (circular multi-pin) |
| Operating Mode | S1 Continuous duty |
| Applications | CNC machining centers, industrial automation, packaging machinery, robotics, conveyor systems |
| Special Features | High torque density, robust construction, integrated brake, maintenance-free bearings |
