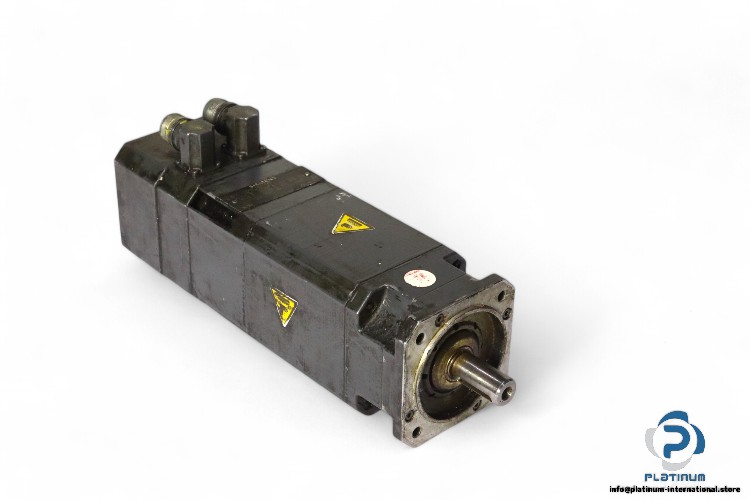

Siemens 1FT6044-4AF71-3AB1 Servo Motor

SIEMENS 1FT6044-4AF71-3AB1 SERVO MOTOR

The Siemens 1FT6044-4AF71-3AB1 is a high-performance servo motor designed for demanding industrial automation tasks. With a compact footprint and integrated encoder, it offers excellent speed and torque stability, making it ideal for precise motion control applications.

Manufacturer: SIEMENS
Type: Servo Motor
Model: 1FT6044-4AF71-3AB1
Part No.: TD36 6048 01 004

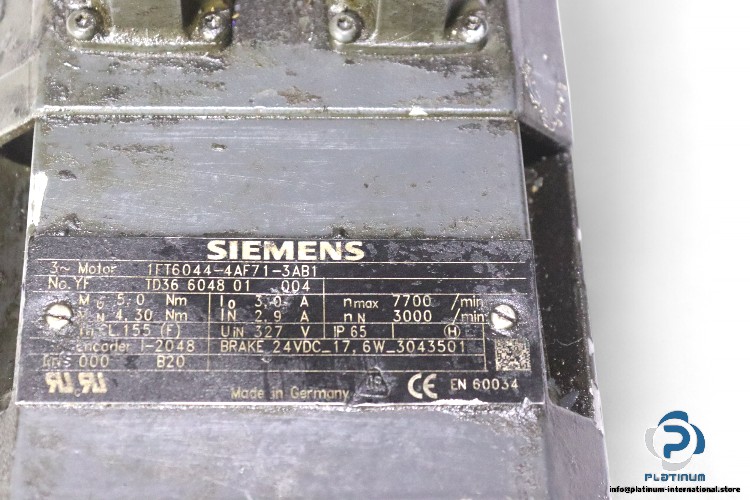

Technical Specifications

• Supply Voltage: 327 V
• Stall Torque: 5 Nm
• Rated Torque: 4.3 Nm
• Stall Current: 3 A
• Rated Current: 2.9 A
• Max. Speed: 7700 rpm
• Rated Speed: 3000 rpm
• Protection Class: IP 65
• Brake Voltage: 24 VDC
• Brake Power: 17.6 W
• Thermal Class: F
• Attached with: I-2048 ENCODER
