Siemens 1FT6105-8AF71-1AG1-Z Brushless Servo Motor
Used
In stock1 unitReady to ship
BRUSHLESS SERVO MOTOR
Siemens 1FT6105-8AF71-1AG1-Z brushless servo motor offers 31 Nm rated torque, 297 V supply, and IP65 protection, designed for high-performance industrial automation systems.1FT6105-8AF71-1AG1-Z331AutomationBrushlessDriveEncoderHighIndustrialIP65motorNmPhaseServoSiemensTorque
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

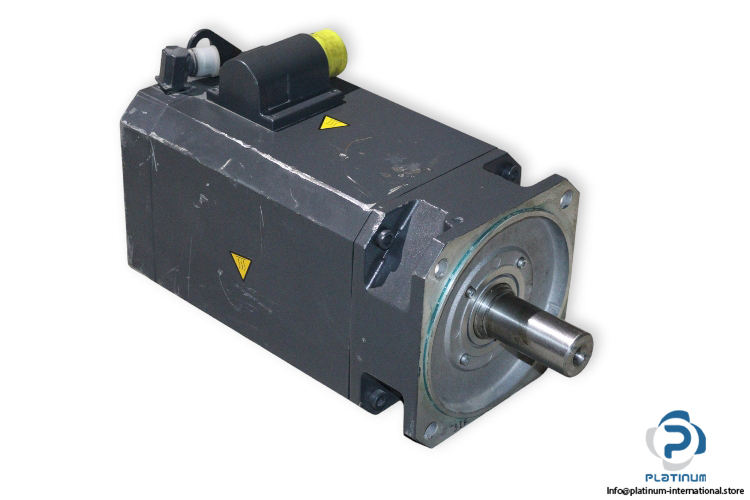

SIEMENS 1FT6105-8AF71-1AG1-Z BRUSHLESS SERVO MOTOR
This Siemens brushless servo motor is built for demanding automation systems requiring high torque, precision, and robust protection. Ideal for industrial environments, it delivers stable performance across a wide speed range.

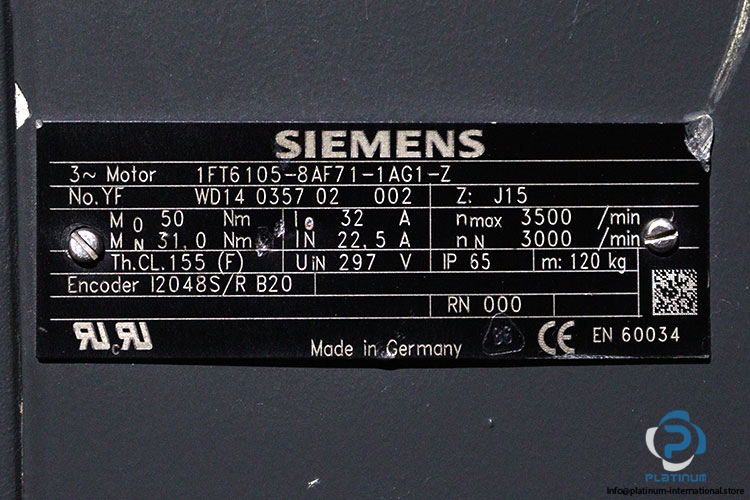

Manufacturer: Siemens
Type: Brushless Servo Motor
Model: 1FT6105-8AF71-1AG1-Z
NO.YF: WD14 0357 02 002
Code: J15
| Power Supply | 3 phase AC |

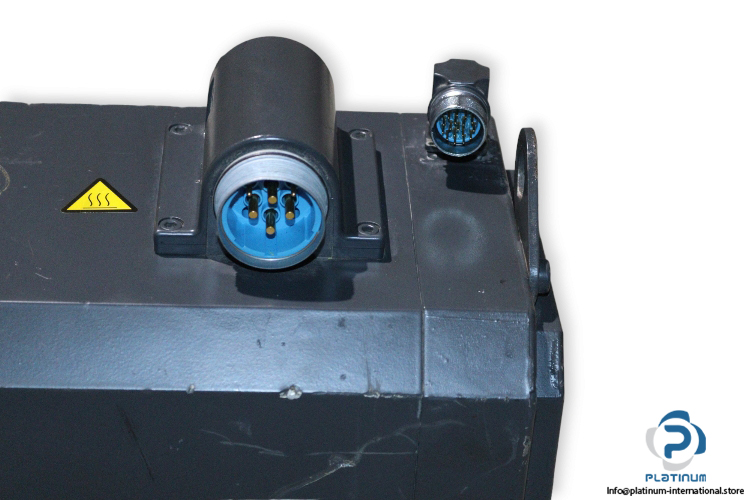

| Connector, Outlet Direction | Transverse, Right |
| Number of Poles | 8 |
| Rated Voltage | 297 V |
| Rated Torque | 31 Nm |
| Static Torque | 50 Nm |
| Stall Current | 32 A |
| Rated Current | 22.5 A |
| Rated Speed | 3000 rpm |
| Maximum Speed | 3500 rpm |
| Moment of Inertia (without brake) | 168 × 10»´ kgm² |
| Protection Class | IP 65 |
| Thermal Class | F |
| Encoder System | I2048S/R B20 |
