Siemens 1LA5134-6CA10-Z Brake Motor
Used
In stock1 unitReady to ship
Brake Motor
The SIEMENS 1LA5134-6CA10-Z Brake Motor offers reliable and efficient performance with a rated power of 5.5 kW at 50 Hz and 6.3 kW at 60 Hz, and a 100 Nm brake torque.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

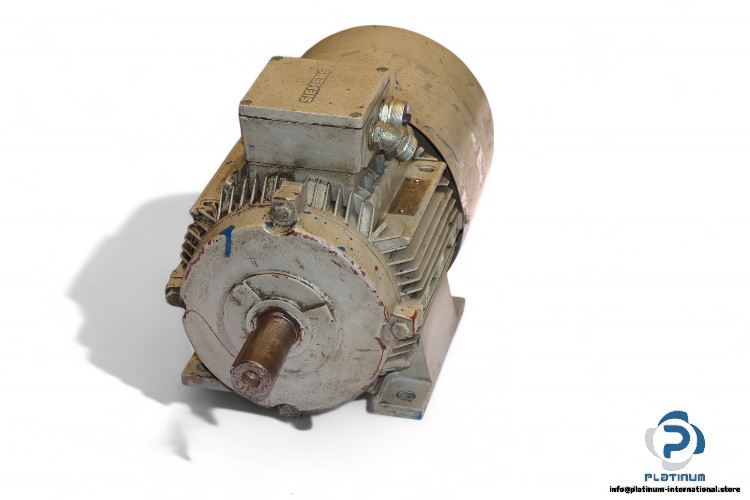

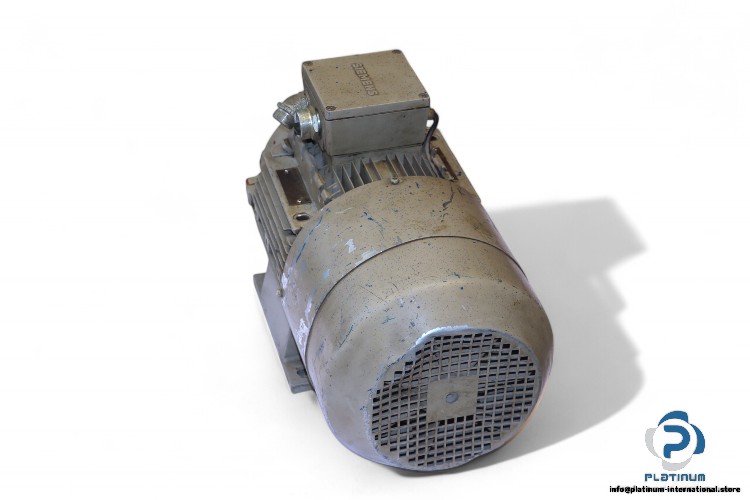

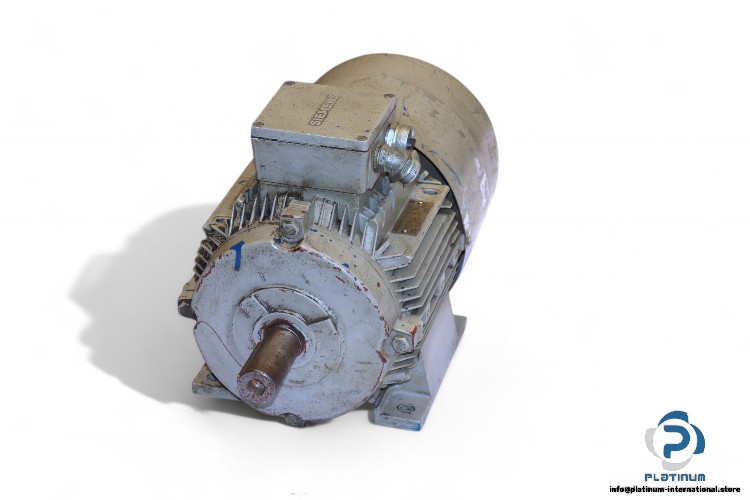

SIEMENS 1LA5134-6CA10-Z Brake Motor
The SIEMENS 1LA5134-6CA10-Z Brake Motor is a high-performance motor designed for various industrial applications. With versatile specifications at both 50 Hz and 60 Hz, it offers efficiency, reliability, and precision control with a rated power up to 6.3 kW and an impressive brake torque of 100 Nm.
Manufacturer: SIEMENS
Type: Brake Motor
Model: 1LA5134-6CA10-Z
Part No.: J393 8745 01 001

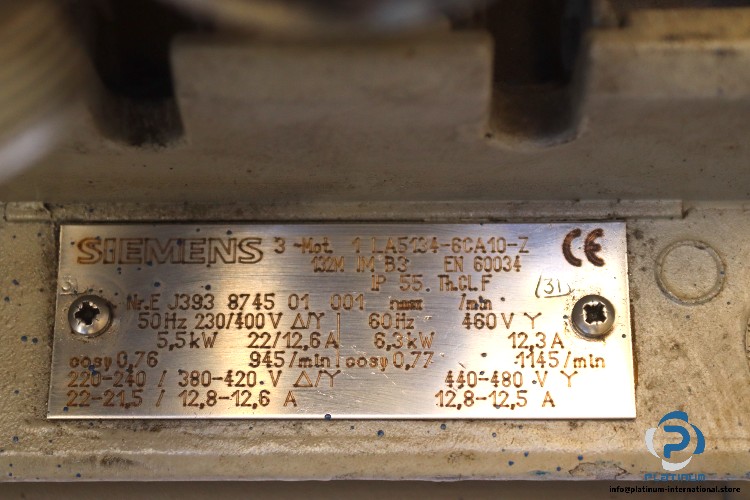

Technical Specifications
At 50 Hz:
- Rated Power [kW]: 5.5
- Rated Voltage [V]: 230/400 Delta/Star
- Rated Current [A]: 22/12.6
- Rated Speed [RPM]: 945
- Power Factor: 0.76
At 60 Hz:
- Rated Power [kW]: 6.3
- Rated Voltage [V]: 460 Star
- Rated Current [A]: 12.3
- Rated Speed [RPM]: 1145
- Power Factor [cosø]: 0.77
- Mounting Position [IM]: B3
- Protection Class [IP]: 55
- Thermal Class: F

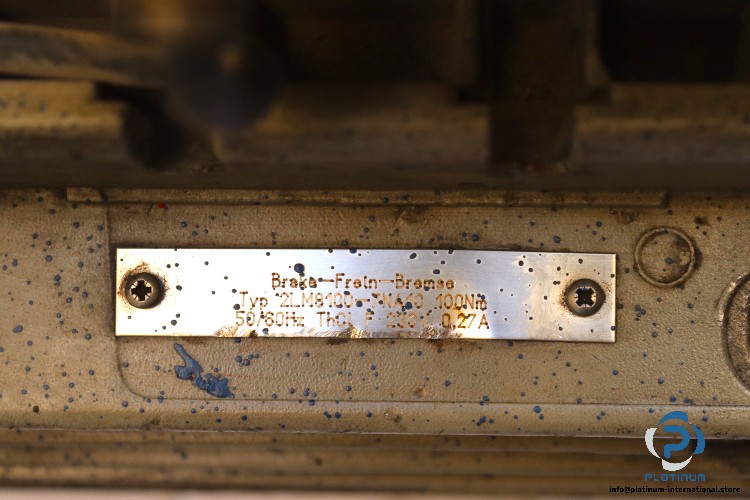

- Attached with: 2LM8100-7NA10 BRAKE
- Brake Voltage [V]: 230
- Frequency: 50/60 Hz
- Brake Torque [Nm]: 100
- Brake Current [A]: 0.27
