Siemens 1LA52078AB10-Z 3 Phase E-Motor
Used
In stock1 unitReady to ship
3-PHASE E-MOTOR
Siemens 3-phase E-motor offering dual-frequency operation at 50/60 Hz, delivering 15“18 kW power with B3 mounting. Built to IEC/EN 60034 standard with IP55 protection and Class F insulation.B3ClassDualE-motorElectricFFrequencyHighIndustrialInsulationIP55motorMountingPhaseSiemensthreeTorque
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

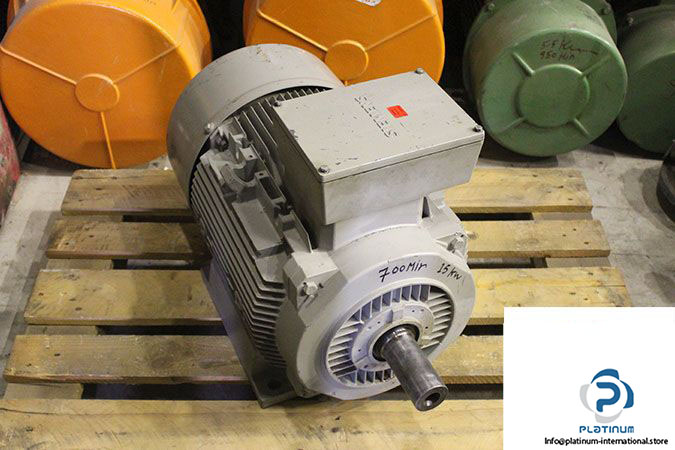

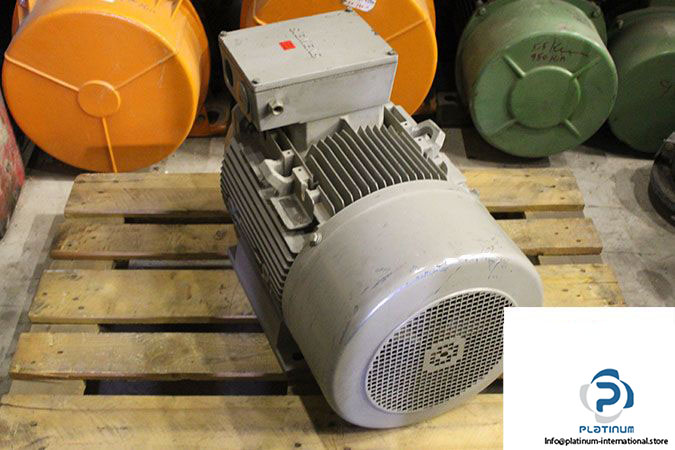

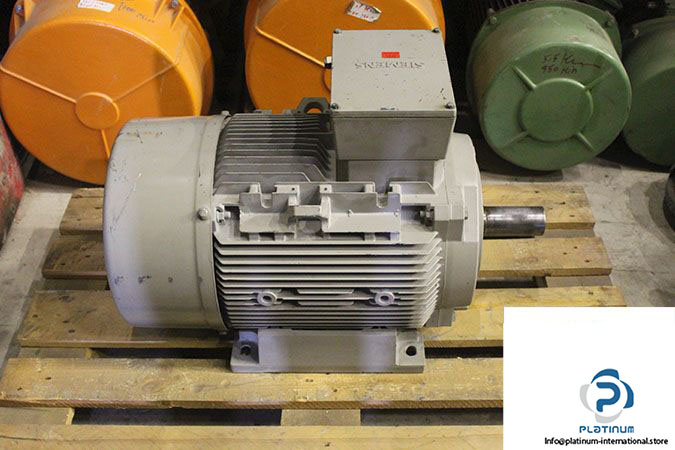

SIEMENS 1LA52078AB10-Z 3-PHASE E-MOTOR
The Siemens 1LA52078AB10-Z is a high-performance 3-phase electric motor designed for industrial-grade applications that demand efficiency, reliability, and durability. Built to IEC/EN 60034 standards, this motor provides dual-frequency capability and supports both Delta/Star and Star configurations for flexible operation in various power systems.
Manufacturer: Siemens
Type: 3 Phase E-Motor

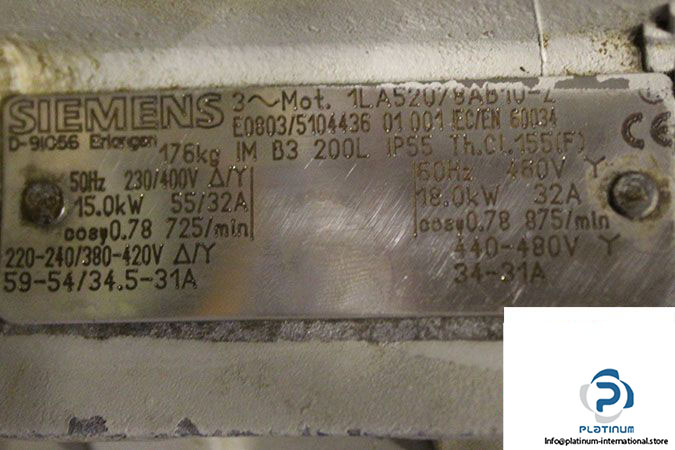

Model: 1LA52078AB10-Z
Part No.: E0803/5104436 01 001
Standard: IEC/EN 60034
Technical Specifications
- Mounting Position [IM]: B3
- Protection Class [IP]: 55
- Insulation Class: F
50 Hz Operation
- Rated Voltage [V]: 230/400 (Delta/Star)
- Rated Current [A]: 55/32
- Rated Speed [rpm]: 725
- Rated Power [kW]: 15
- Power Factor [cosø]: 0.78
60 Hz Operation
- Rated Voltage [V]: 460 (Star)
- Rated Current [A]: 32
- Rated Speed [rpm]: 875
- Rated Power [kW]: 18.0
- Power Factor [cosø]: 0.78
