Siemens 1LG4 313-4AA96-Z 315M Electric Motor
New
In stock1 unitReady to ship
11 999,99$
ELECTRIC MOTOR
Siemens 1LG4 313-4AA96-Z 315M three-phase electric motor with 132 kW power, 380 V Δ / 660 V Y, 295/142 A current, 1488 rpm, IP55 protection, Class F insulation, and IMB35 mounting.0804132kW14881LG4313-4AA96-Z315M380V660VClassElectricFIMB35IndustrialInsulatedIP55motorMountingrpmSiemensUC
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Siemens 1LG4 313-4AA96-Z 315M Electric Motor

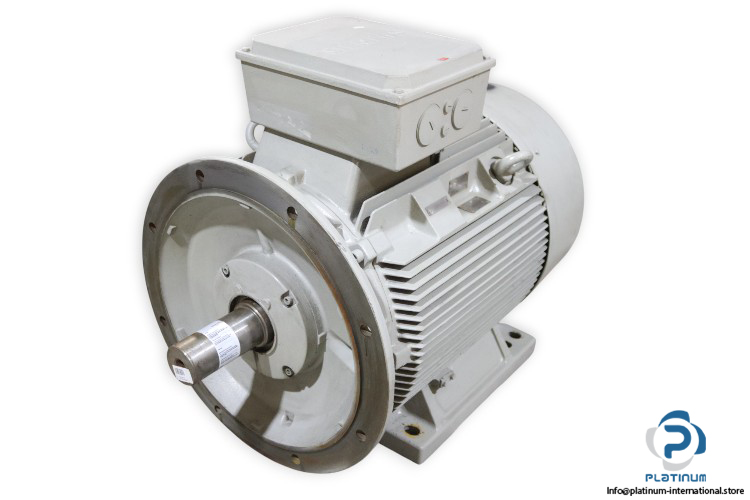

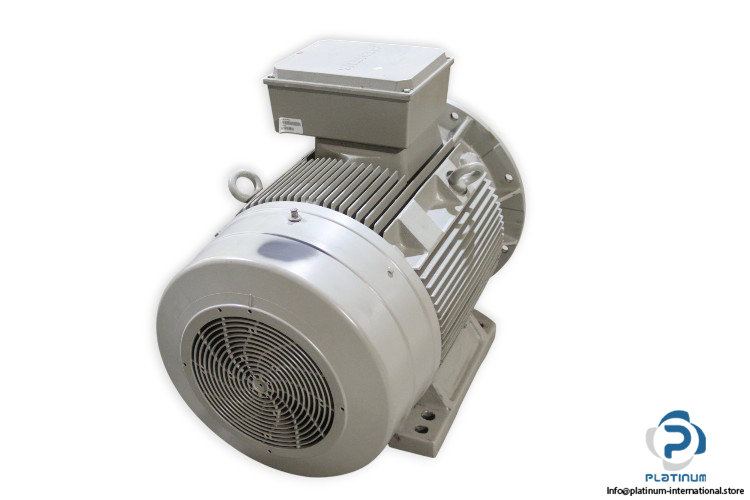

The Siemens 1LG4 313-4AA96-Z 315M is a high-performance three-phase electric motor built for demanding industrial applications. With a power output of 132 kW, IP55 protection, and robust bearing design, it delivers reliable efficiency, long service life, and stable operation under heavy loads.
Manufacturer: Siemens
Type: Electric Motor
Model: 1LG4 313-4AA96-Z 315M

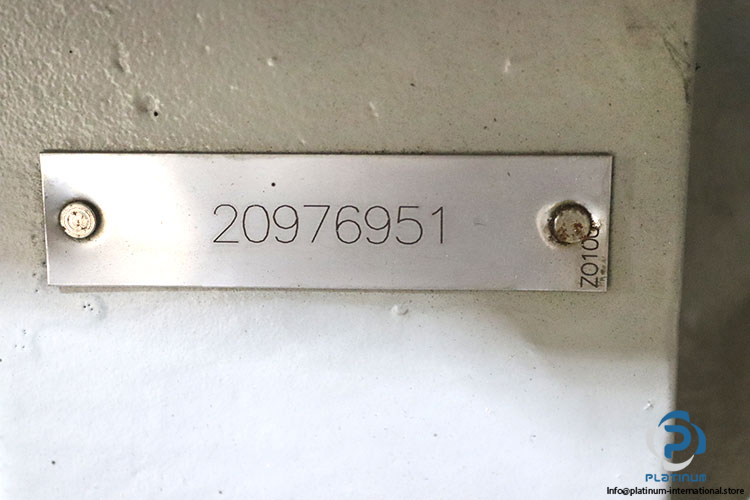

Code: UC 0804/036096401 IMB35, 20976951, Z0100
| Rated Voltage | Δ 380 V / Y 660 V |
| Frequency | 50 Hz |
| Current | Δ 295 A / Y 142 A |
| Power Output | 132 kW |
| Power Factor (cos φ) | 0.85 |
| Speed (n) | 1488 min»¹ (rpm) |
| Voltage Range | 360“400 V Δ / 255“245 A, 625“695 V Y / 148“140 A |
| Mounting | IMB35 |
| Thermal Class | F |
| Protection Class | IP55 |

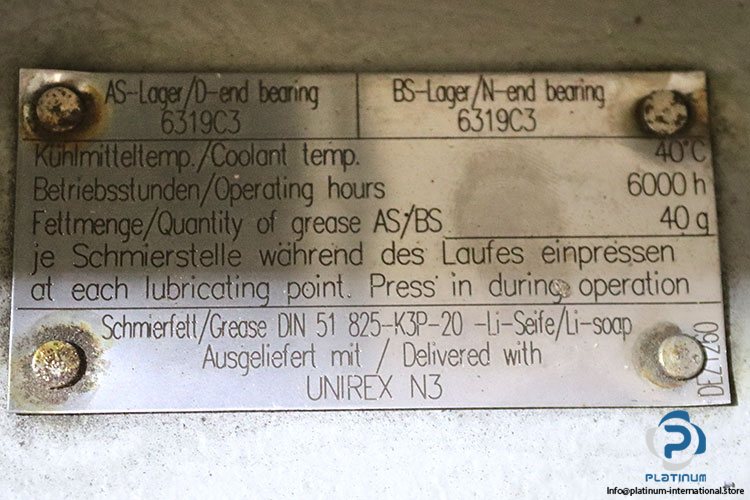

| Bearing | 6319C3 AS-Lager/D-end bearing, 6319C3 BS-Lager/N-end bearing |
| Temperature | 40 °C |
| Operating Hours | 6000 h |
| Quantity of Grease AS/BS | 40 g |
| Grease | DIN 51 825-K3P-20 Li-Seife / Li-soop |
