Siemens 1PH7 184-7ND130CJ0 Asynchronous Motor
Used
In stock1 unitReady to ship
ASYNCHRONOUS MOTOR
Siemens 1PH7 184-7ND130CJ0 asynchronous motor with 39“50 kW power, 335“450 V voltage, IM B35 mounting, D20-2048 SR encoder, forced cooling, and IP55 protection.041387435010001/2013184-7ND130CJ01PH739kW50kWAsynchronousB35ClassCoolingD20-2048EncoderFforcedIMIndustrialIP55KTY84motorSiemensSR
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

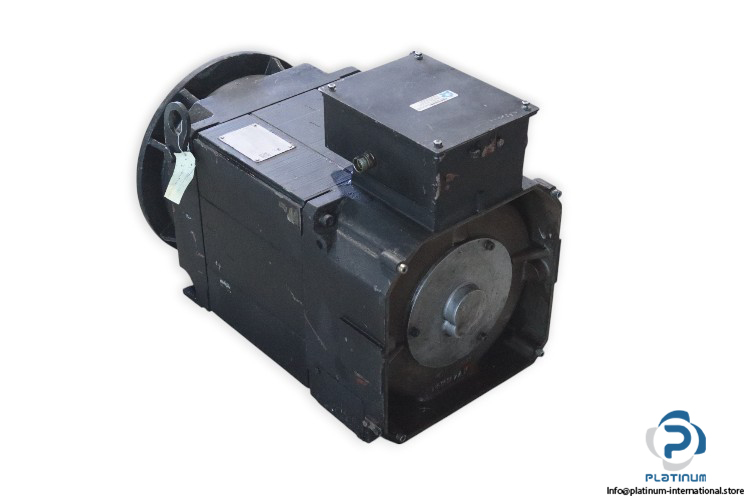

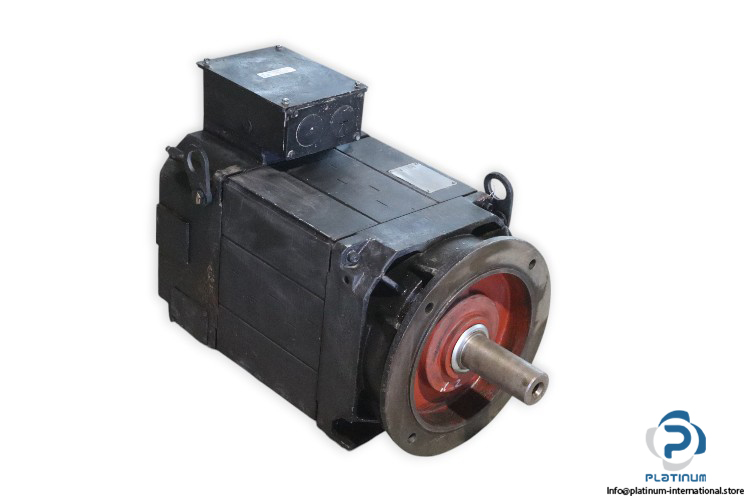

Siemens 1PH7 184-7ND130CJ0 Asynchronous Motor
The Siemens 1PH7 184-7ND130CJ0 is a high-performance asynchronous motor designed for demanding industrial applications. With robust power output, precise speed control, forced cooling, and integrated encoder, it provides reliability and efficiency in automation and drive systems.

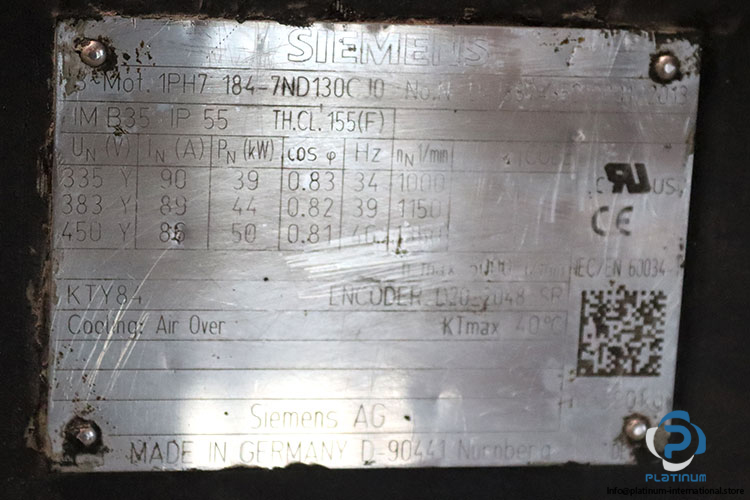

Manufacturer: Siemens
Type: Asynchronous Motor
Model: 1PH7 184-7ND130CJ0
Part No.: 041387435010001/2013
Encoder: D20-2048 SR
| Cooling | KTY84 “ Cooling air over (forced cooling) |
| Mounting | IM B35 |
| Voltage | 335/383/450 V |
| Current | 90/89/86 A |
| Power | 39/44/50 kW |
| Power Factor | 0.83/0.82/0.81 |
| Frequency | 34/39/40 Hz |
| Speed | 1000/1150 rpm |
| IP Rate | 55 |
| Class | F |
| Temperature | 40 °C |
