Siemens 1PH7107-2RG02-0BB0 Induction Motor

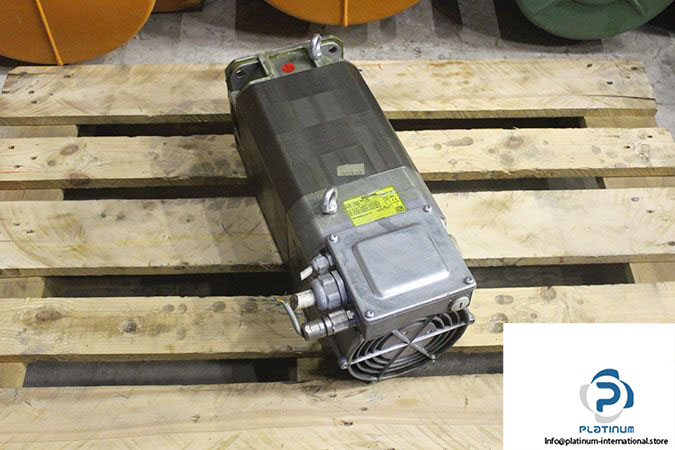

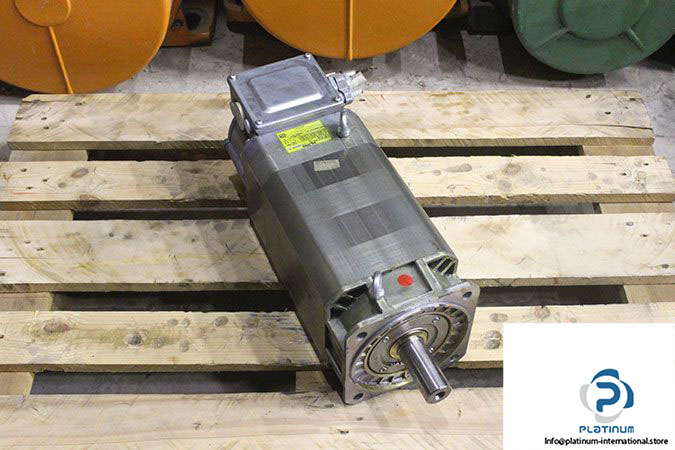

SIEMENS 1PH7 107-2RG02-0BB0 INDUCTION MOTOR WITH EBMPAPST FAN

The Siemens 1PH7 107-2RG02-0BB0 is a high-performance induction motor engineered for continuous industrial operation. With versatile voltage compatibility, robust torque output, and a high protection class, this motor is ideal for demanding automation and motion control environments. It comes equipped with an integrated EBMPAPST W2D160-EA22-11 cooling fan for enhanced thermal management and reliable performance.

Manufacturer: Siemens
Type: Induction Motors
Model: 1PH7 107-2RG02-0BB0
Code: 433

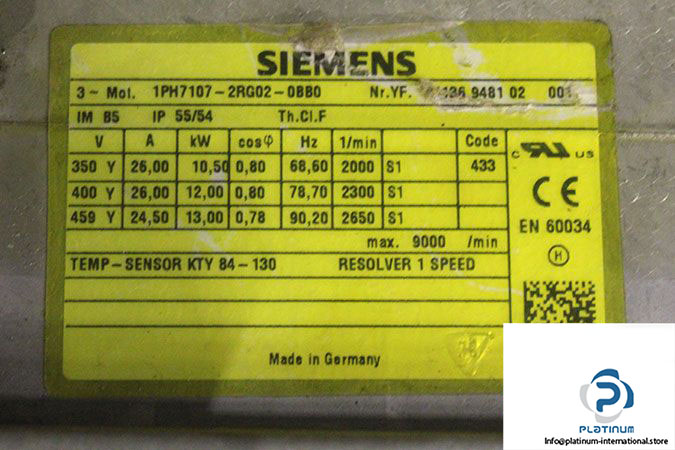

Technical Information “ Motor

• Rated Voltage [V]: 350 / 400 / 459
• Rated Current [A]: 25 / 26 / 24.5
• Rated Speed [rpm]: 2000 / 2300 / 2650
• Max. Speed [rpm]: 9000
• Rated Power [kW]: 68.6 / 78.7 / 90.2
• Power Factor [cosø]: 0.8 / 0.8 / 0.78

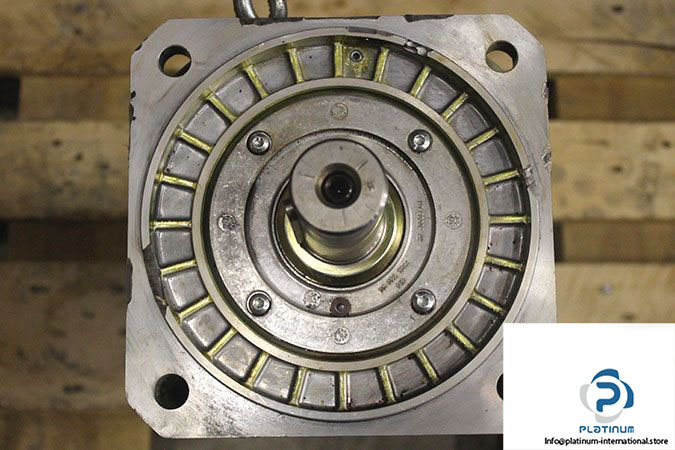

• Mounting Position [IM]: B5
• Protection Class [IP]: 55-54
• Temperature Sensor: KTY84-130
• Duty: S1
• Thermal Class: F

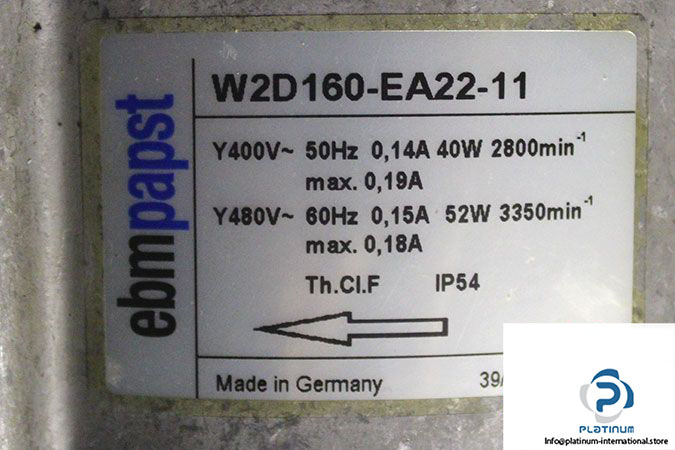

Cooling Attachment “ Fan Unit

Manufacturer: Ebm Papst
Type: Fans
Model: W2D160-EA22-11

• Rated Voltage [V]: 400 / 480
• Rated Current [A]: 0.14 / 0.15
• Max Current [A]: 0.19 / 0.18
• Rated Power [W]: 40 / 52
• Rated Speed [rpm]: 2800 / 3350
• Thermal Class: F
• Protection Class [IP]: 54
