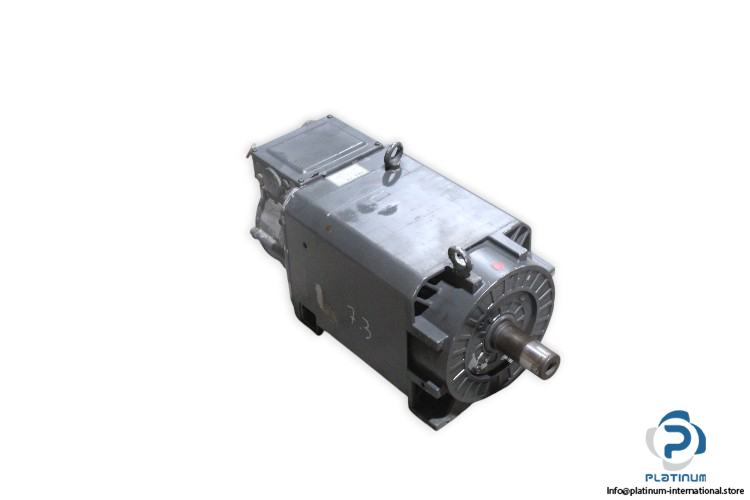

Siemens 1PH7163-2HF00-0BK3 Asynchronous Induction Motor
Used
In stock2 unitsReady to ship
ASYNCHRONOUS INDUCTION MOTOR
High-efficiency Siemens asynchronous motor with integrated encoder systems and external cooling, delivering up to 37 kW power and 6500 rpm speed for precision industrial applications.1PH7163-2HF00-0BK3376500AsynchronousDriveDRIVE-CLiQEbmEncoderFaninductionIndustrialIP55kWmotorrpmSiemensW2D250
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SIEMENS 1PH7163-2HF00-0BK3 ASYNCHRONOUS INDUCTION MOTOR
The Siemens 1PH7163-2HF00-0BK3 is a high-performance asynchronous induction motor designed for demanding industrial environments. With integrated incremental and absolute encoder systems, external fan cooling, and high protection ratings, it ensures optimal speed control, thermal stability, and energy-efficient performance under continuous operation.
Manufacturer: Siemens
Type: Asynchronous Induction Motor
Model: 1PH7163-2HF00-0BK3
Part No.: P620 0719 02
Code: 415
| Encoder System | Incremental encoder HTL, 1024 Pulses/rev (H20 1024 S/R) |
| Encoder (Drive-CLiQ) | Absolute 22-bit Single Turn + 12-bit Multiturn |

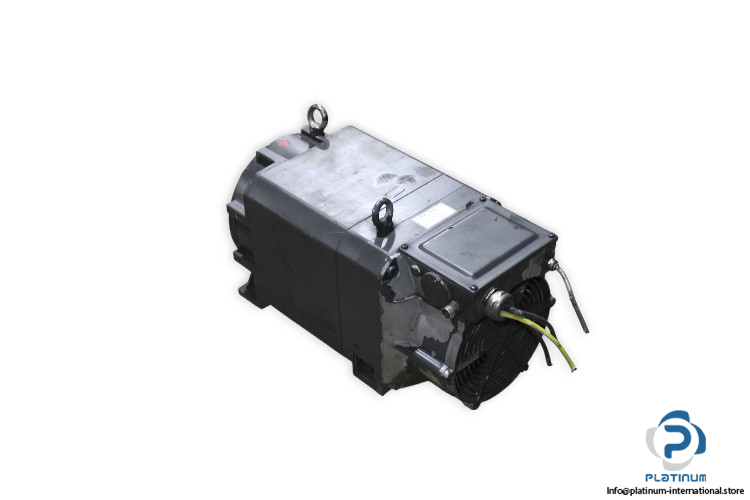

| Fan | External fan unit, heavy-gauge threaded cable entry in terminal box |
| Voltage | 319 / 364 / 412 V |
| Frequency | 50.90 / 59.19 / 67.50 Hz |
| Power | 30 / 34 / 37 kW |
| Speed | Rated 1500 / 1750 / 2000 rpm, Max 6500 rpm |
| Power Factor | 0.849 / 0.86 / 0.85 |
| Current | 72 / 72 / 70 A |
| Terminal Box (view onto DE) | Top / From Right |
| Thermal Class | F |
| Protection | IP55 / IP54 |
| Duty | S1 |
| Temp. Sensor | KTY 84 to 130 |
| Mounting | B3 |

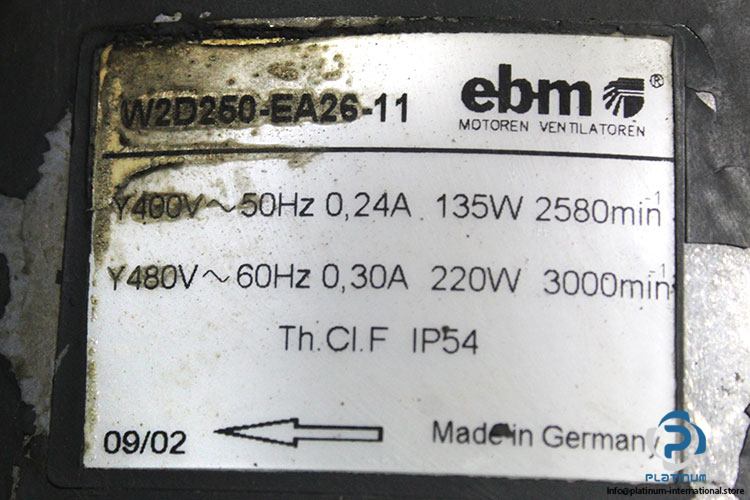

| Attached Fan Unit | EBM W2D250-EA26-11 |
| Frequency | 50/60 Hz |
| Voltage | 400 / 480 V |
| Current | 0.24 / 0.30 A |
| Power | 135 / 220 W |
| Speed | 2580 / 3000 rpm |
| Class | F |
| IP Rate | 54 |
