Siemens 1PH8137-2EL02-2BA1 Servo Motor
New
In stock1 unitReady to ship
4 450,00$
SERVO MOTOR
Powerful Siemens 1PH8 137-2EL02-2BA1 servo motor delivering up to 56.9 kW, 460 Nm torque, and 4500 rpm with IP55 protection for demanding industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SIEMENS 1PH8 137-2EL02-2BA1 SERVO MOTOR
The Siemens 1PH8 137-2EL02-2BA1 is a high-performance industrial servo motor engineered for precision motion control and continuous-duty operation. Built with robust construction, high torque output, and IP55 protection, it delivers exceptional efficiency and reliability in demanding applications.

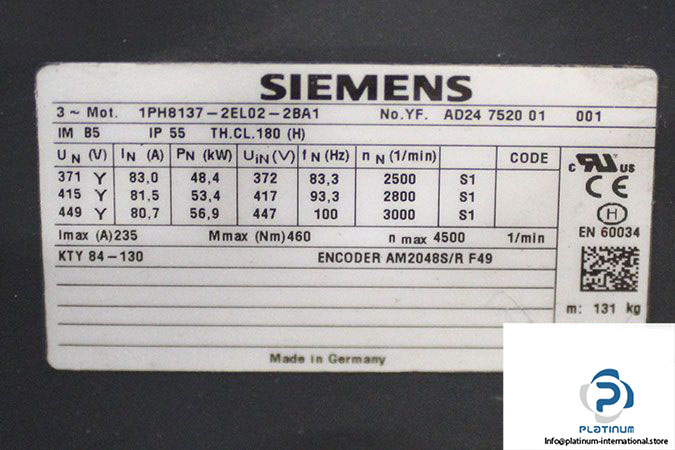

Manufacturer: Siemens
Type: Servo Motor
Model: 1PH8 137-2EL02-2BA1
Part No.: AD24 7520 01 001
| At 83.3 Hz | Rated Voltage (star): 371 V, Normal Voltage: 372 V, Rated Current: 83 A, Power: 48.4 kW, Rated Speed: 2500 min-1 |
| At 93.3 Hz | Rated Voltage (star): 415 V, Normal Voltage: 417 V, Rated Current: 81.5 A, Power: 53.4 kW, Rated Speed: 2800 min-1 |
| At 100 Hz | Rated Voltage (star): 449 V, Normal Voltage: 447 V, Rated Current: 80.7 A, Power: 56.9 kW, Rated Speed: 3000 min-1 |
| Max. Current | 235 A |
| Max. Speed | 4500 min-1 |
| Max. Torque | 460 Nm |
| Duty | S1 |
| Thermal Class | H |
| Protection Class | IP55 |
| Encoder Model | AM2048S/R F49 |
| Temp Constant | KTY 84-130 |
