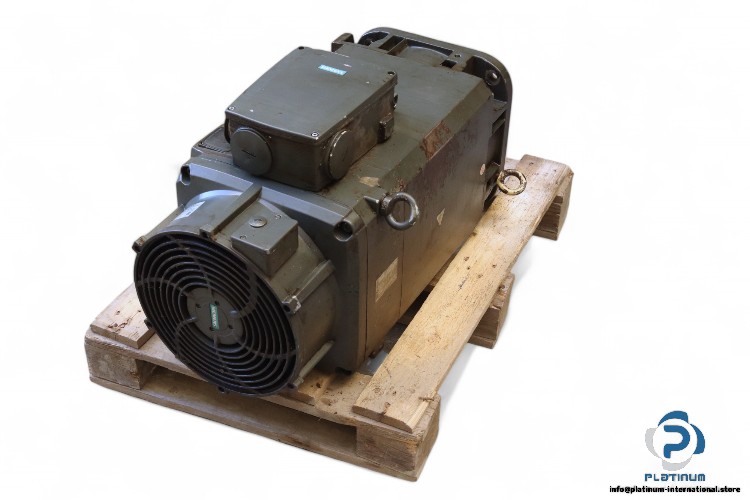

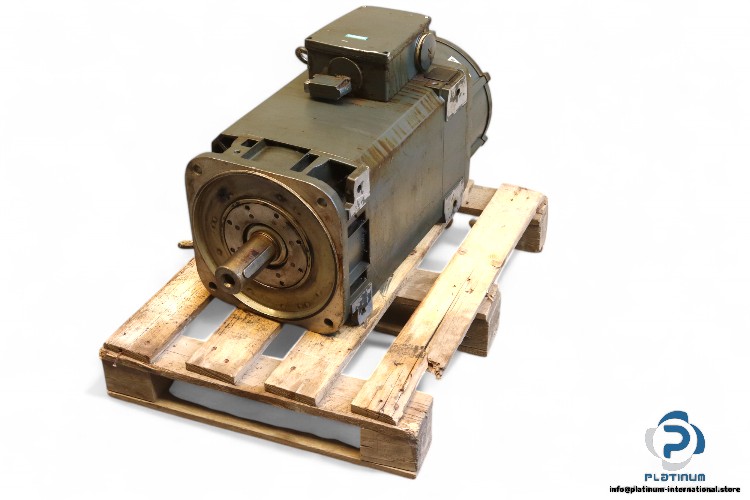

Siemens 1PH8165-1DF03-1BA1-Z Asynchronous Motor

SIEMENS SIMOTICS ASYNCHRONOUS MOTOR 1PH81651DF031BA1Z

The Siemens SIMOTICS Asynchronous Motor is designed for high efficiency and reliability in industrial applications. With a robust squirrel cage design, this motor offers excellent performance, a wide range of voltages, and speed options. It also comes equipped with a high-quality axial fan to ensure optimal cooling for demanding environments.

Manufacturer: Siemens

Type: ASYNCHRONOUS MOTOR

Family: SIMOTICS

MRN: 1PH81651DF031BA1Z

Part No.: H1623 9818 01 002

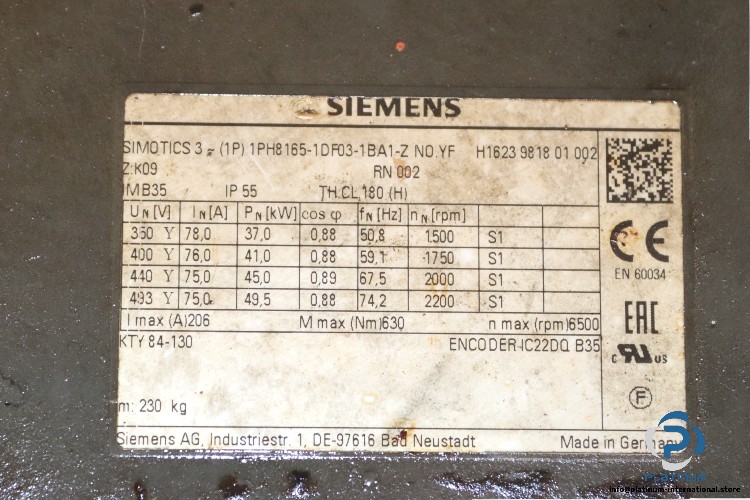

Technical Specifications

• Motor Type: Squirrel cage asynchronous motor
• Rated Voltage: 350/400/440/493 V
• Rated Current: 78/76/75/75 A
• Power Factor [cos]: 0.88/0.88/0.89/0.88
• Frequency: 50.8/59.1/67.5/74.2 Hz
• Rated Power: 37/41/45/49.5 kW
• Rated Speed: 1500/1750/2000/2200 rpm
• Silicon Temperature Sensors: KTY84-130
• Max Torque: 630 Nm
• Max Speed: 6500 rpm
• Max Current: 206 A
• Type of Electrical Connection: Terminal box
• Power Connection: Right
• Protection Class: IP55
• Mounting Position [IM]: B35
• Attached: IC22DQ B35 ENCODER
• Attachment: EBM PAPST W2D270-EB26-07 AXIAL FAN

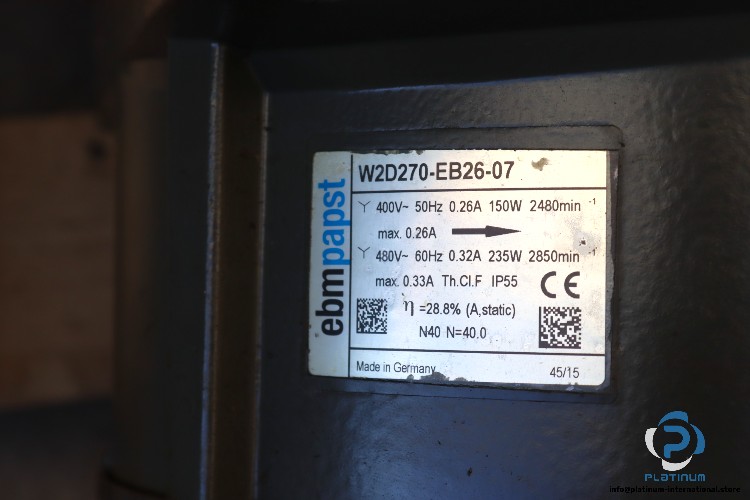

Fan Specifications:

• Manufacturer: ebm-papst
• Type: Axial Fan
• Model: W2D270-EB26-07
• At 50 Hz:
  • Rated Voltage: 400 V
  • Rated Current: 0.26 A
  • Rated Power: 150 W
  • Rated Speed: 2480 RPM
• At 60 Hz:
  • Rated Voltage: 480 V
  • Rated Current: 0.32 A
  • Rated Power: 235 W
  • Rated Speed: 2850 RPM
• Thermal Class: F
• Protection Class: IP55
