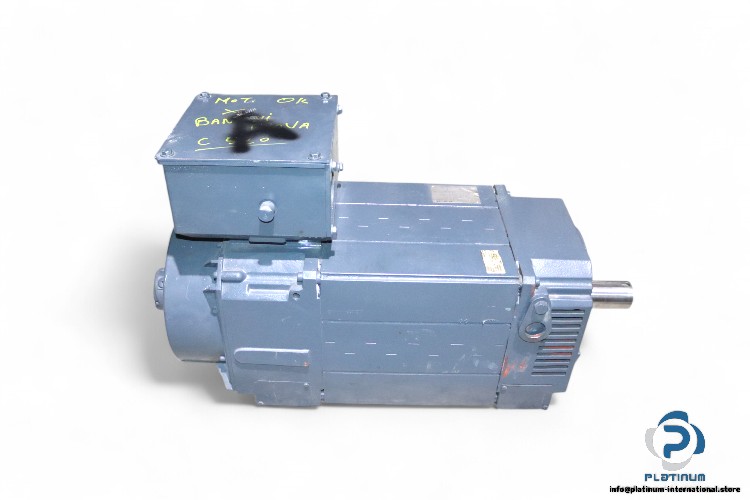

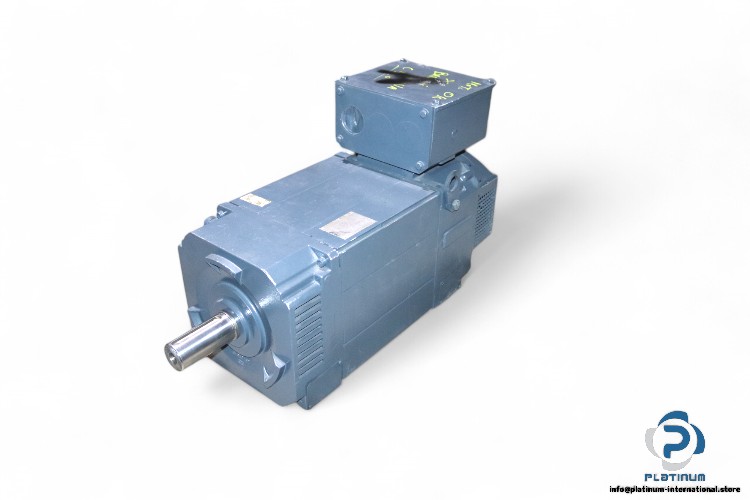

Siemens 1PL6 186-4HL000AA3 Asynchronous Motor

SIEMENS 1PL6 186-4HL000AA3 ASYNCHRONOUS MOTOR “ SIMOTICS M

The Siemens SIMOTICS M 1PL6 asynchronous motor is a high-performance industrial solution designed for reliable power and efficiency in demanding applications. Equipped with an integrated ZIEHL-ABEGG cooling fan and encoder, this motor offers high-speed capabilities and accurate feedback control.

Manufacturer: SIEMENS
Type: Asynchronous Motor
Family: SIMOTICS M
Model: 1PL6 186-4HL000AA3
Part No.: T71162126020001/2006

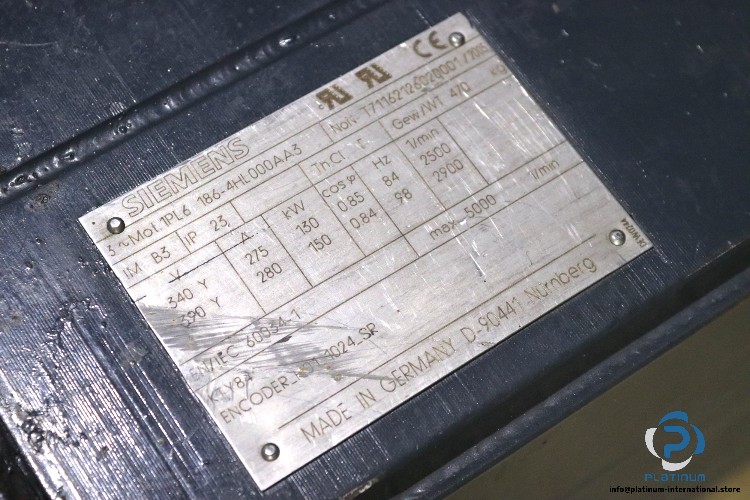

Technical Specifications

At 340 V Star:

• Rated Current: 275 A
• Power Factor [cos]: 0.85
• Frequency: 84 Hz
• Rated Power: 130 kW
• Rated Speed: 2500 rpm

At 390 V Star:

• Rated Current: 280 A
• Power Factor [cos]: 0.84
• Frequency: 98 Hz
• Rated Power: 150 kW
• Rated Speed: 2900 rpm

Additional Features

• Silicon Temperature Sensors: KTY84
• Max Speed: 5000 rpm
• Protection Class: IP23
• Mounting Position [IM]: B3
• Attached: H01-1024-S/R ENCODER

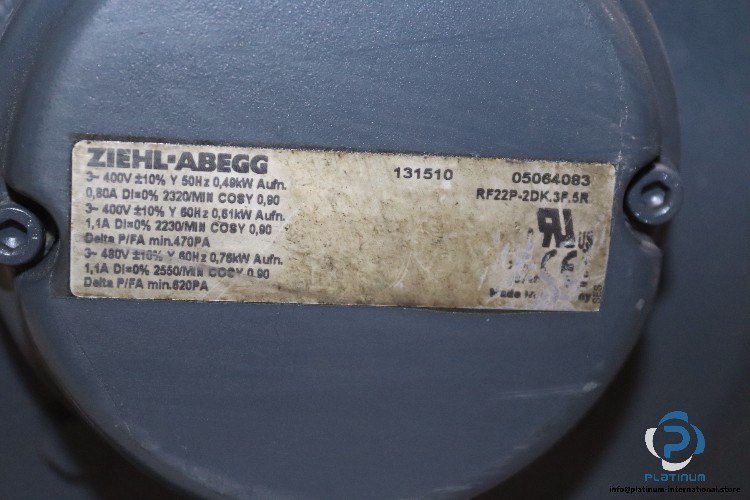

Cooling Fan “ ZIEHL-ABEGG RF22P-2DK-3F.5R

Manufacturer: ZIEHL-ABEGG
Type: Fan
Model: RF22P-2DK-3F.5R
Part No.: 131510 05064083

At 50 Hz:

• Rated Voltage: 400 V
• Rated Current: 0.80 A
• Rated Power: 0.49 kW
• Rated Speed: 2320 RPM

At 60 Hz:

• Rated Voltage: 400 V
• Rated Current: 1.1 A
• Rated Power: 0.61 kW
• Rated Speed: 2230 RPM

At 60 Hz (Alternate Voltage):

• Rated Voltage: 480 V
• Rated Current: 1.1 A
• Rated Power: 0.76 kW
• Rated Speed: 2550 RPM
