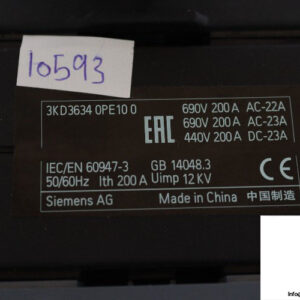

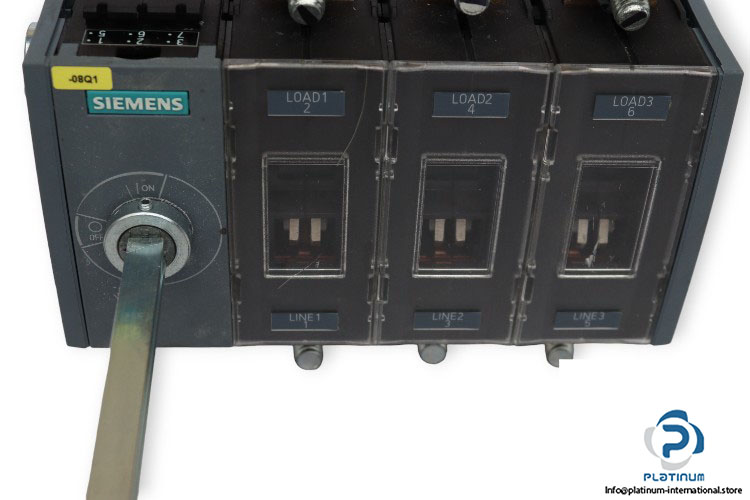

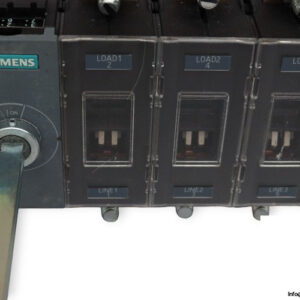

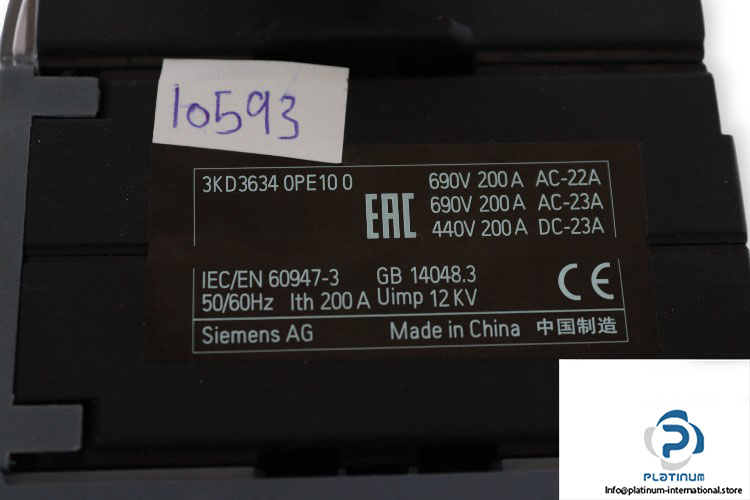

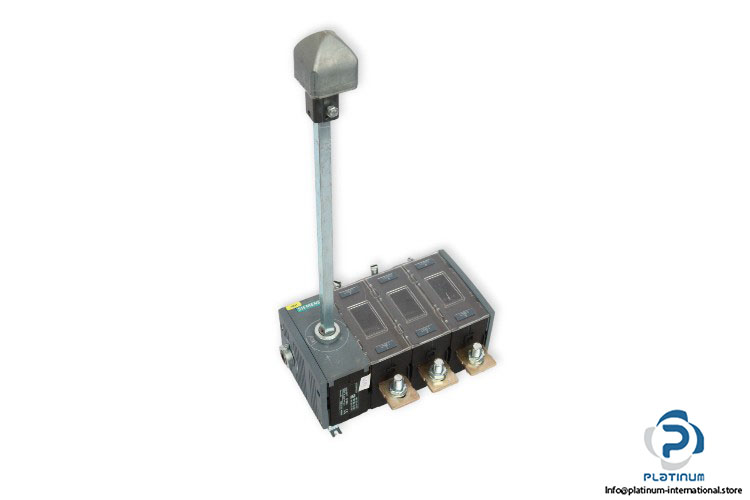

Siemens 3KD3634 0PE10 0 Switch Disconnector

Manufacture: Siemens
Type: Switch disconnector
MNR: 3KD3634 0PE10 0
Family: SENTRON

Design Of The Product: Switch
Design Of The Actuating Element: Basic Version With handle
Size Of Disconnecting Link: Size 3
Type Of Device: fixed mounting
Number of Poles: 3
Thermal current Ith: 200 A
Rated Operating Voltage: 440 V DC
Rated impulse with stand voltage Uimp: 12 kV
Operating Power: 132 kW
Switching capacity:
AC-22A: 690 V AC,200 A
AC-23A: 690 V AC,200 A
DC-23A: 440 V DC,200 A
No. of NC contacts for auxiliary contacts: 6
No. of NO contacts for auxiliary contacts: 6
Frequency: 50/60 Hz
Fastening Method: Screw fixing
Dimensions (W x D x H): 164 x 198.5 x 95 mm
Protection Class on the front: IP00
Operating Ambient Temperature: -25 … 70 °C
