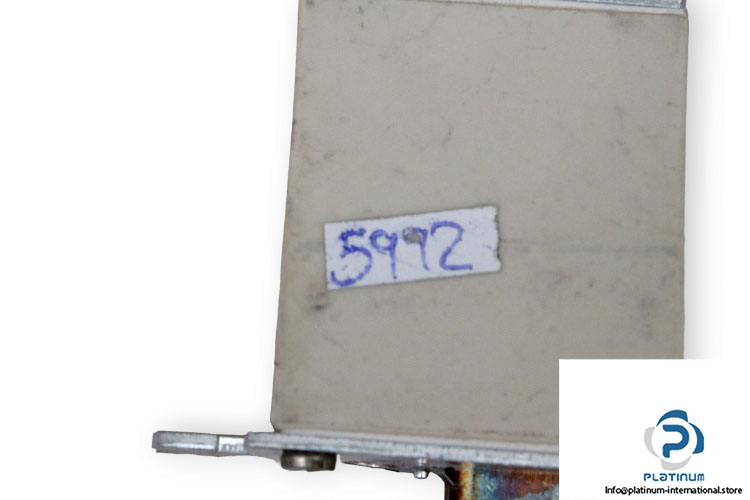

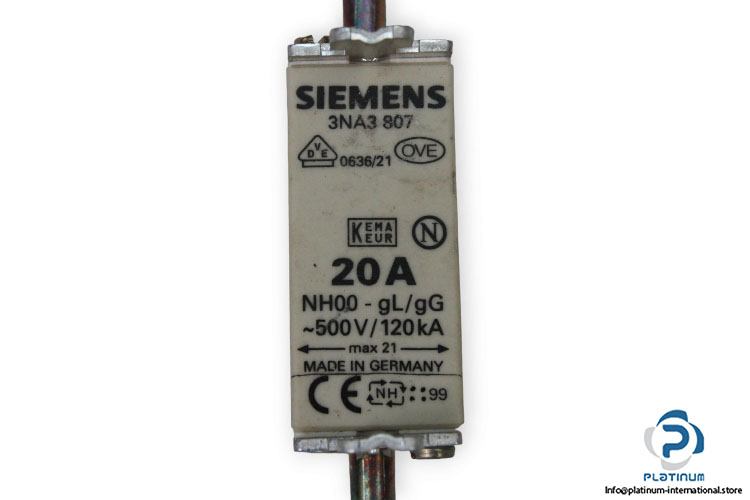

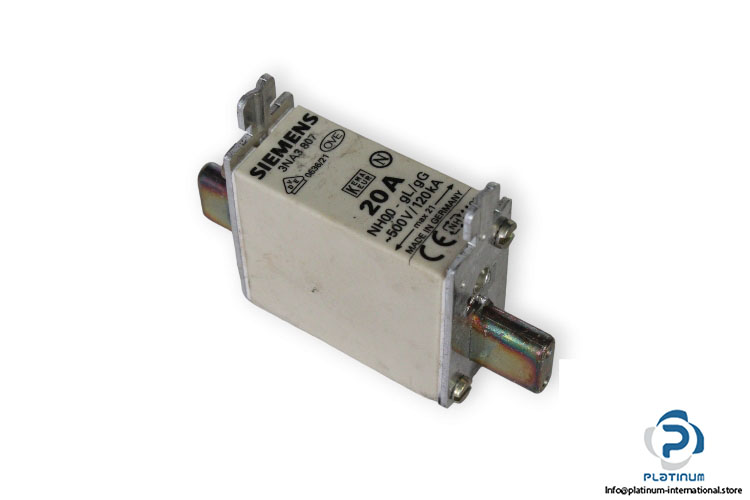

Siemens 3NA3 807 LV HRC Fuse Element

Manufacturer: SIEMENS
Type: LV HRC Fuse Element
Model: 3NA3807

Brand Name: SENTRON
Size: NH00
Designation: LV HRC Fuse Links / With Blade Contacts
Rated Current: 20 A
Supply Voltage: 500 V AC / 250 V DC
Switching Capacity Current: 120 kA
Switching Capacity Current: 25 kA / DC
Power Loss: 2.53 W
Operating Class: gG
Mounting Type: Non-Insulated Grip Lugs
Mounting Position: Any, Preferably Vertical
Identification Indicator: Front Indicators
Protection Proof: IP20
Width: 21 mm
Ambient Temperature: -5 … 40 °C
