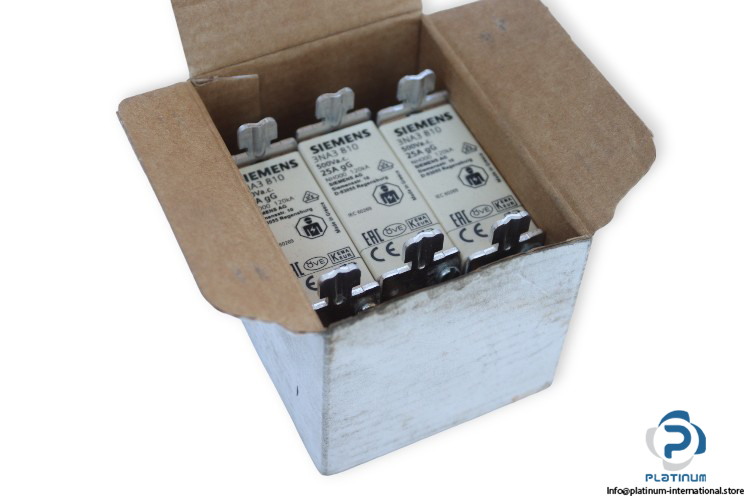

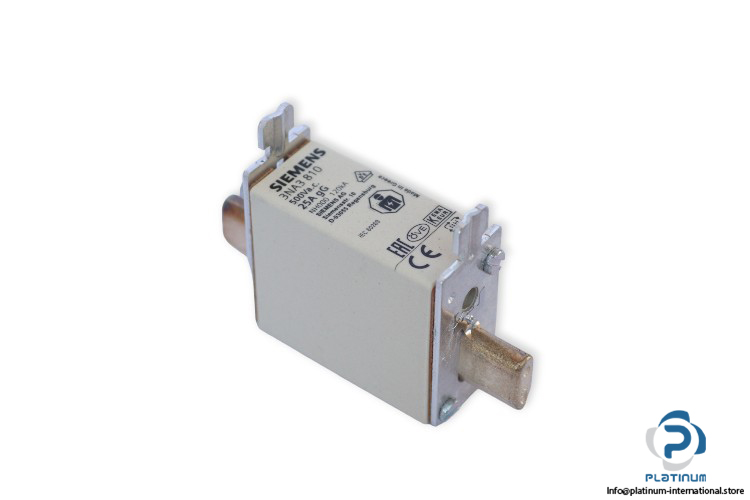

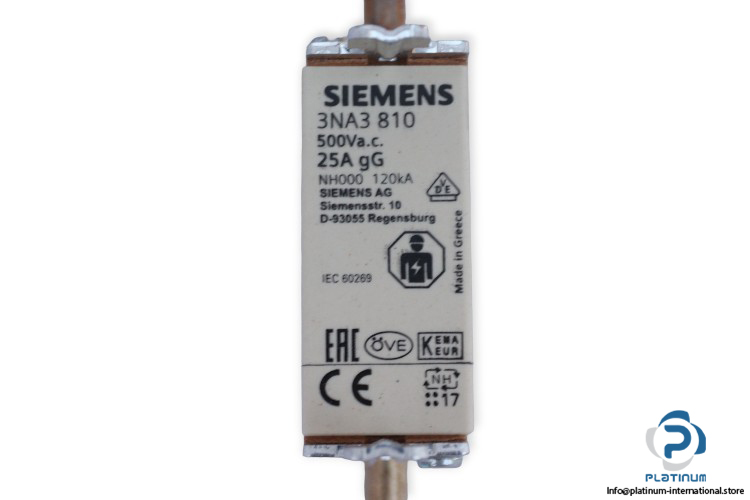

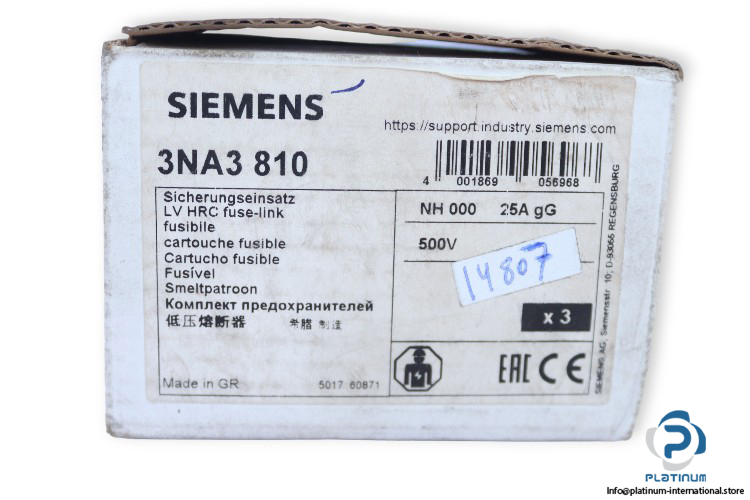

Siemens 3NA3 810 LV HRC Fuse Link

Manufacturer: SIEMENS
Type: LV HRC Fuse Link
Model: 3NA3810

Brand Name: SENTRON
Size: NH000
Designation: LV HRC Fuse Links / with Blade Contacts
Rated Current: 25 A
Supply Voltage: 500 V AC / 250 V DC
Switching Capacity Current: 120 kA
Switching Capacity Current: 25 kA / DC
Power Loss: 2.3 W
Operating Class: gG
Mounting Type: Non-Insulated Grip Lugs
Mounting Position: Any, preferably vertical
Identification Indicator: Front Indicators
Protection Proof: IP20
Ambient Temperature: -5 … 40 °C
Dimensions: 77.8 x 21 x 52.5 mm
