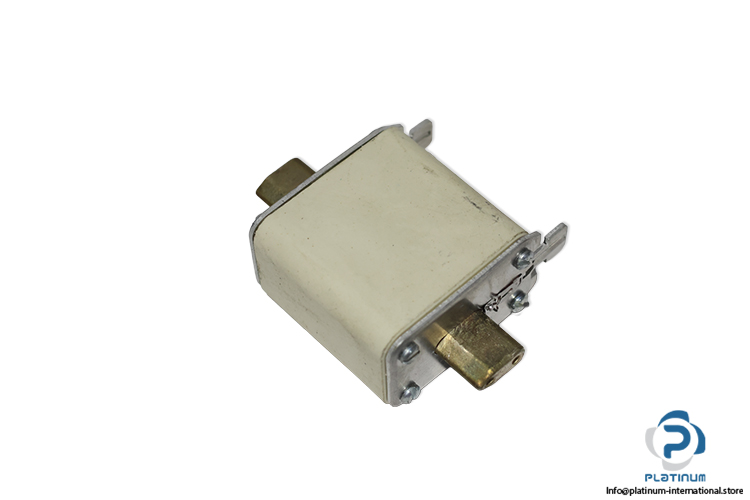

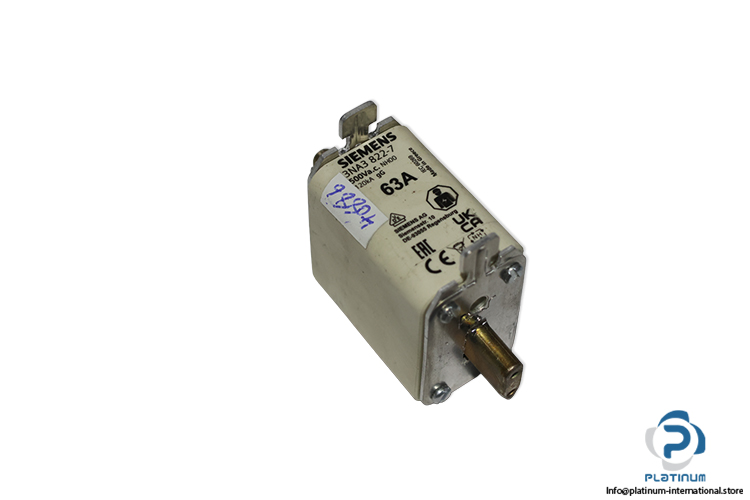

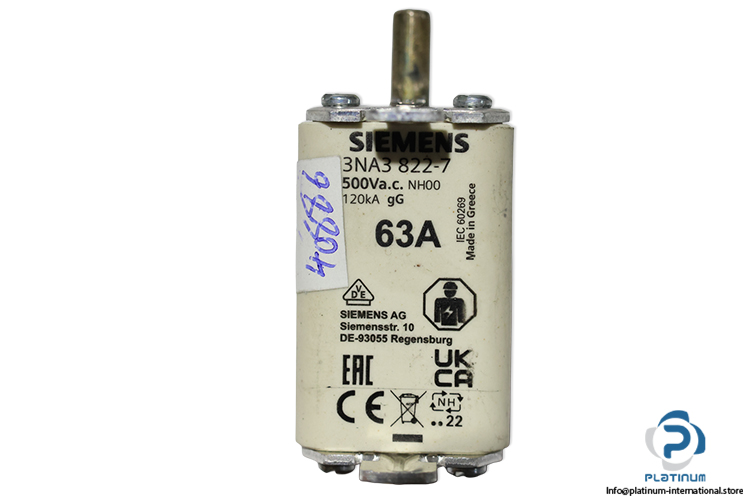

Siemens 3NA3 822-7 63A/500VAC Fuse Link
New
In stock5 unitsReady to ship
LV HRC Fuse Link The Siemens SENTRON 3NA3822-7 is LV HRC fuse link rated at 63 A, 500 V AC and 250V DC, featuring 120 kA AC and 25 kA DC breaking capacities with gG operating class for industrial circuit protection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| MNR | 3NA3822-7 |
| Series | 3NA3 |
| Brand Name | SENTRON |
| Designation | LV HRC Fuse Link |
| Size | NH00 |
| Rated Current | 63 A |
| Supply Voltage | 500 V AC / 250 V DC |
| Breaking Capacity at AC | 120 kA |
| Power Loss | 4.6 W |
| Operating Class | gG |
| Mounting Type | Non-insulated grip lugs |
| Mounting Position | Any, preferably vertical |
| Identification Indicator | Front indicators |
| Protection Proof | IP20 |
| Dimensions | 21 x 77.8 x 52.5 mm |
| Ambient Temperature | -5 to 40°C |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101716 |
| Weight | 0,17 |
