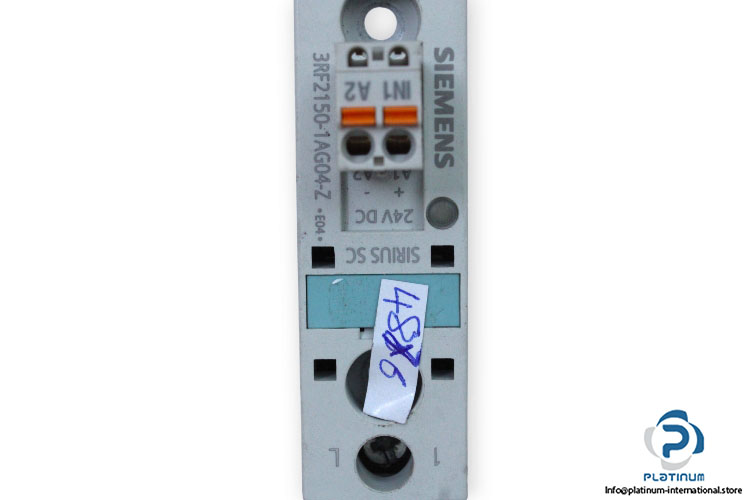

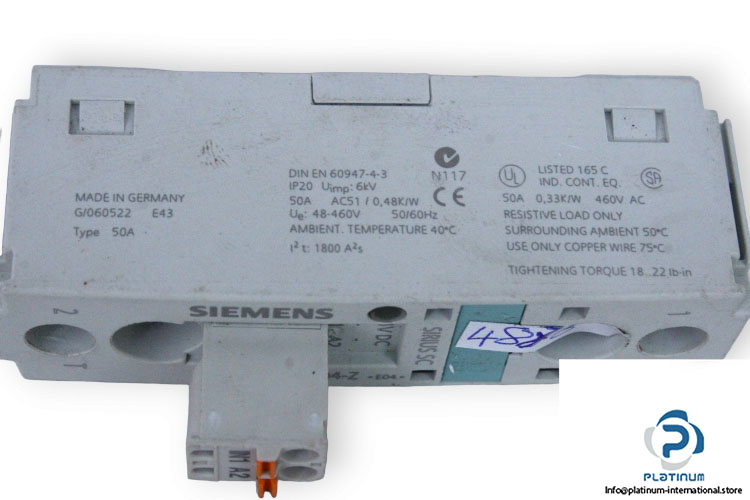

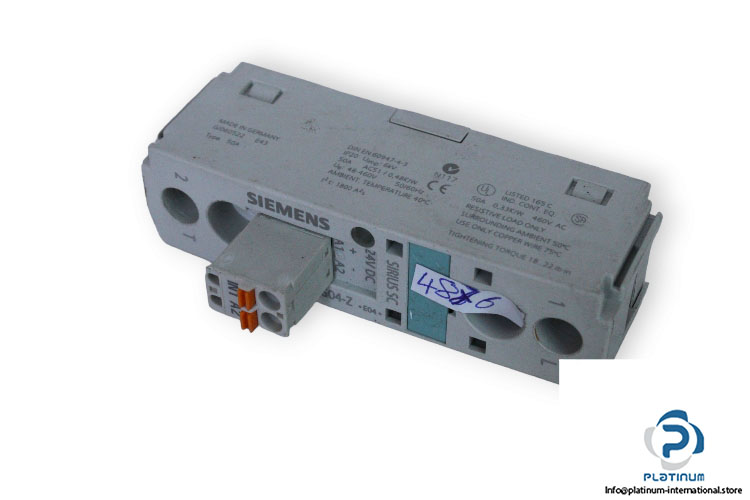

Siemens 3RF2150-1AG04-Z Semiconductor Relay

Manufacturer: SIEMENS
Type: Semiconductor Relay
Model: 3RF2150-1AG04-Z

power loss [V·A] maximum: 66 VA
power loss [W] for rated value of the current:
 at AC in hot operating state 66 W
 at AC in hot operating state per pole 66 W
 without load current share typical 0.4 W
insulation voltage rated value: 600 V
type of voltage of the control supply voltage: DC
surge voltage resistance of main circuit rated value: 6 Kv
operating voltage at AC
 at 50 Hz rated value 48 … 460 V
 at 60 Hz rated value 48 … 460 V
Ambient Temperature: -25 … +60 °C
Protection Class: IP20
