Siemens 3RG40 13-3CD00 Inductive Proximity Switch
New
Available on request
INDUCTIVE PROXIMITY SWITCH
Siemens 3RG40 13-3CD00 proximity switch from the BERO 3RG4 family, PNP design, flush mountable, 5 mm sensing range, IP67 rated with a shielded, nickel-plated brass housing for standard-duty industrial use.13-3CD003RG43RG405mmAutomationBeroConnectorFlushInductiveIndustrialIP67M12mountPNPProximityRangeSensingSensorSiemensSwitch
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SIEMENS 3RG40 13-3CD00 INDUCTIVE PROXIMITY SWITCH
The Siemens BERO 3RG4 inductive proximity switch is engineered for reliable detection and control in standard-duty industrial environments. With a flush-mountable, shielded brass body and robust IP67 enclosure rating, it ensures durability and precision performance in challenging conditions.
Manufacturer: SIEMENS
Type: Inductive Proximity Switch
Model Reference Number (MRN): 3RG40 13-3CD00
Part Number: LO9934
Family: BERO 3RG4
| Application | Standard Duty |
| Sensing Range | 5 mm |
| Rated Operational Voltage | 15 / 34 V DC |
| Rated Operational Current | 200 mA |
| Electrical Design | PNP |
| Switching Output Function | Normally Open / Normally Closed |

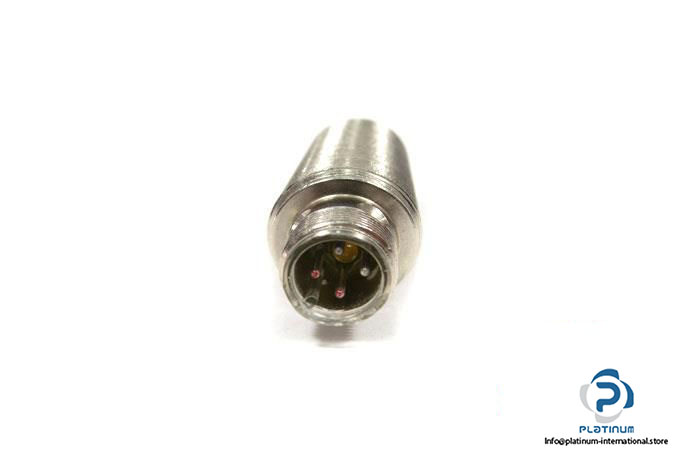

| Connection Type | M12 Connector, 4 Pin |
| Enclosure Rating | IP67 |
| Housing | Threaded Type |
| Diameter / Housing Length | 18 mm / 69 mm |
| Material | Shielded Brass, Nickel Plated |
| Mounting | Flush Mountable |
