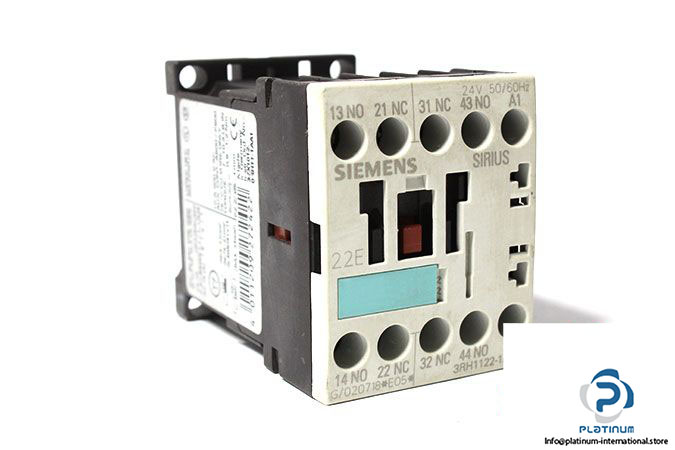

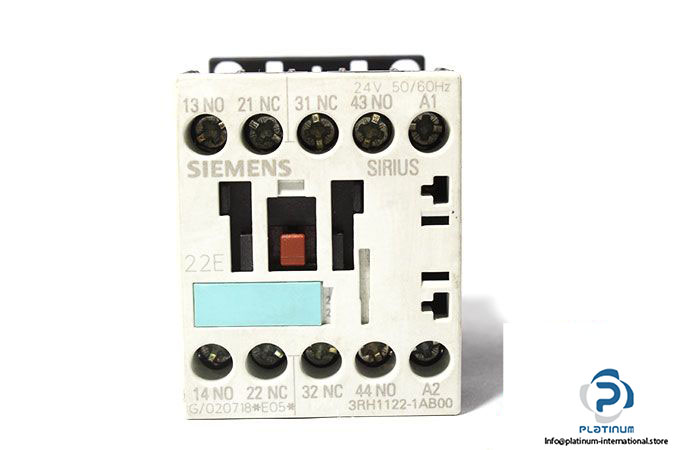

Siemens 3RH1122-1AB00 Contactor Relay

Manufacturer: Siemens

Type: Contactor Relay

Brand Name: Sirius

Model: 3RH1122-1AB00

Successor Type: 3RH2122-1AB00

Designation: Auxiliary Contactor

Size: S00

Identification Number: 22E

Control Supply Voltage: 24 V AC

Control Supply Voltage Frequency: 50 … 60 Hz

Rated Operating Current:

6 A (230 V AC)

3 A (400 V AC)

Auxiliary Contacts:

2 Normally Open

2 Normally Closed

(2NO and  2NC)

Rated Insulation Voltage: 690 V AC

Rated Surge Voltage: 6 kV

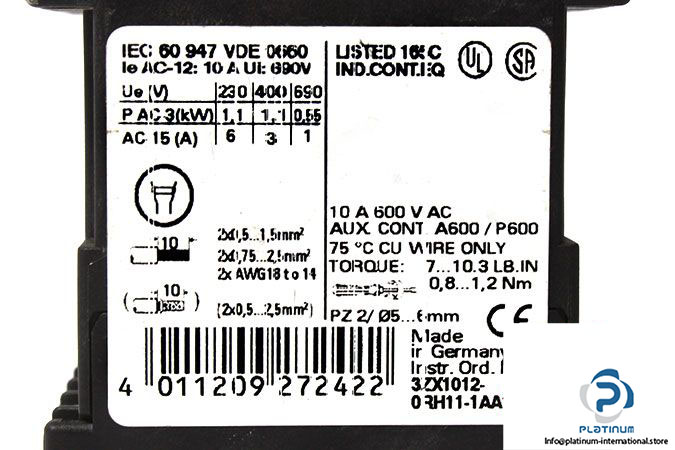

Standard: IEC 60947 / VDE 0660

Protection Class IP: IP20

Operation Ambient Temperature: -25 … 60 °C

Dimensions (W x D x H): 45 x 72 x 57.5 mm

Weight: 0.19 kg
