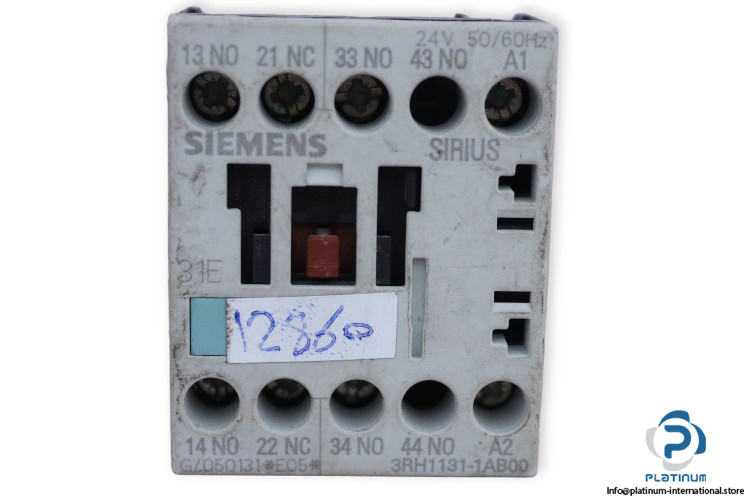

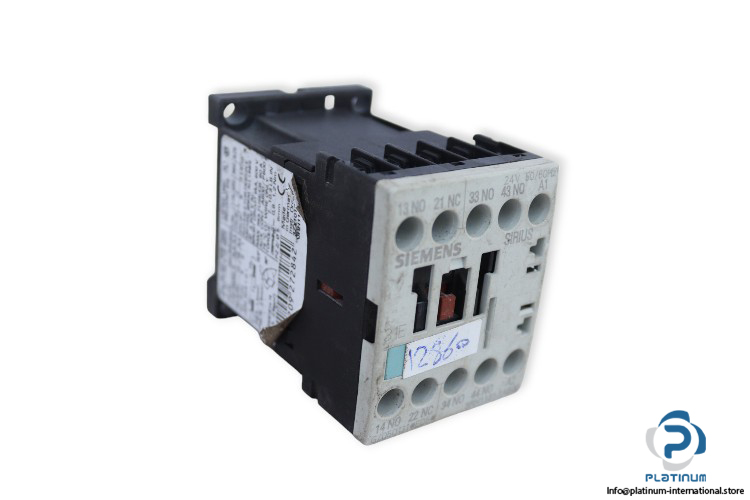

Siemens 3RH1131-1AB00 Contactor Relay

Manufacturer: SIEMENS
Type: Contactor Relay
Series: SIRIUS
Model: 3RH1131-1AB00
Successor: 3RH2131-1AB00

Supply Voltage: 24 V AC,50 … 60 Hz
Rated insulation voltage Ui: 690 V AC
Rated operational current AC-1: 22 A
Rated operational current AC-15 @ 400 V: 3 A
Rated operational current AC-15 @ 230 V: 6 A
Rated operational current AC-3 @ 400 V: 12 A
No. of Contacts: 3 NO + 1 NC
Enclosure Rating: IP20
Dimensions: 57.5 x 45 x 72 mm
Ambient temperature: -20 … 60°C
Size: S00
