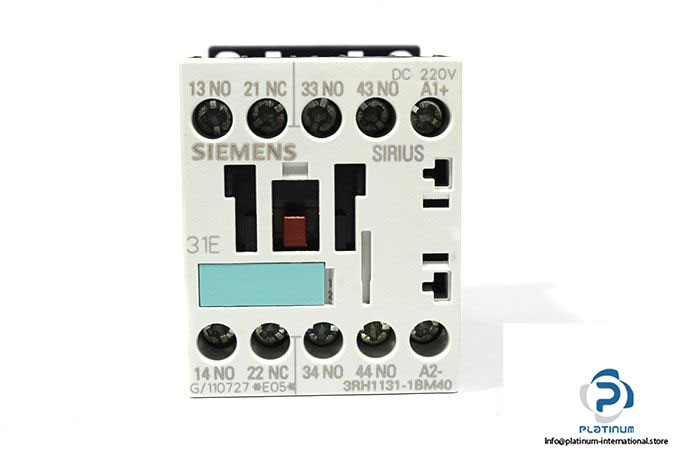

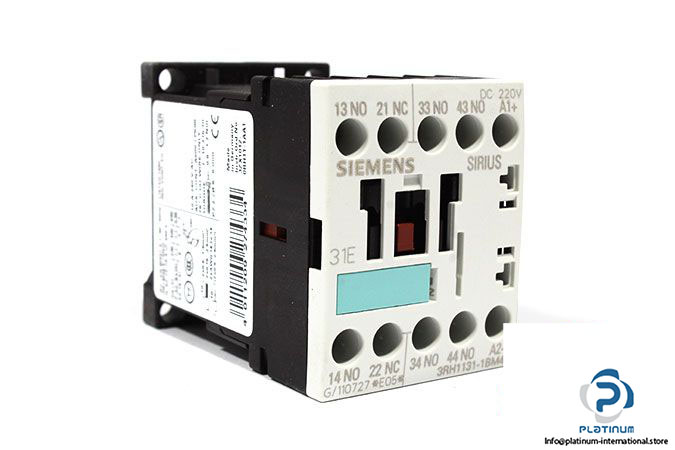

Siemens 3RH1131-1BM40 Contactor Relay

Manufacturer: Siemens
Type: Contactor Relay
Brand Name: Sirius
Model: 3RH1131-1BM40
Successor Type: 3RH2131-1BM40
Designation: Auxiliary Contactor

Size: S00
Identification Number: 31E
Control Supply Voltage: 220 V DC
Rated Operating Current:
6 A (230 V AC)
3 A (400 V AC)
Rated Power:
1.1 kW (230 V AC)
1.1 kW (400 V AC)
Auxiliary Contacts:
3 Normally Open
1 Normally Closed
(3NO and 1NC)
Rated Insulation Voltage: 690 V AC
Rated Surge Voltage: 6 kV
Standard: IEC /EN 60947-5-1
Protection Class IP: IP20
Operation Ambient Temperature: -25 … 60 °C
Dimensions (W x D x H): 45 x 72 x 57.5 mm
