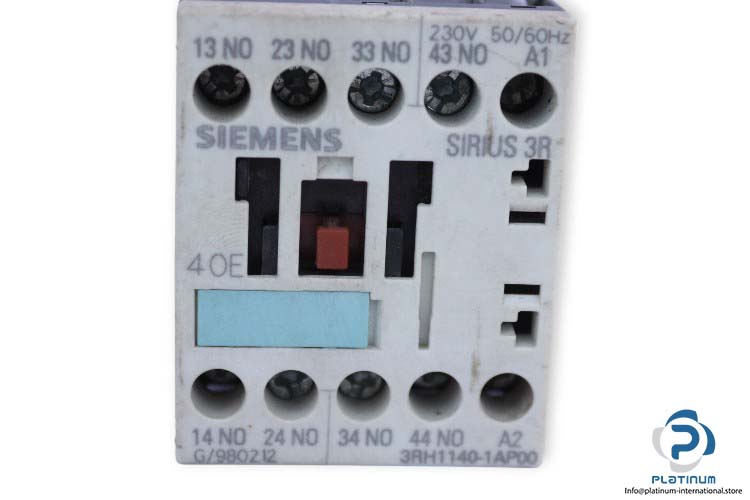

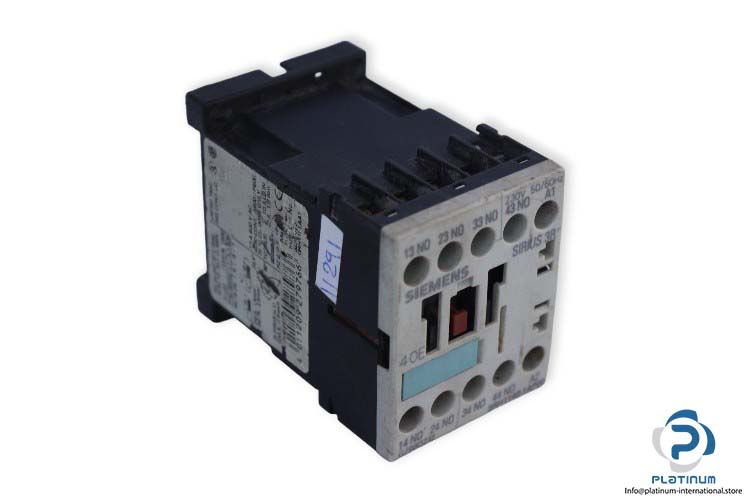

Siemens 3RH1140-1AP00 Contactor Relay

Manufacturer: Siemens
Type: Contactor Relay
Brand Name: SIRIUS
MNR: 3RH11401AP00
Successor Type: 3RH2140-1AP00
Designation: Auxiliary Contactor

Size: S00
Identification Number: 40E
Control Supply Voltage: 230 V AC
Control Supply Voltage Frequency: 50 … 60 Hz
Rated Operating Current:
6 A (230 V AC)
3 A (400 V AC)
Rated Operating Power:
1.1 kW (230 V AC)
1.1 kW (400 V AC)
Auxiliary Contacts: 4 Normally Open (4NO)
Rated Insulation Voltage: 690 V AC
Rated Surge Voltage: 6 kV
Standard: IEC /EN 60947 / VDE 0660
Protection Class IP: IP20
Operation Ambient Temperature: -25 … 60 °C
Dimensions (W x D x H): 45 x 72 x 57.5 mm
