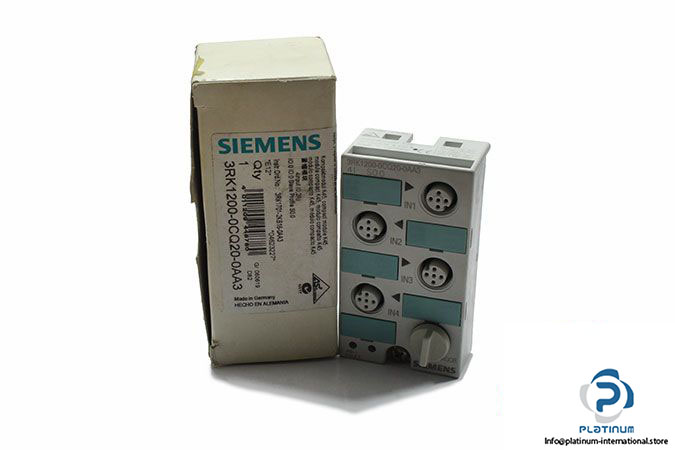

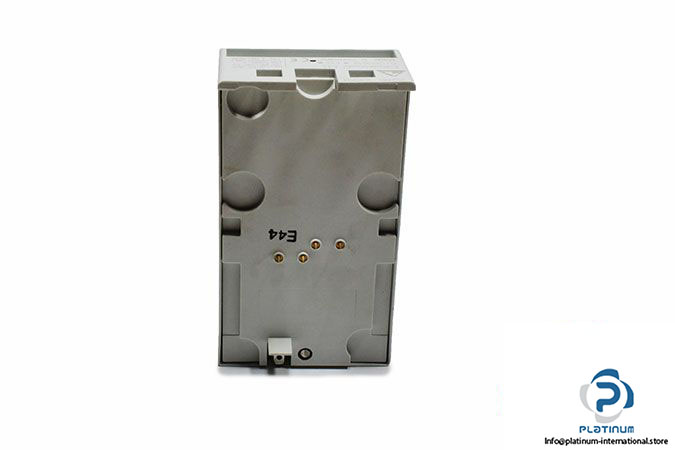

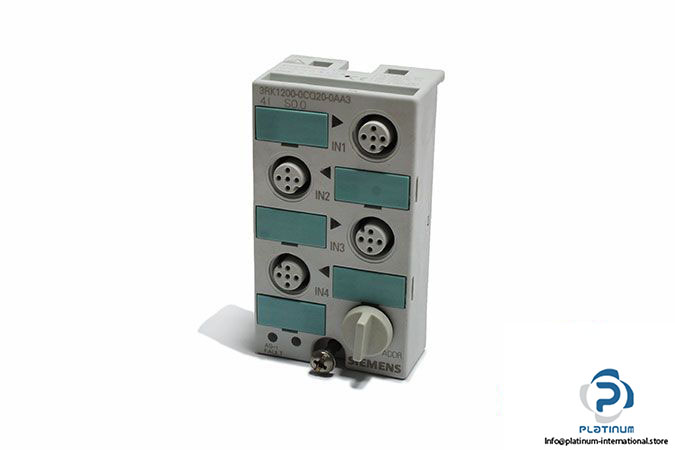

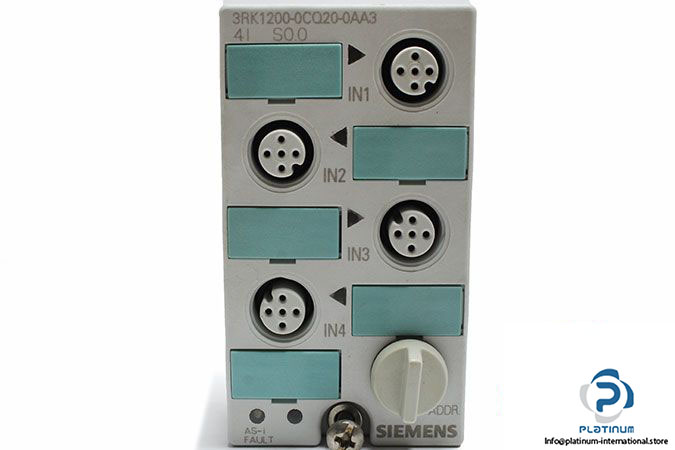

Siemens 3RK1200-0CQ20-0AA3 AS-Interface Compact Module

Manufacturer: SIEMENS

Type: As-Interface Compact Module

Model: 3RK1200-0CQ20-0AA3

Operating Voltage: 26.5 … 31.6 V

Interface Total Current Input: max. 270 mA

Design of the Product: digital I/O modules for operation in the field, IP67 – K4

Number of Digital Inputs: 4

Type of Connection: 2- and 3-wire technology

Input Circuit: PNP transistor

Inputs Switching Level High: min. 10 V

Type of Electrical Connection: M12 screw-type terminals

Protection Class: IP67

Ambient Temperature: 25 … +85 °C

Dimensions: 80 X 45 X 30 mm
