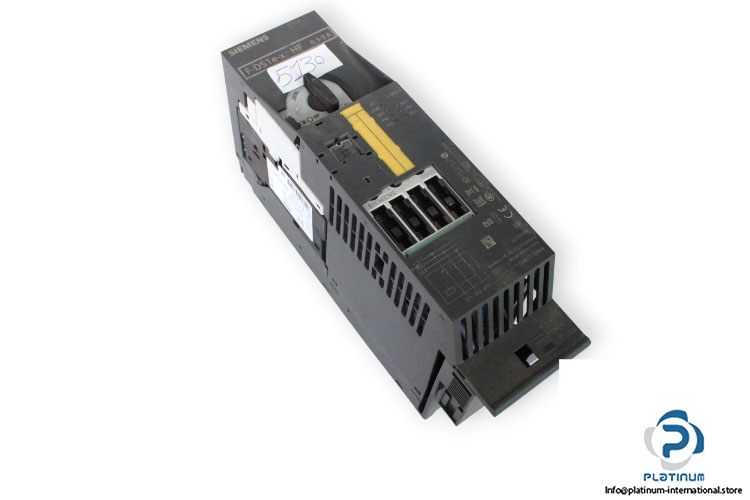

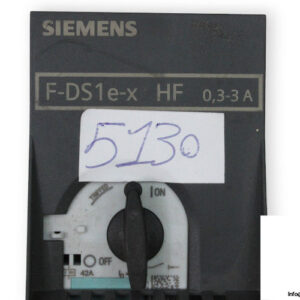

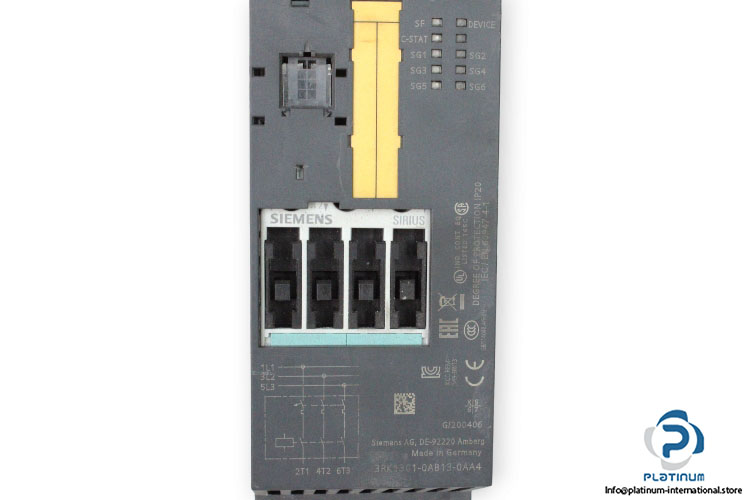

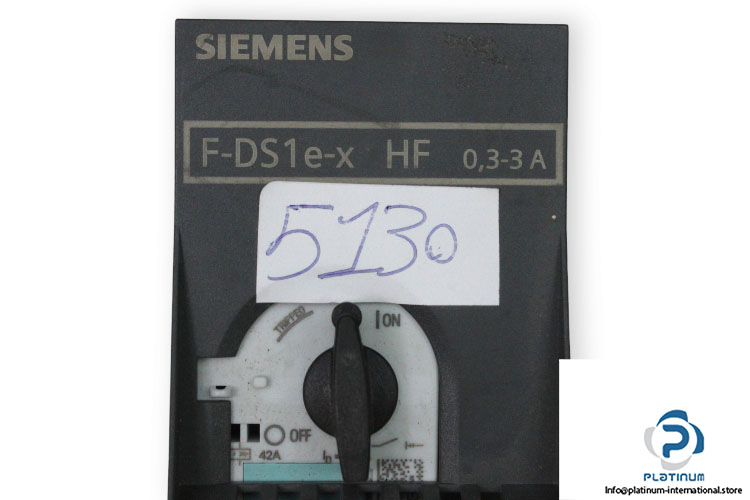

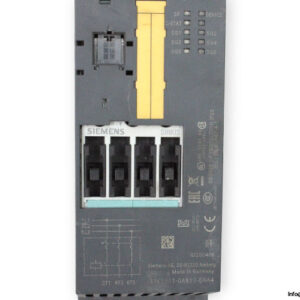

Siemens 3RK1301-0AB13-0AA4 Direct Starter

Manufacturer: Siemens
Type: Direct Starter
Model: 3RK1301-0AB13-0AA4

Supply Voltage: 24 V DC
Insulation Voltage: 500 V
No. of Poles: 3
Current: 0.3 … 3 A
No. of Digital Input: 2

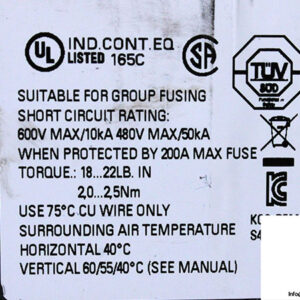

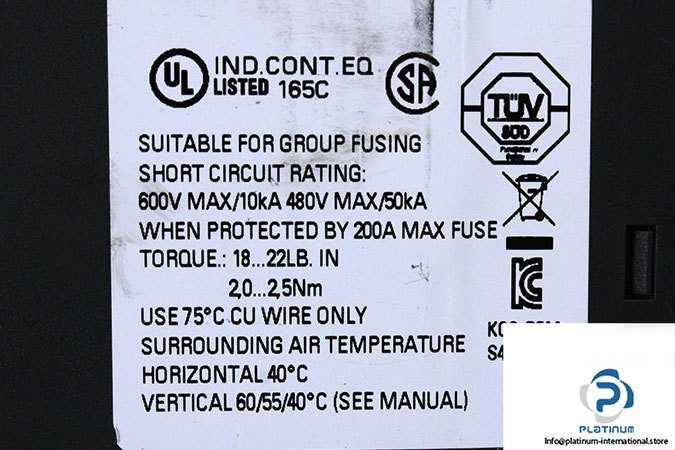

Short Circuit Rating: 600 V max./10 kA 480 V Max./50 kA
Torque: 2 … 2.5 Nm
Operating Temperature: -20 … 60 °C
Degree of protection: IP20
Dimensions: 290 X 65 X 150 mm

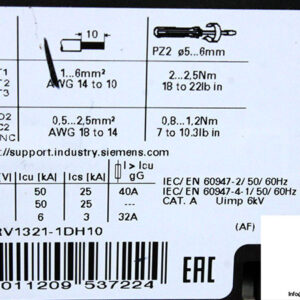

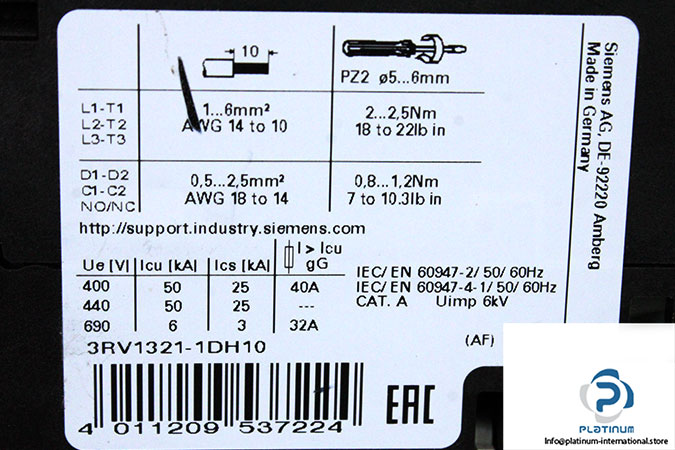

              SIEMENS 3RV1321-1DH10 CIRCUIT BREAKER

Manufacturer: Siemens
Type: Circuit Breaker
Model: 3RV1321-1DH10
Successor: SIRIUS 3RV2

Size: S0
Rated Current: 3.2 A
Power Loss: 3.5 W
Operating Voltage: 690 V
Breaking Capacity: 50 … 6 kA (400 … 690 V)
Maximum overcurrent protection: 40 A / 32 A (400 V / 690 V)
Dimension: 97 X 45 X 96 mm
