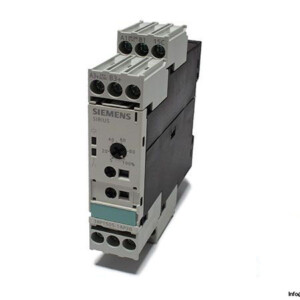

Siemens 3RP1505-1AP30 Time Relay
Used
In stock1 unitReady to ship
TIME RELAY
Siemens 3RP15 05-1AP30 time relay with 24 VAC and 200“240 VAC supply, 0.05 s to 100 hrs timing range, IP20 protection, and versatile mounting options.AdjustableAutomationControlDeviceIECIndustrialmountPanelPrecisionrailRelaySiemensStandardTimeTimerTiming
New
Available on request
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

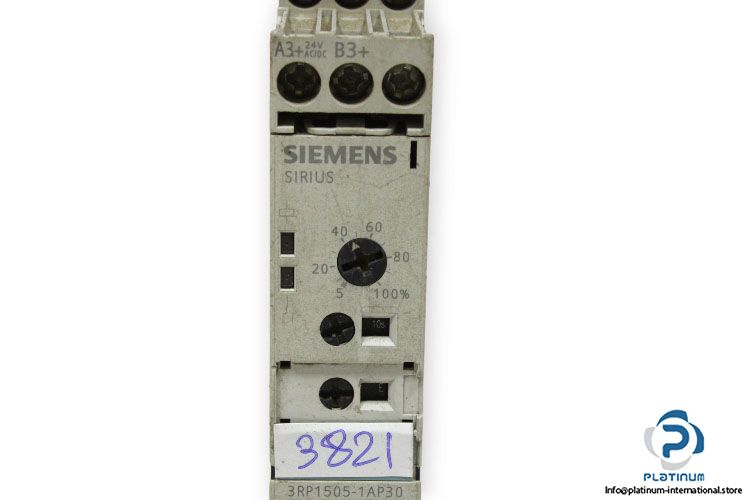

SIEMENS 3RP15 05-1AP30 TIME RELAY
The Siemens 3RP15 05-1AP30 is a high-quality time relay designed for precise timing control in industrial automation systems. Built to meet IEC/EN 61812-1 standards, it offers wide operating voltage compatibility, multiple mounting options, and a broad timing range for versatile applications.
Manufacturer: Siemens
Type: Time Relay
Model: 3RP15 05-1AP30
Standard: IEC/EN 61812-1
| Control Supply Voltage | 24 VAC, 200 / 240 VAC |
| Frequency | 50-60 Hz |
| Time Range | 0.05 s / 100 hrs |
| Active Power Loss | 2 W |
| Operating Current | 3 A |
| Tightening Torque | 0.8 / 1.2 N·m |
| Degree of Pollution | 3 |
| Mounting Type | Screw and snap-on mounting onto 35 mm standard mounting rail |
| Ambient Temperature | -25 / +60 °C |
| Protection Class | IP20 |
| Dimensions | 22.5 × 91 × 102 mm |
