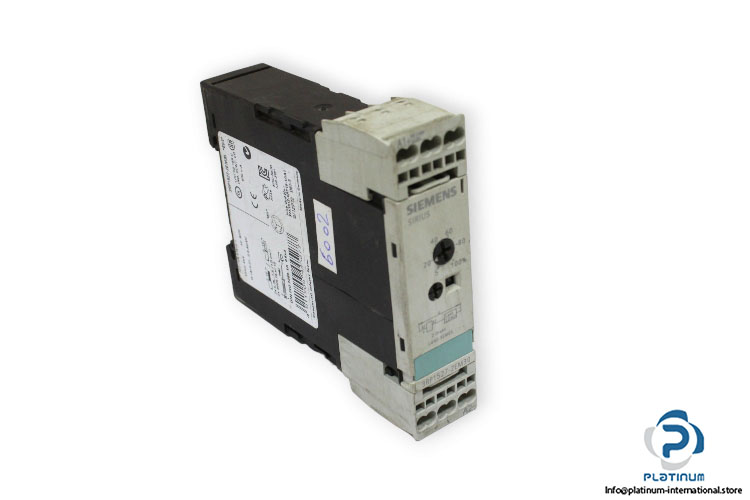

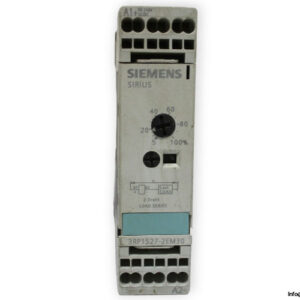

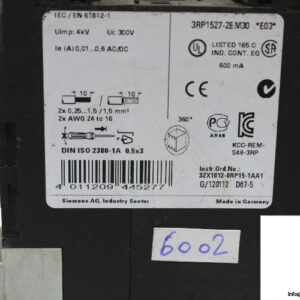

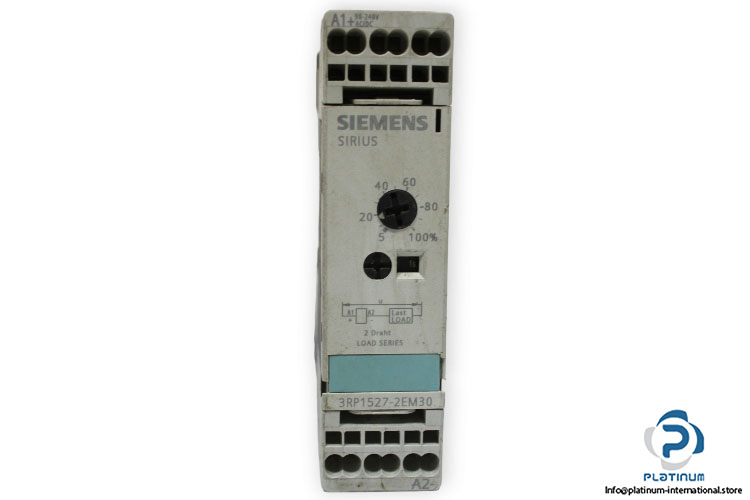

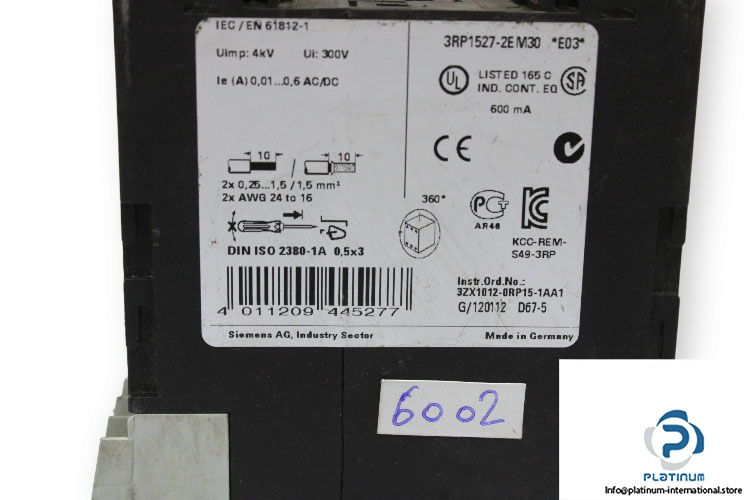

Siemens 3RP1527-2EM30 Timing Relay

Manufacturer: SIEMENS
Type: Timing Relay
Brand: SIRIUS
Model: 3RP1527-2EM30

adjustable time: 0.05 … 240 s
power loss max.: 1 W
insulation voltage for overvoltage category: 300 V
degree of pollution: 3
surge voltage resistance rated value: 4 000 V
protection class IP: IP20
shock resistance according to IEC 60068-2-27: 11g / 15 ms
vibration resistance according to IEC 60068-2-6: 10 … 55 Hz
recovery time: 50 ms
relative repeat accuracy: 1 %
influence of the surrounding temperature: ±5 %
control supply voltage 1 at AC
at 50 Hz 90 … 240 V
at 60 Hz 90 … 240 V
initial value: 0.8
full-scale value: 1.1
Working temperature: -25 … +60 °c
Size: 84 x 22.5 x 91 mm
