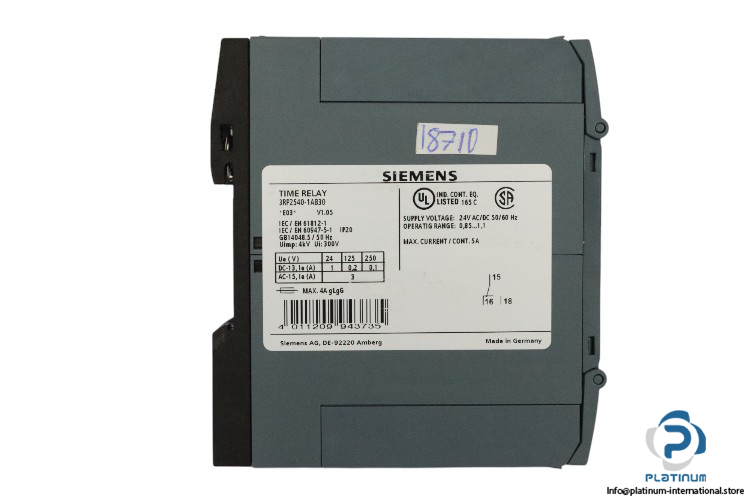

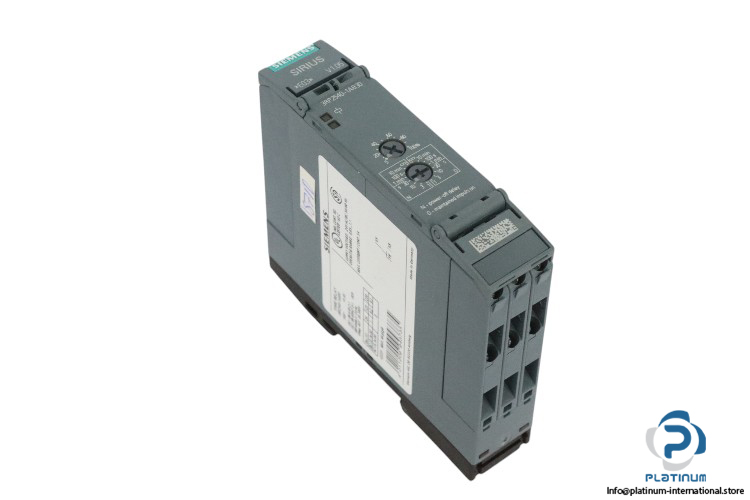

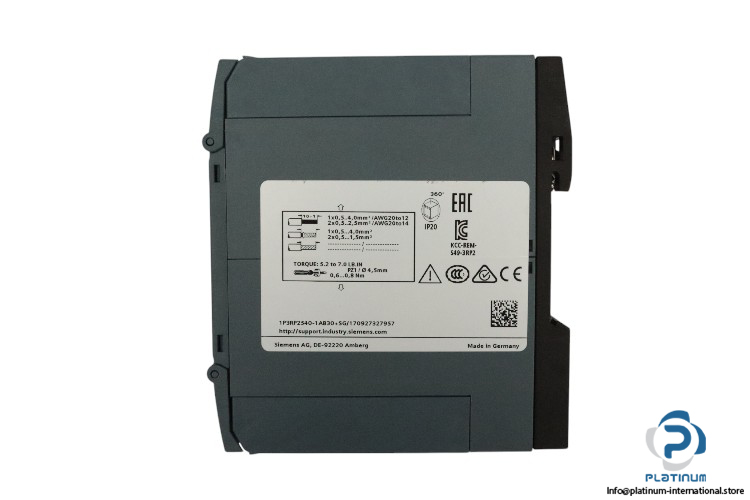

Siemens 3RP2540-1AB30 Time Relay
Siemens 3RP25401AB30 SIRIUS Time Relay “ Adjustable 0.05s to 600s, OFF-Delay, 24V AC/DC, 5A, IP20, industrial-grade relay for automation and control applications.
Siemens 3RP25401AB30 SIRIUS Time Relay “ 24V AC/DC, 0.05s to 600s, OFF-Delay
The Siemens 3RP25401AB30 SIRIUS **time relay** is a **versatile timing control device**, designed for **precise automation and control applications**. Featuring **OFF-delay functionality without control signal**, a **wide adjustable time range of 0.05 to 600 seconds**, and **non-volatile passing make contact**, this relay ensures **reliable operation in industrial environments**.
Key Product Details:
Manufacturer: Siemens
Type: Time Relay
MNR: 3RP25401AB30
Brand: SIRIUS
Design of the Product: OFF-delay without control signal, non-volatile, passing make contact
Operating Current (Ie):
Built for **precision timing applications**, the Siemens 3RP25401AB30 time relay provides **accurate delay control, high electrical endurance, and seamless integration into automation systems**, making it **ideal for industrial control panels, motor control, and process automation**.
| Adjustable Time | 0.05 to 600 seconds |
| Insulation Voltage Rated Value (Ui) | 300 V |
| Thermal Current (Ith) | 5 A |
| At AC-15 | 24V, 125V, 250V “ 3 A |
| At DC-13 | 24V “ 1 A, 125V “ 0.2 A, 250V “ 0.1 A |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Active Power Loss | 2 W |
| Control Supply Voltage | 24 V AC/DC |
| Contact | 1 Change-Over Contact |
| Time Range | 7 Time Ranges |
| Standards | IEC/EN 61812-1, IEC/EN 60547-5-1 |
| Degree of Pollution | 3 |
| Protection Class | IP20 |
| Ambient Operating Temperature | -25 to 60°C |
| Dimensions | 100 x 22.5 x 90 mm |
