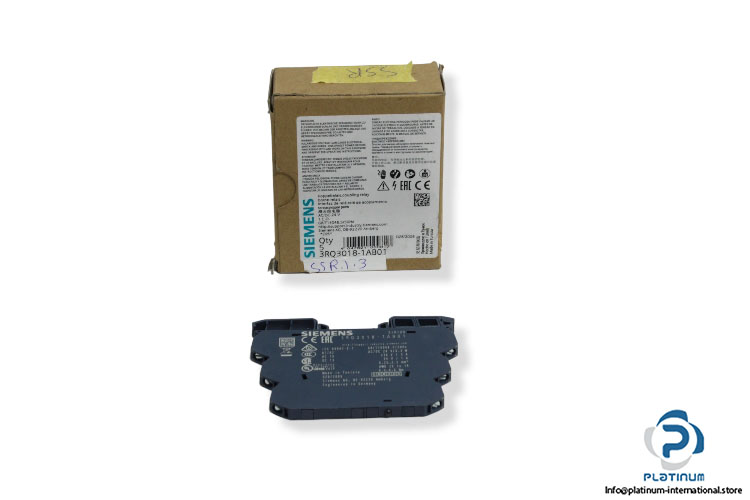

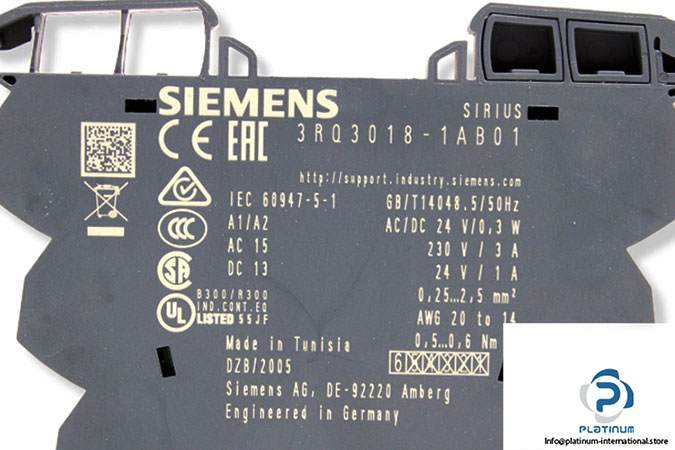

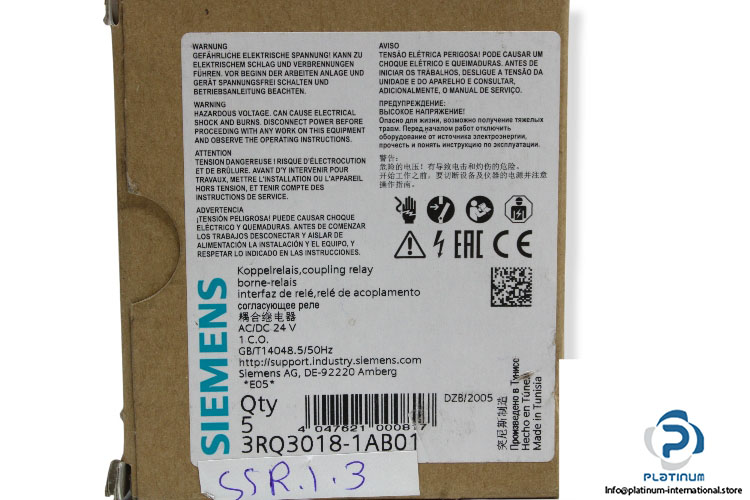

Siemens 3RQ3018-1AB01 Output Coupler Relay
OUTPUT COUPLER RELAY
SIEMENS 3RQ3 018-1AB01 is a SIRIUS series output coupler relay supporting 24 V AC/DC with 1 A and 3 A current ratings. Compact, durable, and ideal for control applications requiring high switching reliability.SIEMENS 3RQ3 018-1AB01 OUTPUT COUPLER RELAY
The SIEMENS 3RQ3 018-1AB01 Output Coupler Relay from the renowned SIRIUS family is engineered to deliver reliable switching performance in industrial control systems. Designed for safety and precision, this relay module is ideal for interfacing with PLC outputs or automation signals in demanding environments.
Manufacturer: SIEMENS
Type: OUTPUT COUPLER RELAY
Model: 3RQ3 018-1AB01
Family: SIRIUS
| Supply Voltage | 24 V AC/DC |
| Operational Current | 1 A (DC-13 at 24 V), 3 A (AC-15 at 230 V) |
| Power Consumption | 0.3 W |
| Frequency | 48.5 / 50 Hz |
| Conductor Cross-Section | 0.25 / 2.5 mm² |
| AWG Number | 20 / 14 |
| Type of Connection | Screw-type terminals |
| Tightening Torque | 0.5 / 0.6 N·m |
| Standard Compliance | IEC 68947-5-1, GB/T14048.5/50HZ |
| Ambient Temperature Range | -25 / +60 °C |
| Protection Class | IP20 |
| Dimensions (H x W x D) | 93 x 6.2 x 72.5 mm |
