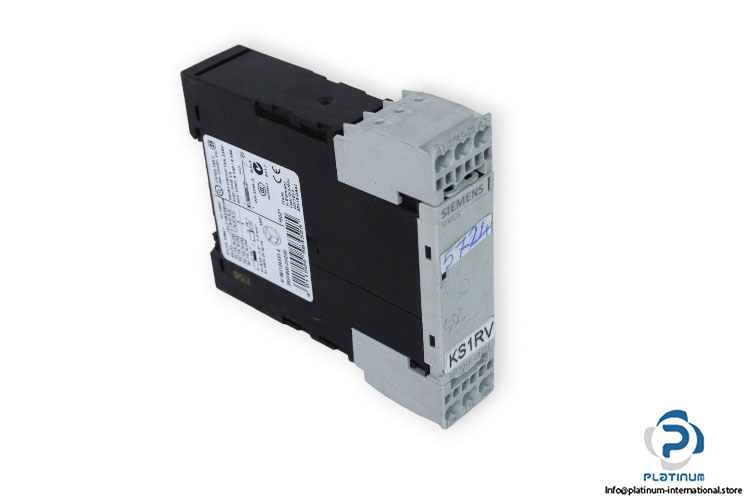

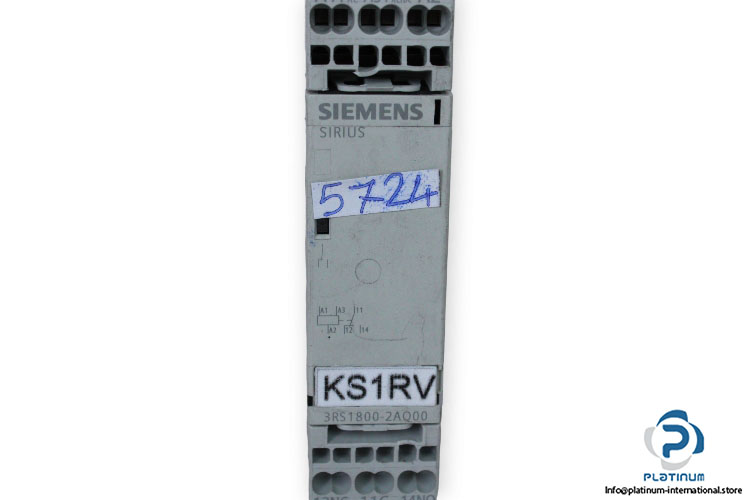

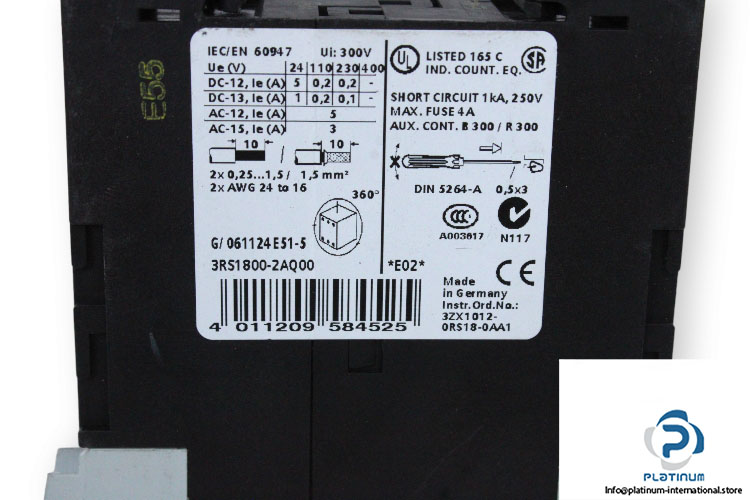

Siemens 3RS1800-2AQ00 Coupling Relay

Manufacturer: Siemens
Type: Coupling Relay
Model: 3RS1800-2AQ00

Rated Insulation Voltage: 300 V
Short Circuit: 1 kA, 250 V
Max. Fuse: 4 A
Contact Configuration: 1 Changeover
Contact Voltage: 24 … 230 V DC/ 24 … 400 V AC
Contact Current: 5 … 0.2 A/ 1 … 01 A (DC),  5 A (AC), 3 A (AC)
Type of Electrical Connection: Spring-Loaded Terminals
Fastening Method: Screw And Snap-On Mounting Onto 35 Mm DIN Rail
Switching Behavior: Monostable
Operating Temperature: -25 … 60 °C
Degree of protection: IP20
Dimensions: 84 X 22.5 X 91 mm
