Siemens 3RT1016-1JB42 Power Contactor
New
Available on request
27,50$
POWER CONTACTOR
Siemens Sirius 3RT1016-1JB42 compact power contactor with 4 kW rating, 6 A (230 V AC) and 3 A (400 V AC) current, 17“30 V DC control voltage, IP20 protection, and IEC/EN 60947-4-1 compliance.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

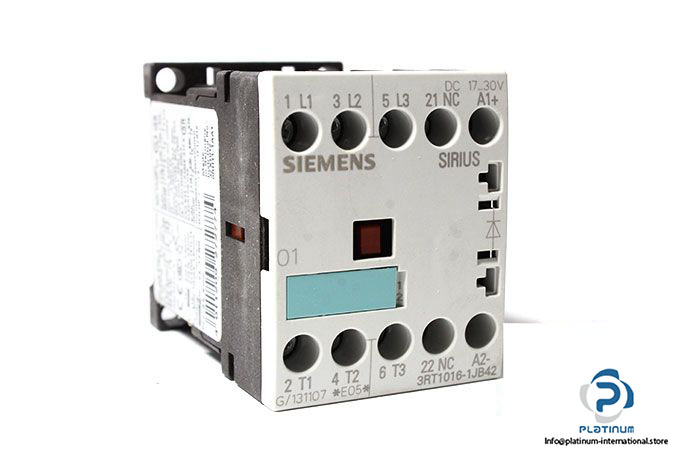

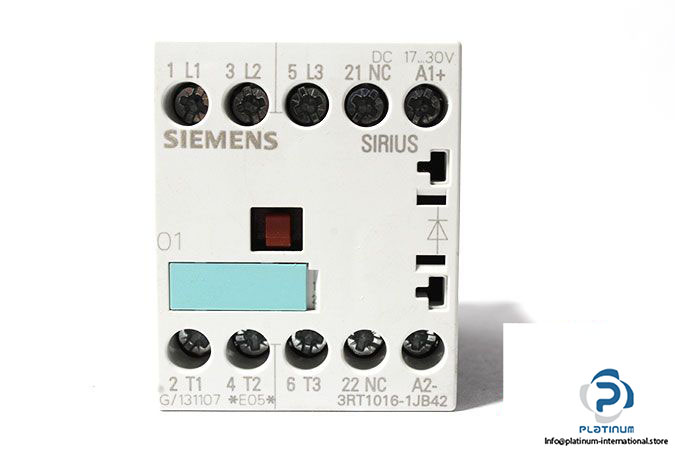

SIEMENS SIRIUS 3RT1016-1JB42 POWER CONTACTOR
The Siemens Sirius 3RT1016-1JB42 is a compact and reliable power contactor designed for controlling electric motors and switching power circuits. Built to meet IEC/EN 60947-4-1 standards, it offers high performance, long service life, and suitability for various industrial applications.
Manufacturer: Siemens
Type: Power Contactor
Brand Name: Sirius
Model: 3RT1016-1JB42
Successor Type: 3RT2016-1JB42
INST ORD NO: 3ZX1012-0RH11-1AA1
REF NO: 01014009
Size: S00
| Control Supply Voltage | 17 / 30 V DC |
| Rated Operating Power | 4 kW (400 V AC) |
| Rated Operating Current | 6 A (230 V AC), 3 A (400 V AC) |
| Auxiliary Contacts | 1 Normally Closed (1NC) |

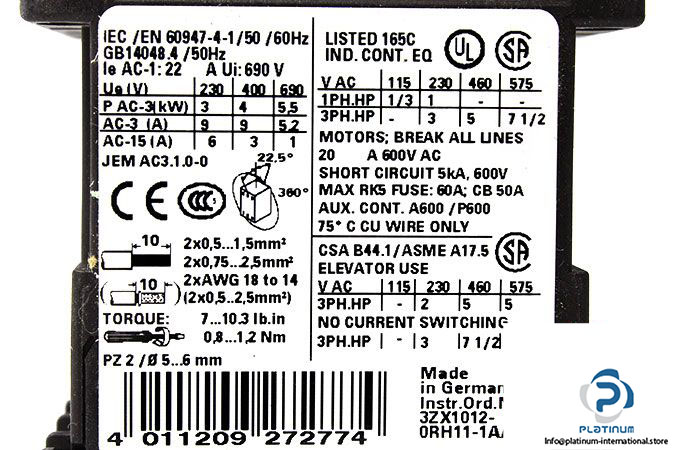

| Standard | IEC /EN 60947-4-1 |
| Protection Class IP | IP20 |
| Operation Ambient Temperature | -25 / 60 °C |
| Dimensions (W x D x H) | 45 x 72 x 57.5 mm |
