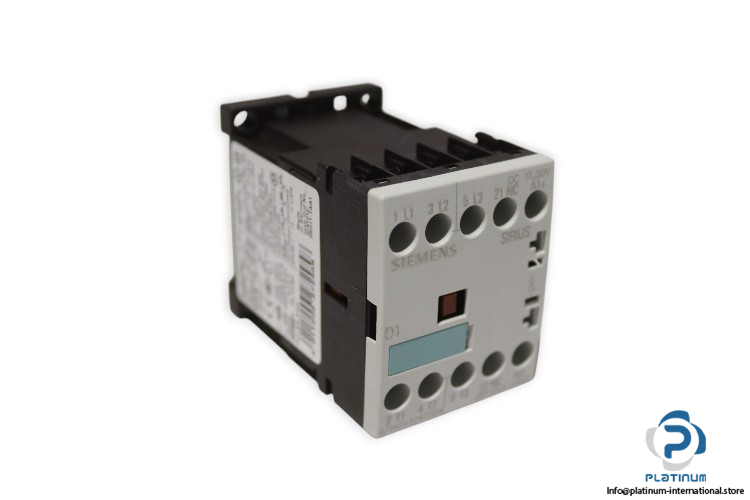

Siemens 3RT1017-1KB42 Power Contactor
New
In stock4 unitsReady to ship
29,99$
POWER CONTACTOR
Siemens 3RT1017-1KB42 power contactor with 17“30 V control voltage range, 690 V insulation, AC-3 motor ratings up to 7.5 kW, 3 NO + 1 NC contacts, and 22.5 mm mounting width.+GF+122A33RT1017-1KB427.5kWAC3.1.0-1AutomationContactorcouplingIndustrialJEMmotorNCNOPowerRelaySiemensSwitchgear
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

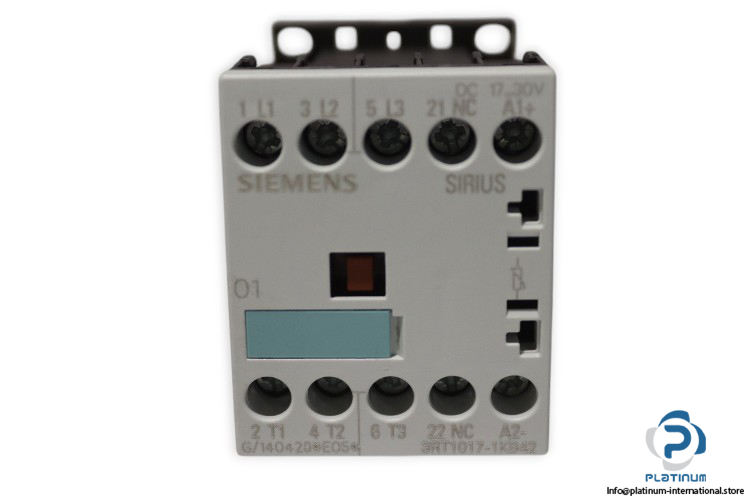

Siemens 3RT1017-1KB42 Power Contactor (Coupling Relay)
The Siemens 3RT1017-1KB42 is a compact and reliable power contactor designed for motor switching and industrial automation. With a robust current rating, multiple utilization categories, and compliance with international standards, it ensures safe and efficient operation in demanding environments.
Manufacturer: Siemens
Type: Power Contactor (Coupling Relay)
Model: 3RT1017-1KB42

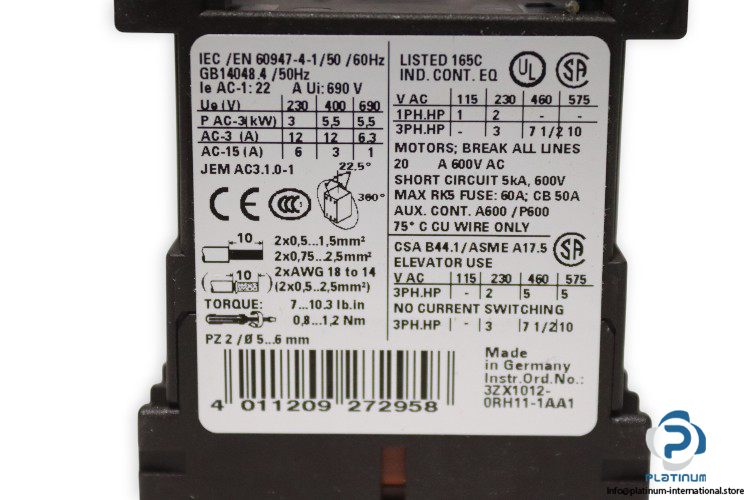

Code: JEM AC3.1.0-1, *01416912*, G/140428 802
Serial No.: 4 011209 272958

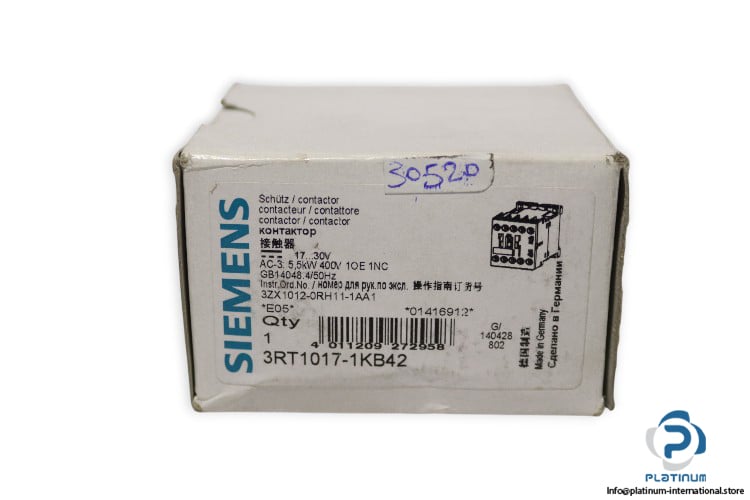

Order No.: 3ZX1012-ORH11-1AA1
Utilization Category:
AC-3 (3-phase motor ratings):
| Voltage Range | 17 ... 30 V |
| Rated Insulation Voltage (Ui) | 690 V |
| AC-1 | 22 A |
| 230 V | 4 kW / 12 A |
| 400 V | 5.5 kW / 12 A |
| 690 V | 7.5 kW / 6.3 A |
| Control / Auxiliary Ratings | AC-15 (6 A / 230 V) |
| Horsepower | @ 230 V (1PH/3PH) 2/3 HP |
| Breaking Capacity | Short circuit 5 kA (fuse protected, 600 V) |
| Maximum Fuse Rating | gG 60 A, CB 50 A |
| Auxiliary Contacts | A600 / P600 |
| Main Contacts | 3 NO |
| Auxiliary Contacts | 1 NC |
| Poles for Main Current Circuit | 3 |
| Wire Size / Terminals | 2 أ— 0.5 to 1.5 mmآ², 2 أ— 0.75 to 2.5 mmآ², 2 أ— AWG 18 to 14 |
| Torque | 0.8 to 1.2 Nm (7.0 to 10.3 lb.in) |
| Mounting Width | 22.5 mm |
| Standards | IEC/EN 60947-4-1, IEC/EN 60947-1, GB 14048.4 / 50 Hz |
| Ambient Temperature | -25 ... 60 آ°C |
| Dimensions | 57.5 أ— 45 أ— 72 mm |
