Siemens 3RT1054-1AF36 Power Contactor
New
In stock2 unitsReady to ship
Siemens Power Contactor 3RT10541AF36 with a control supply voltage of 110-127 V AC, rated current of 115 A at 400 V, and 55 kW power. Comes with 2 NO and 2 NC contacts, IP20 protection, and screw-type terminals.
1153RH1921-1DA1155aAC-3AuxiliaryconnectionContactorControlElectricalInsulationIP20kWmotorPowerRatedScrew-typeSiemensSiriussupplySwitchTerminalsvoltage
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

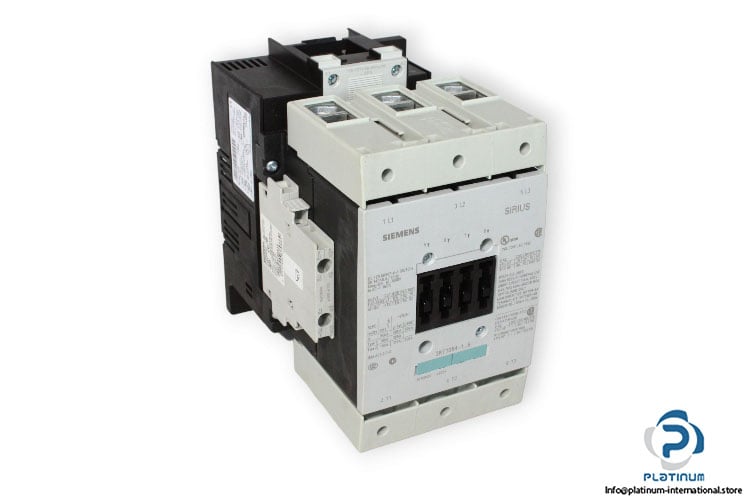

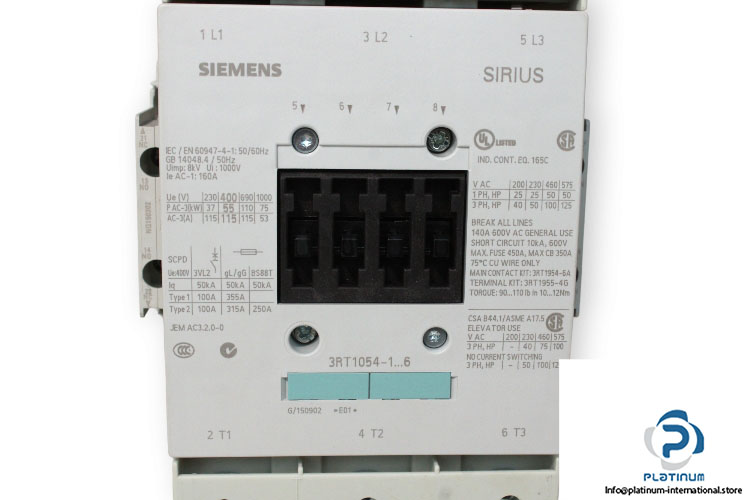

Siemens Power Contactor 3RT10541AF36
Siemens Power Contactor 3RT10541AF36 from the SIRIUS family is designed for high-performance motor control and switching applications. Built for heavy-duty usage, it offers reliable operation under demanding conditions with robust features and powerful performance. Below are the technical details for this product:
- Manufacturer: Siemens
- Type: Power Contactor
- MNR: 3RT10541AF36
- Family: SIRIUS
Technical Data:
- Size: S6
- Control Supply Voltage: 110 to 127 V AC
- Rated Insulation Voltage (Ui): 1000 V AC
- Rated Current Ie (AC-3) at 400V: 115 A
- Rated Current Ie (AC-1): 150 A
- Power: 55 kW at 400 V
- Rated Impulse Withstand Voltage (Uimp): 8 kV
- Power Pole Contact Composition: 2 Normally Open (NO) contacts, 2 Normally Closed (NC) contacts
- Degree of Protection: IP20
- Type of Electrical Connection: Screw-type terminals
- Dimensions (W x D x H): 172 x 120 x 170 mm
Accessories:

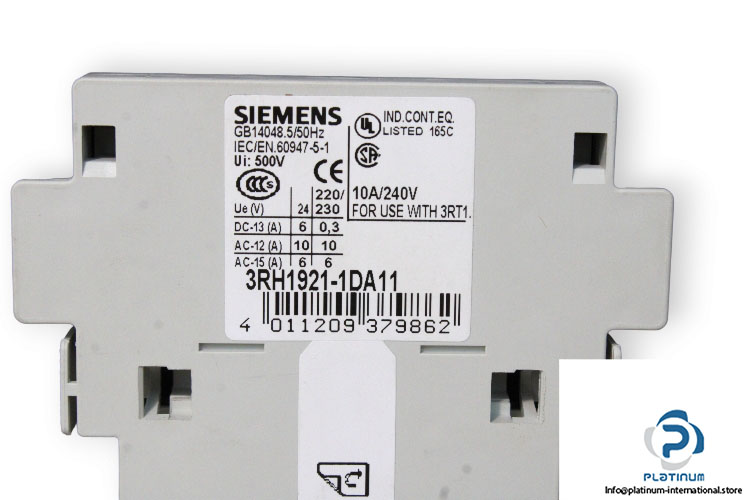

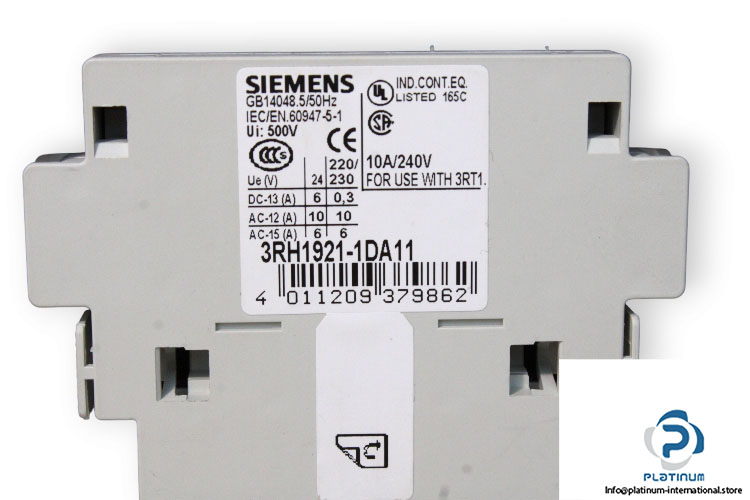

- SIEMENS 3RH1921-1DA11 FIRST LATERAL AUXILIARY SWITCH (MNR: 3RH19211DA11)
