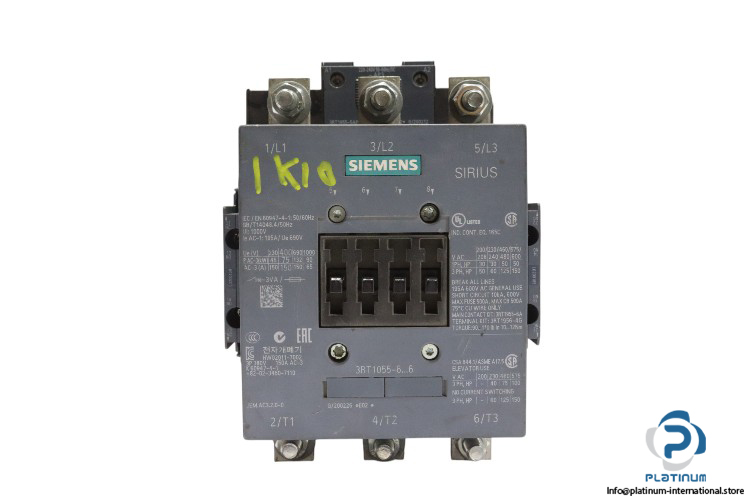

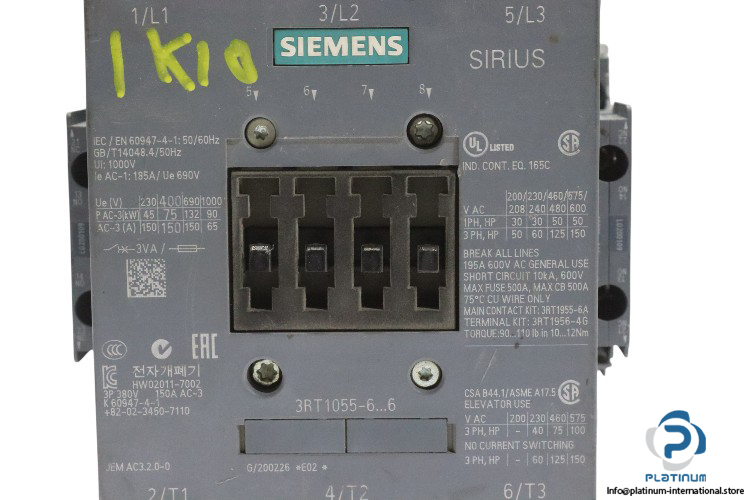

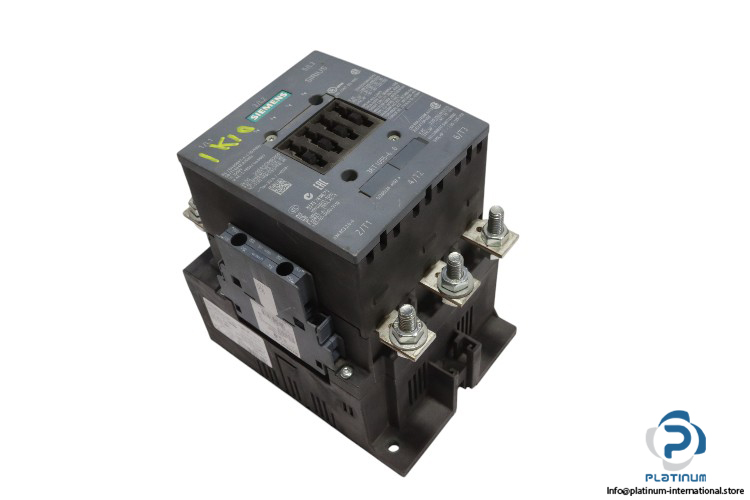

Siemens 3RT1055-6AP36 Power Contactor
Used
In stock1 unitReady to ship
Power Contactor
The Siemens 3RT1055-6AP36 SIRIUS power contactor is a size S6 3-pole device rated up to 1000V AC-3 with IP20 protection, designed for high-voltage industrial switching.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Siemens 3RT1055-6AP36 Power Contactor
The Siemens 3RT1055-6AP36 from the SIRIUS series is a high-performance power contactor designed for reliable switching of motors and power circuits. Engineered in size S6, it supports high operating voltages and offers robust environmental tolerance, making it ideal for demanding industrial applications.
Manufacturer: Siemens
Type: Power Contactor
Model: 3RT1055-6AP36
| Product Brand Name | SIRIUS |
| Product Type Designation | 3RT1 |
| Contactor Size | S6 |
| Operating Voltage at AC-3 (Rated Value Max) | 1000 V |
| Insulation Voltage of Main Circuit (Pollution Degree 3) | 1000 V |
| Insulation Voltage of Auxiliary Circuit (Pollution Degree 3) | 500 V |
| Protection Class IP | IP00; IP20 with box terminal/cover |
| Ambient Temperature Range | -25 / 60 °C |
| Number of Poles | 3 |
| Dimensions (H x W x D) | 172 x 120 x 170 mm |
