Siemens 3RT1065-6AP36 Contactor
New
In stock1 unitReady to ship

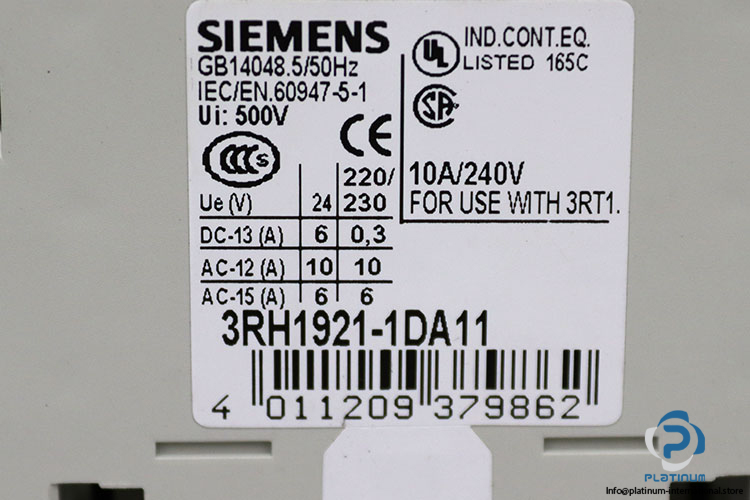

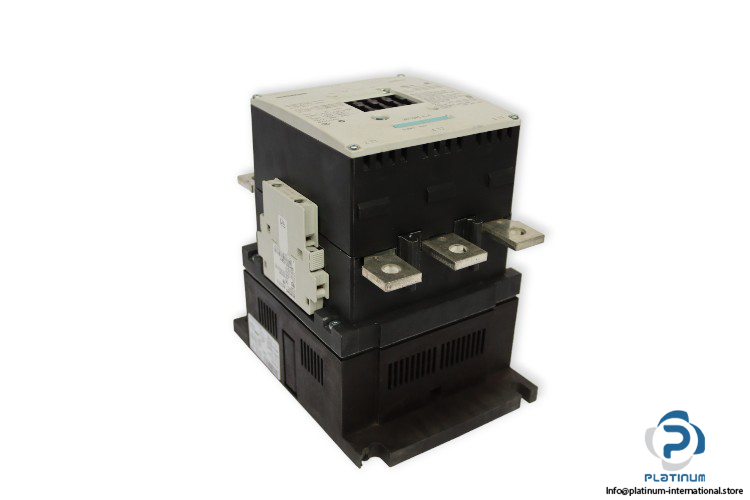

Contactor Siemens SIRIUS 3RT10656AP36 industrial contactor featuring 265 A AC-3 rated current, 132 kW at 400 V, 220–240 V AC/DC control voltage, and S10 frame size. Supplied with a Siemens 3RH1921-1DA11 auxiliary contact block for industrial motor control and electrical switching applications.
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| MNR | 3RT10656AP36 |
| Product type designation | 3RT1 |
| Product brand name | SIRIUS |

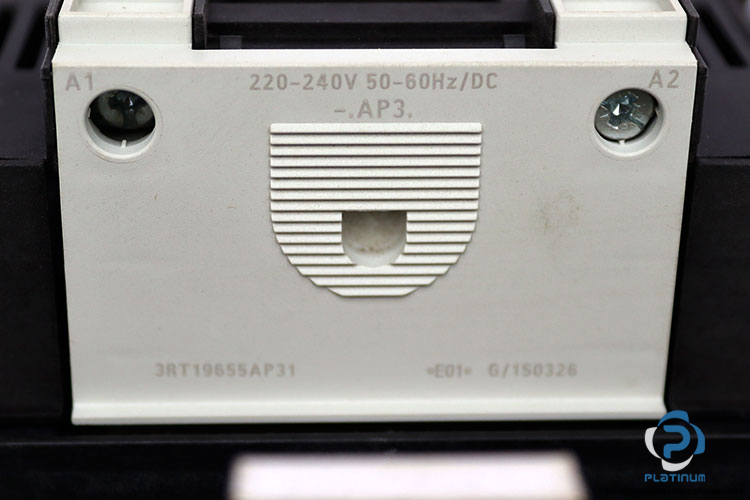

| Control supply voltage | 220 … 240 V AC/DC |
| Frequency | 50/60 Hz |
| Rated impulse with stand voltage (Uimp) | 8 kV |
| Insulation voltage (Ui) | 1000 V |
| Rated current Ie AC-1 | 330 A |
| Rated power AC-3 | 132 kW@400 V |
| Rated current AC-3 | 265 A@400 V |
| Power loss | for rated value of the current: at AC in hot operating state: 54 W, at AC in hot operating state per pole: 18 W |
| Contacts | 2NO,2NC |
| Size of contactor | S10 |
| Ambient temperature during operation | -25 … +60 °C |
| Protection Class | IP00; IP20 with box terminal/cover |
| Type of Electrical Connection | for main current circuit: Connection bar, for auxiliary and control circuit: screw-type terminals, at contactor for auxiliary contacts: Screw-type terminals |
| Standard | IEC / EN 60947-4-1 (50/60 Hz), GBT4D48-4 (50 Hz) |
| Diameter of holes | 11 mm |
| No. of holes | 1 |
| Dimensions | 210 x 145 x 202 mm |
| Condition | New |
| SKU | 1044073 |
| Weight | 6,4 |
