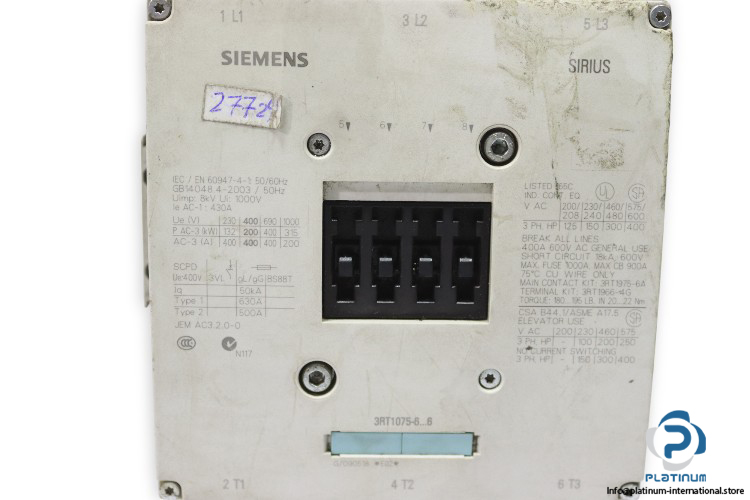

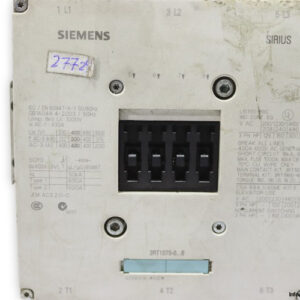

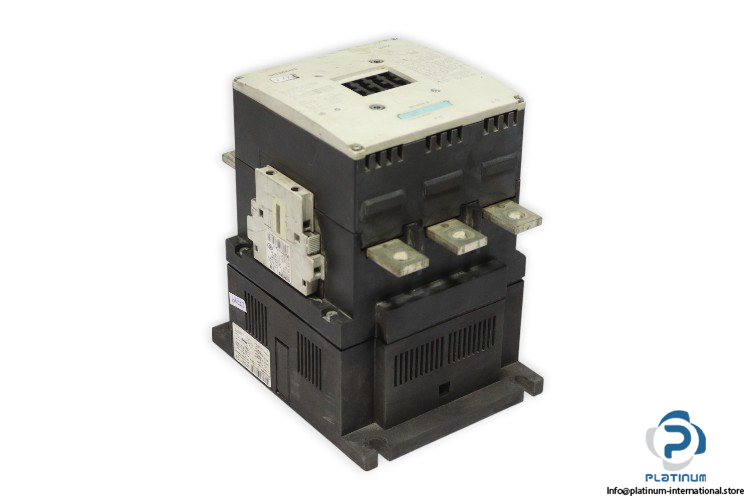

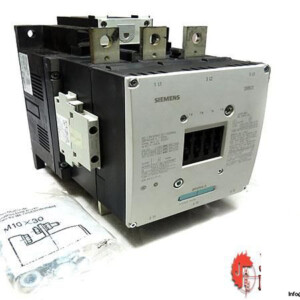

Siemens 3RT1075-6AP36 Power Contactor

Manufacturer: Siemens

Type: Power Contactor

Model: 3RT1075-6AP36

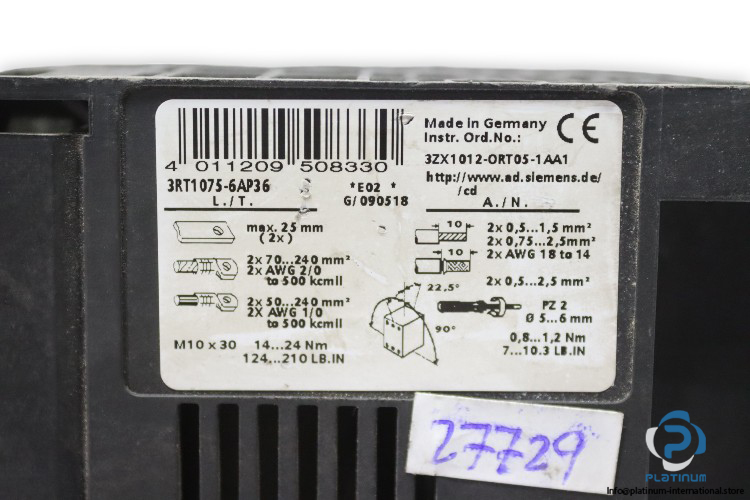

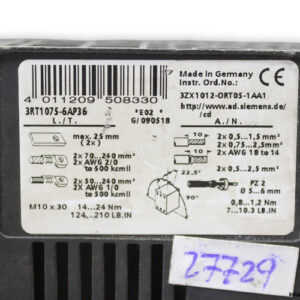

Part Number: 3ZX1012-ORT05-1AA1

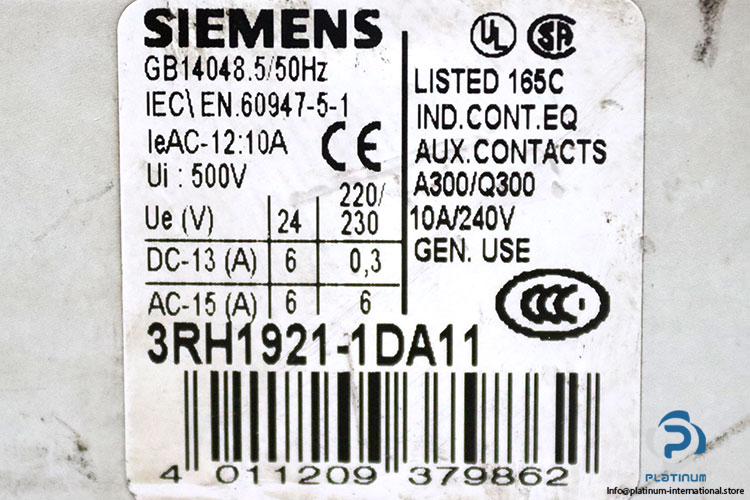

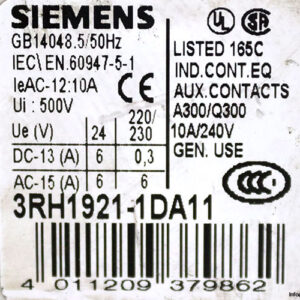

MNR: 3RH1921-1DA11

Product Brand Name: SIRIUS Control

• Control Supply Voltage: 220 … 240 V
• Insulation Voltage:
  • Main Circuit (Pollution Degree 3): 1,000 V
  • Auxiliary Circuit (Pollution Degree 3): 500 V
• Surge Voltage Resistance:
  • Main Circuit: 8 kV
  • Auxiliary Circuit: 6 kV
• Maximum Permissible Voltage: 690 V
• Frequency: 50“60 Hz
• Contact Configuration: 2NO + 2NC
• Operational Current at AC-12 (Max): 10 A
• Ambient Temperature Range: -25°C to 60°C
• Contactor Size: S12
• Dimensions (H x W x D): 214 x 160 x 225 mm

The Siemens SIRIUS 3RT1075-6AP36 power contactor is engineered for durability and efficiency in industrial environments. With high surge voltage resistance, broad operating temperature range, and a compact form factor, it’s ideal for reliable control in a wide range of applications.
