Siemens 3RT2015-1AF01 Power Contactor
New
In stock2 unitsReady to ship
Power Contactor
A compact and reliable SIEMENS SIRIUS power contactor designed for efficient switching of motors and industrial loads, offering dependable performance and enhanced electrical durability.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

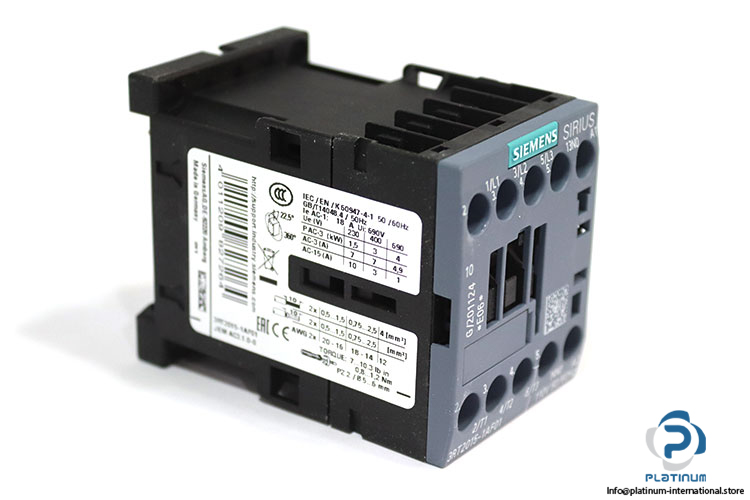

SIEMENS 3RT2015-1AF01 Power Contactor
A high-performance SIRIUS series power contactor designed for reliable switching of motors and industrial loads. Engineered for long service life, stable operation, and compatibility with a wide range of automation systems. Manufacturer: SIEMENS
Type: Power Contactor
MRN: 3RT2015-1AF01
Code: 07514556
Serial No.: 4011209 827264
3-Pole
| Supply Voltage | 110 V AC, 50/60 Hz |
| Auxiliary Contacts | 1 NO |
| Product Brand Name | SIRIUS |
| Product Designation | Power Contactor |
| Product Type Designation | 3RT2 |
| Contactor Size | S00 |
| Power Loss (AC Hot State) | 0.6 W |
| Power Loss Per Pole | 0.2 W |
| Typical Power Loss Without Load | 1.1 W |
| Power Loss Calculation | Quadratic, depending on pole |
| Main Circuit Insulation Voltage (Pollution Degree 3) | 690 V |
| Auxiliary Circuit Insulation Voltage (Pollution Degree 3) | 690 V |
| Main Circuit Surge Voltage Resistance | 6 kV |
| Auxiliary Circuit Surge Voltage Resistance | 6 kV |
| Max Permissible Voltage for Coil/Main Contact Separation | 400 V (EN 60947-1) |
| Shock Resistance (Rectangular Pulse, AC) | 6.7g / 5 ms, 4.2g / 10 ms |
| Shock Resistance (Sine Pulse, AC) | 10.5g / 5 ms, 6.6g / 10 ms |
| Ambient Temperature (Operation) | -25 / +60 °C |
| Operating Power AC-3 at 230 V | 1.5 kW |
| Operating Power AC-3 at 400 V | 3 kW |
| Protection Class (Front) IEC 60529 | IP20 |
| Touch Protection | Finger-safe for vertical contact from the front |
| Dimensions | 57.5 x 45 x 75 mm |
