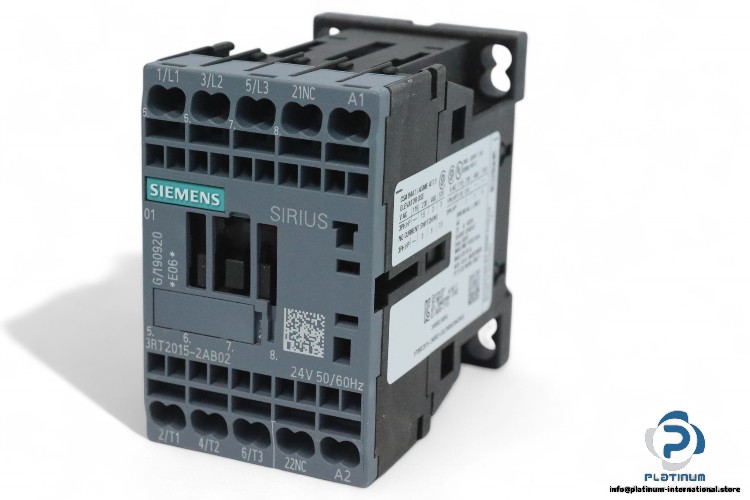

Siemens 3RT2015-2AB02 Power Contactor

Manufacturer:  Siemens
Type: POWER CONTACTOR
Part No.: 3RT2015-2AB02

Size of contactor: S00
Control supply voltage: 24 V AC @ 50-60 Hz
Frequency: 50/60 Hz
Surge Voltage Resistance: 6 kV
Rated insulation voltage Ui: 690 V
Maximum RK5 fuse: 45 A
Short circuit: 5 kA / 600 V
Operating current (AC-1): 18 A @ 400 V
Operating current (AC-3):
400 V rated value 7 A
690 V rated value 4.9 A
Operational current at AC-12 maximum: 10 A
Number of poles for main current circuit: 3
Number of NO contacts for main contacts: 3
Number of NC contacts for auxiliary contacts instantaneous contact: 1
Horse power@460 – 575 V (P AC-3):  3 HP
Horse power@230 V (P AC-3): 1.5 HP
Operating Power (AC-3):
400 V rated value 3 kW
690 V rated value 4 kW
Operating temperature: -25 … 60°C
Protection class: IP20
Type of electrical connection: Spring-type terminals
Dimensions: 70 x 45 x 73 mm
