Siemens 3RT2016-1AF02 Power Contactor
Used
In stock2 unitsReady to ship
Siemens Power Contactor 3RT2016-1AF02 with control voltage of 110 V AC, operational current of 22 A, and insulation voltage of 690 V. Designed for efficient control in industrial applications.
1“1020224690aACCircuitconnectionContactorControlCurrentElectricalIndustrialInsulationIP20kWOperatingoperationalPowerScrew-typeShortSiemensTerminalsVvoltage
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

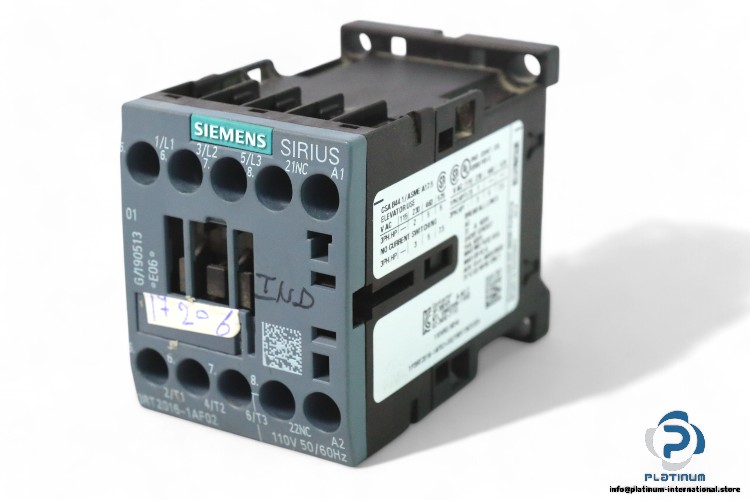

Siemens Power Contactor 3RT2016-1AF02
Siemens Power Contactor 3RT2016-1AF02 is a reliable power contactor designed for use in industrial electrical systems. It ensures efficient control of electrical circuits, providing high performance with a wide operating temperature range and excellent protection. Below are the key technical specifications:
- Manufacturer: Siemens
- Type: Power Contactor
- MNR: 3RT2016-1AF02
Technical Data:
- Size: S00
- Control Voltage: 110 V AC, 50/60 Hz
- Insulation Voltage (Ui): 690 V
- Operational Current at AC-1: 22 A
- Operating Voltage AC-3, AC-3e: 690 V
- Operating Power at 400 V: 4 kW
- Short Circuit: 20 A, 600 V, 5 kA
- Electrical Connection: Screw-type terminals
- Auxiliary Contacts: 1 NC
- Number of Poles for Main Current Circuit: 3
- Operating Temperature: -25 / +60 °C
- Degree of Protection: IP20
- Dimensions: 58 x 45 x 73 mm
