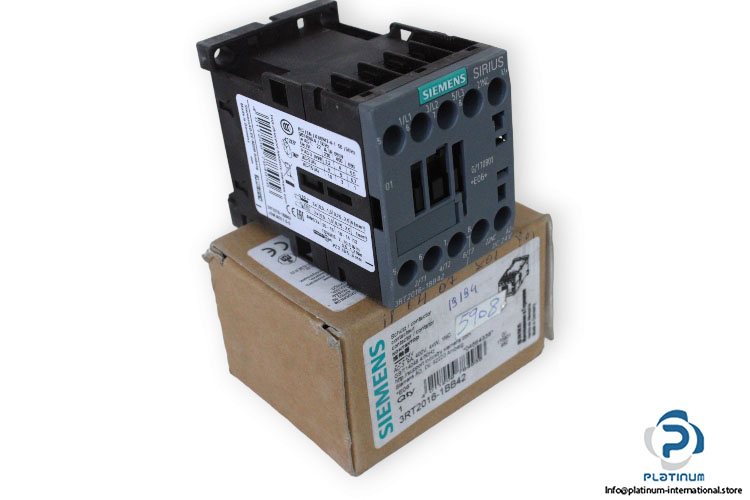

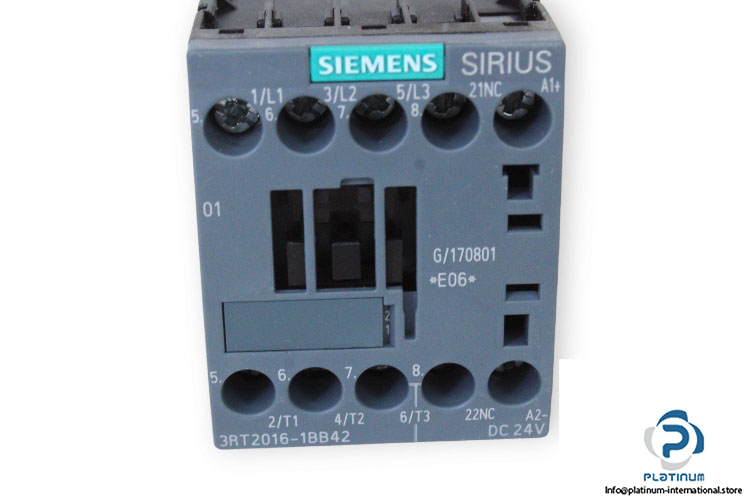

Siemens 3RT2016-1BB42 Contactor

Manufacturer: SIEMENS
Type: Contactor
Model: 3RT 2016-1BB42

Size of contactor: S00
Insulation voltage rated value: 690 V
Surge voltage resistance rated value: 6 kV
maximum permissible voltage: 400 V
Protection class IP: IP20
Rated power at 400 VAC: 4 kW
Degree of pollution: 3
Number of NO contacts for main contacts: 3
Operating voltage
● at AC-3 rated value maximum: 690 V
Operating current at AC-1 at 400 V at ambient temperature 40 °C rated value: 22 A
Control supply voltage at DC rated value: 24 V
Operating range factor control supply voltage rated
value of magnet coil at DC: 0.8 … 1.1
Closing delay: at DC 30 … 100 ms
Opening delay: at DC 7 … 13 ms
Arcing time: 10 … 15 ms
Dimensions: 58 x 45 x 73 mm
