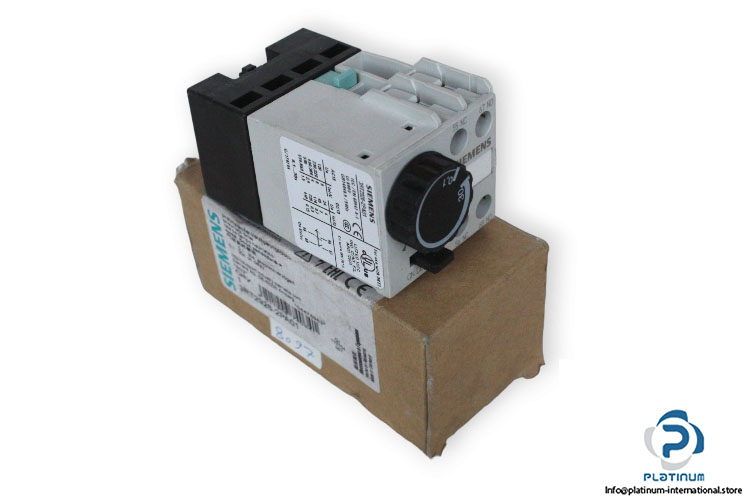

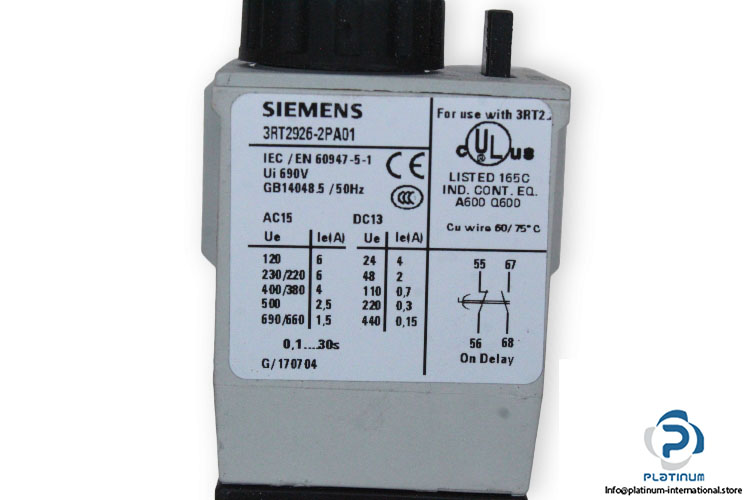

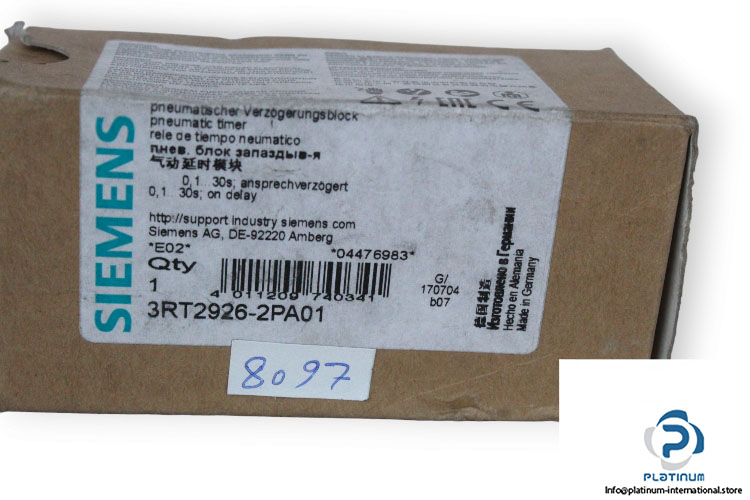

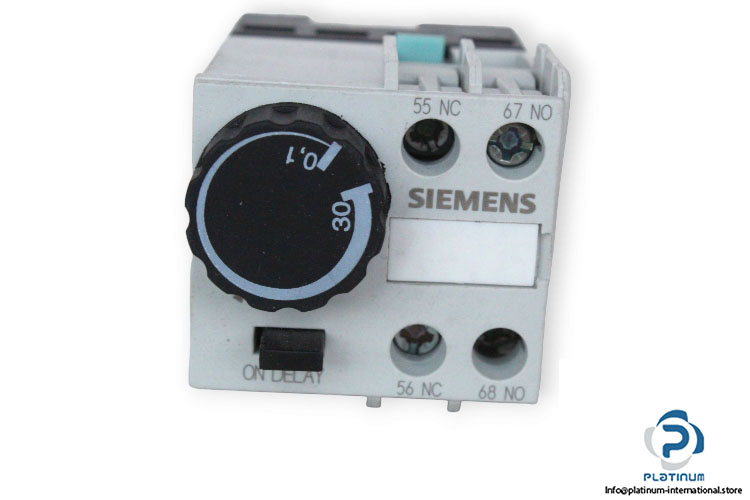

Siemens 3RT2926-2PA01 Pneumatic Time Relay

Manufacturer: SIEMENS
Type: Pneumatic Time Relay
Model: 3RT2926-2PA01

Brand Name: SIRIUS
Used for: For Motor Contactors (3RT2.2) Size S0
Adjustable Delay Time: 0.1 … 30 s
Rated Insulation Voltage: 690 V
Operating Frequency: 50 Hz
Rated Operational Current:
at 500 V: 2.5 A
at 690 V: 1.5 A
Delay Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC)
Electrical Connection: Screw-Type Terminals
Protection Class: IP20
Operation Temperature: -25 … 60 °C
Dimensions: 44.6 x 45 x 83.5 mm
