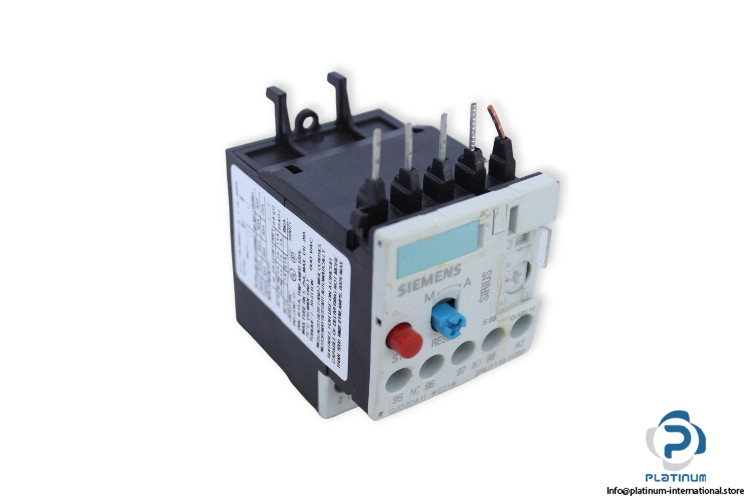

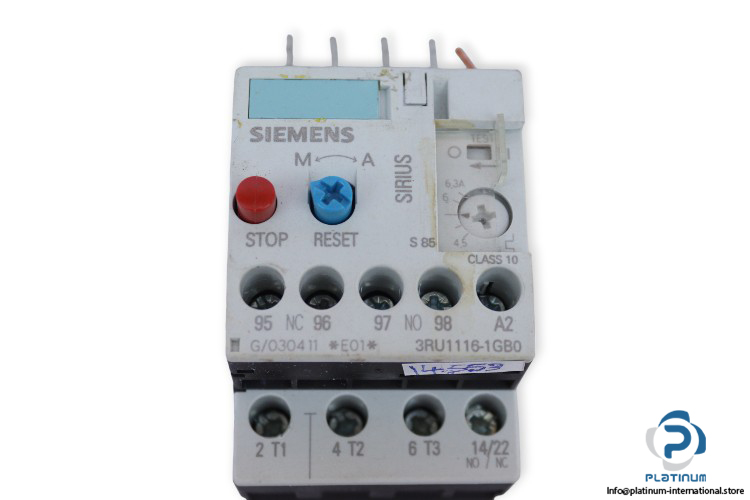

Siemens 3RU1116-1GB0 Overload Relay

Manufacturer: Siemens
Type: Overload Relay
MNR: 3RU11161GB0
Brand name: SIRIUS

Size: S00
Insulation voltage Ui: 690 V AC
Power loss: 6.6 W
Surge voltage resistance rated value: 6 kV
Adjustable current response range: 4.5 … 6.3 A
Contacts type: 1 Normally open, 1 Normally closed
Electrical connection: screw-type terminals
No. of poles: 3
Standard: IEC/EN 60947-4-1
Trip class: CLASS 10
Protection degree: IP20
Operating temperature: -20 … 70°C
Dimensions: 87 x 45 x 78 mm
