Siemens 3RV1011-0AA15 Circuit Breaker
New
In stock2 unitsReady to ship

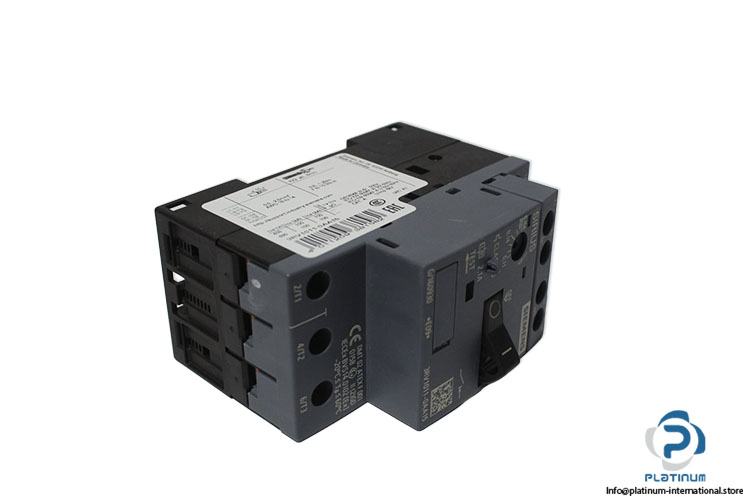

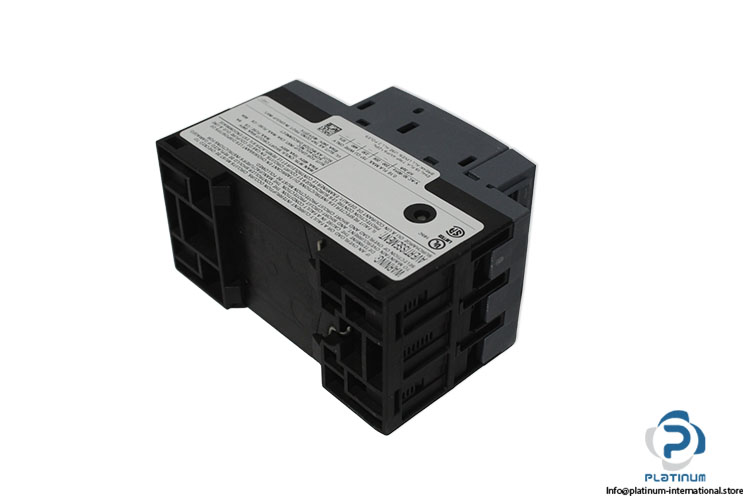

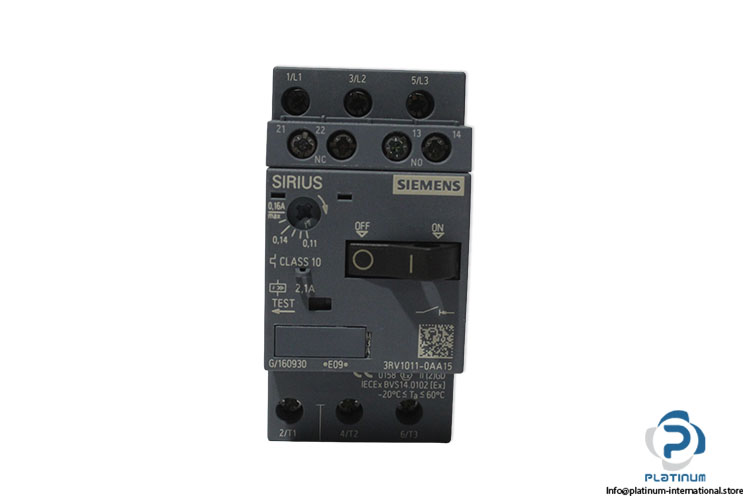

The SIEMENS SIRIUS 3RV1011-0AA15 Circuit Breaker is a compact 3-pole motor protection circuit breaker featuring a 0.16 A rated current, thermal overload release, Class 10 tripping, DIN rail mounting, and a 20–690 V operating voltage range for reliable industrial motor protection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Size | S00 |
| Brand Name | SIRIUS |
| Rated Operational Voltage (Ue) | 20 ... 690 V |
| Rated Operational Current (In) | 0,16A |
| Frequency | 50 … 60 Hz |
| Rated Insulation Voltage (Ui) | 690 V AC |
| surge voltage resistance | 6Kv |
| number of NC contacts for auxiliary contacts | 1N/O, 1N/C |
| Rated Operational Power | (AC-3/AC-3e: 400 V: 0,04 kW) |
| trip class | CLASS 10 |
| design of the overload release | thermal |
| Power Loss | (at AC in hot operating state 5.5 W), (at AC in hot operating state per pole 1.8 W) |
| No. of Poles | 3-Pole |
| Mounting Position | Any |
| Fastening Method | Screw And Snap-On Mounting Onto 35 Mm Din Rail |
| Protection Class | IP20 |
| Ambient Temperature | -25 … 60 °C |
| Dimensions | 90 x 45 x 75 mm |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093471 |
| Weight | 0,24 |
